136704 - Dodge - TB-SCEZ-012-PSS
Regular price
$232.20 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

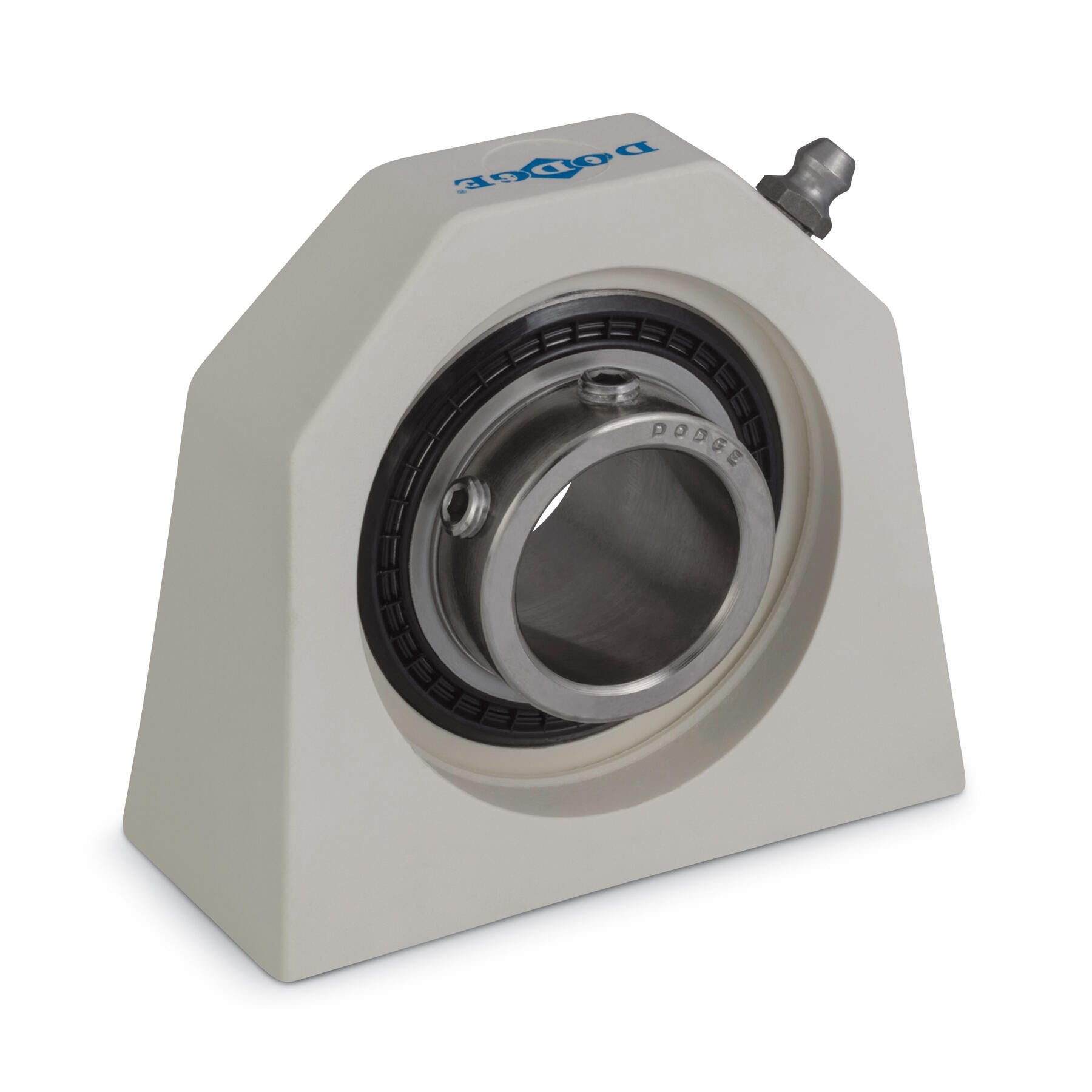

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
136704 - Dodge - TB-SCEZ-012-PSS
TB-SCEZ-012-PSS
Technical Specifications
| Ball Bearing Series | 204 Series |
| Base to Center Height | 1.2300 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Ball |
| Bolt Diameter | 0.3750 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 2.0000 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 2.0000 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.2300 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/washdown/ultra_kleen/tb_scez_pss_hi_asmtab.prj&varset={SERIES=204},{SS=3/4},{PN=136704},{DESCRIPTION=TB-SCEZ-012-PSS},{W=0.60},{A=1.23},{B=3.25},{C=1.48},{D=2.00},{J=2.65},{L=1.11},{M=1.31},{N=0.40},{R=3/8-16},{S=0.73}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 2464 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease FM222 |
| Housing Construction | Solid |
| Housing Material | Polymer |
| Housing Type | Tapped-Base Pillow Block |
| Insert Material | Stainless Steel |
| Lubrication | Grease |
| Maximum Speed | 5000 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 0.7500 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 1482 |
| Static Load Capacity (Unit) | POUND_FORCE |
