136702 - Dodge - P2B-SCEZ-111-PSS
Regular price
$318.06 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

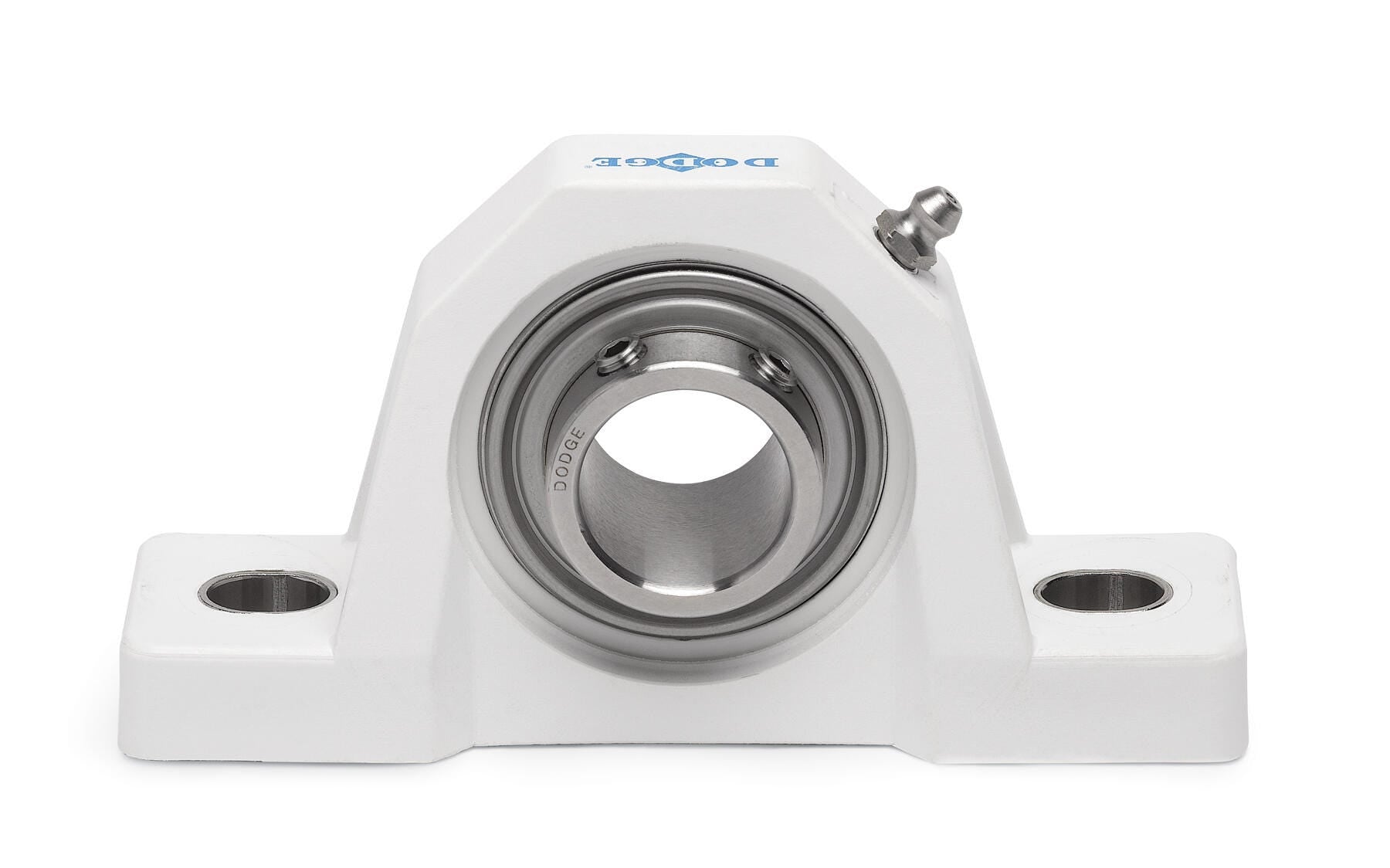

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
136702 - Dodge - P2B-SCEZ-111-PSS
P2B-SCEZ-111-PSS
Technical Specifications
| Ball Bearing Series | 209 Series |
| Base to Center Height | 2.1300 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Ball |
| Bolt Diameter | 0.5000 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 5.9600 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 5.4200 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.9400 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/washdown/ultra_kleen/p2b_scez_pss_hi_asmtab.prj&varset={SERIES=209},{SS=1-11/16},{PN=136702},{DESCRIPTION=P2B-SCEZ-111-PSS},{W=2.34},{A=1.94},{B=7.20},{C=2.10},{DMIN=5.42},{DMAX=5.96},{F=1/2},{G=0.88},{H=0.84},{J=4.31},{L=2.22},{M=2.13},{R=0.75},{S=1.19}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 6707 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease FM222 |
| Housing Construction | Solid |
| Housing Material | Polymer |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Stainless Steel |
| Lubrication | Grease |
| Maximum Speed | 3000 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 1.6875 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 4906 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | LD-20,TS-250 |
