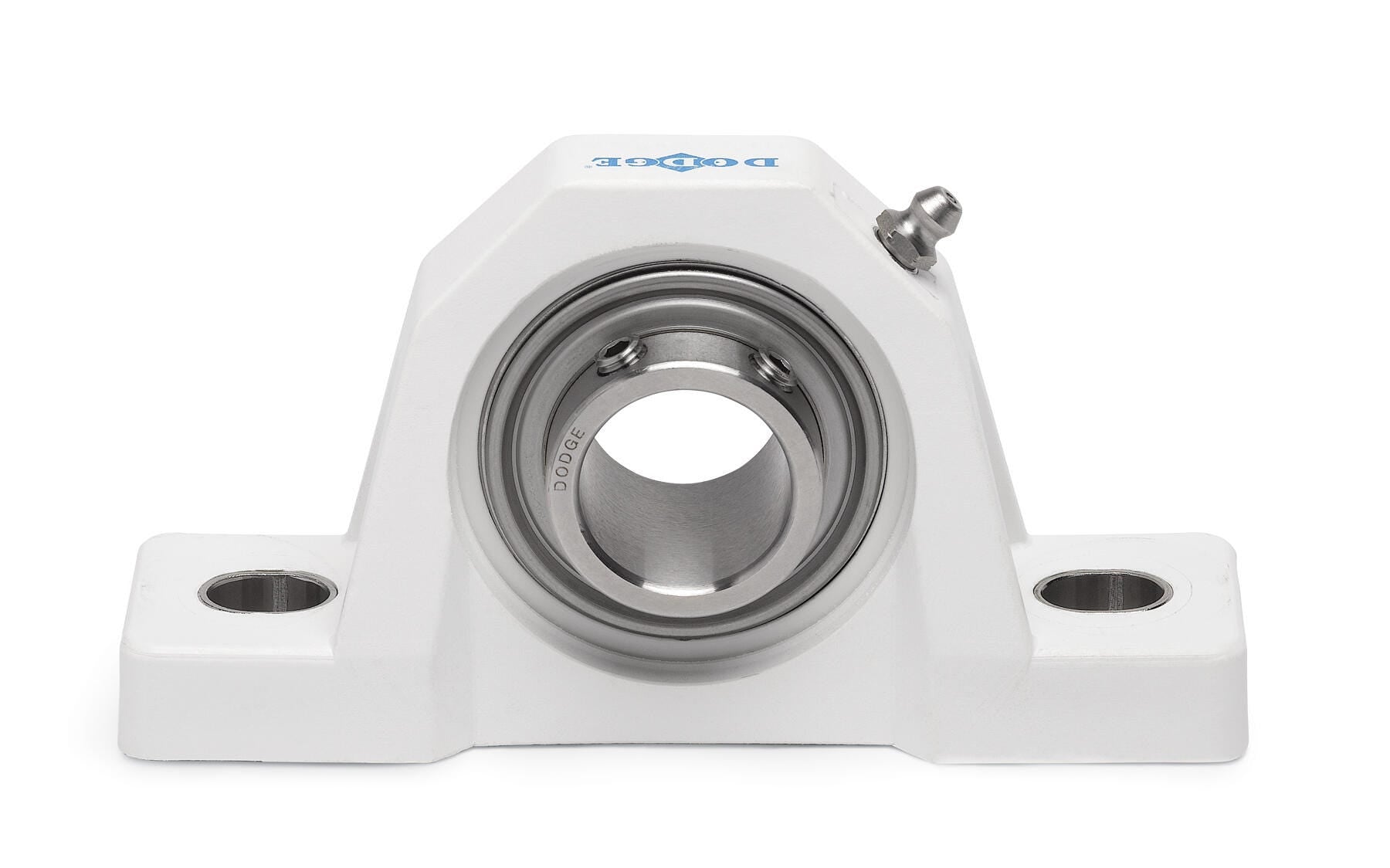

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
136698 - Dodge - P2B-SCUEZ-104S-PSS
P2B-SCUEZ-104S-PSS
Technical Specifications
| Ball Bearing Series | 206 Series |
| Base to Center Height | 1.6900 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Ball |
| Bolt Diameter | 0.5000 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 4.8800 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 4.6000 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.5200 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/washdown/ultra_kleen/p2b_scez_pss_hi_asmtab.prj&varset={SERIES=206},{SS=1-1/4},{PN=136698},{DESCRIPTION=P2B-SCUEZ-104S-PSS},{W=1.11},{A=1.52},{B=6.30},{C=1.77},{DMIN=4.60},{DMAX=4.88},{F=1/2},{G=0.73},{H=0.70},{J=3.34},{L=1.57},{M=1.69},{R=0.58},{S=0.94}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 3713 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease FM222 |
| Housing Construction | Solid |
| Housing Material | Polymer |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Stainless Steel |
| Lubrication | Grease |
| Maximum Speed | 4500 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 1.2500 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 2538 |
| Static Load Capacity (Unit) | POUND_FORCE |
