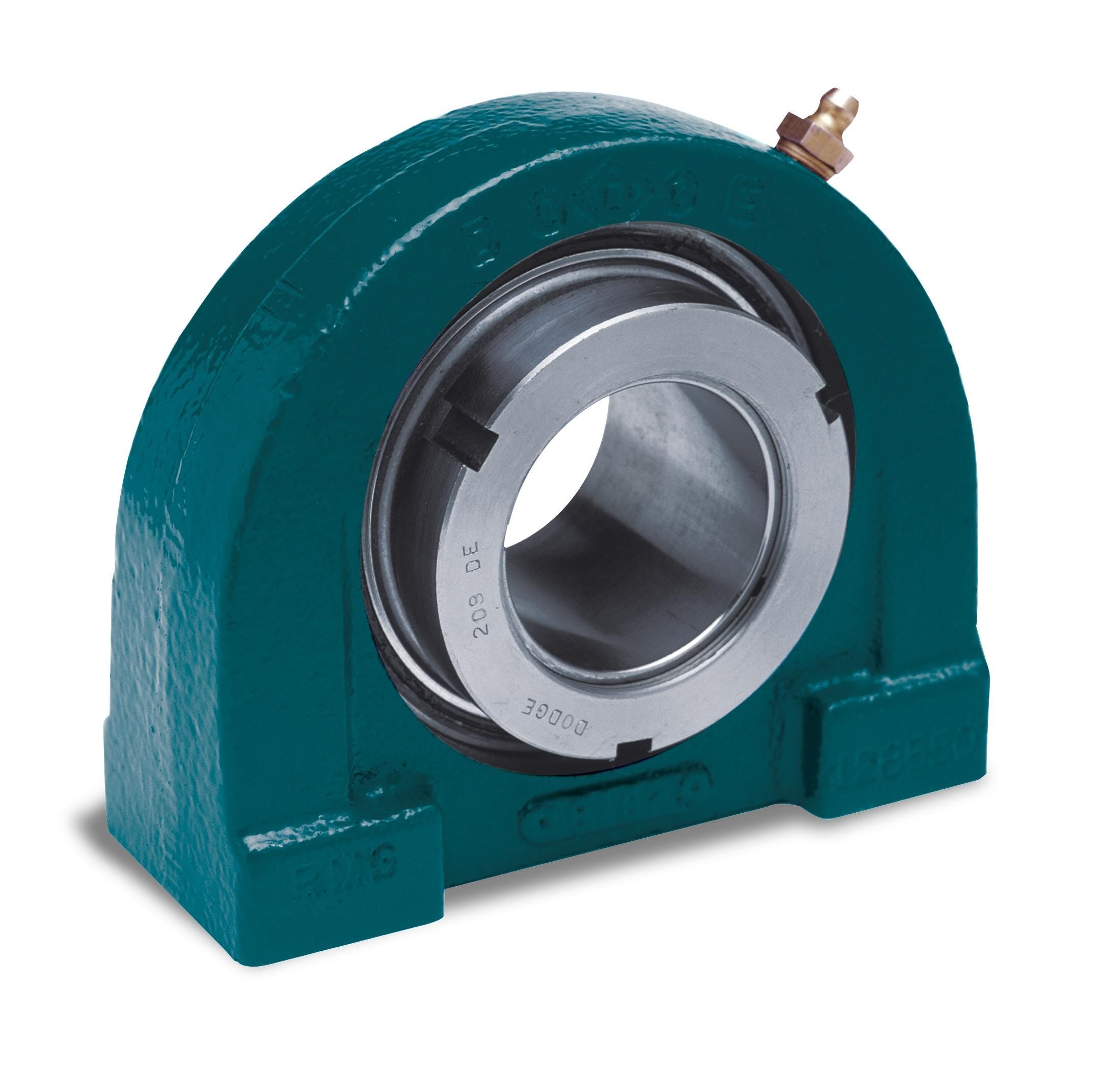

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
136370 - Dodge - TB-GT-45M
TB-GT-45M
Technical Specifications
| Ball Bearing Series | 209 Series |
| Base to Center Height | 2.1300 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Ball |
| Bolt to Bolt (Max) | 3.7500 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 3.7500 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.9400 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/adapter_mount_grip_tight/metric/tb_gt_asmtab.prj&varset={SERIES=209},{SS=45},{PN=136370},{DESCRIPTION=TB-GT-45M},{A=46.8},{B=127.0},{C=50.8},{D=95.3},{J=108.0},{L=67.9},{M=54.0},{N=19.1},{R=M12 },{S=30.2},{Z=29.4}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 7891 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Tapped-Base Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 5300 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 45.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Static Load Capacity | 4906 |
| Static Load Capacity (Unit) | POUND_FORCE |
