136367 - Dodge - TB-GT-30M
Regular price
$142.60 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

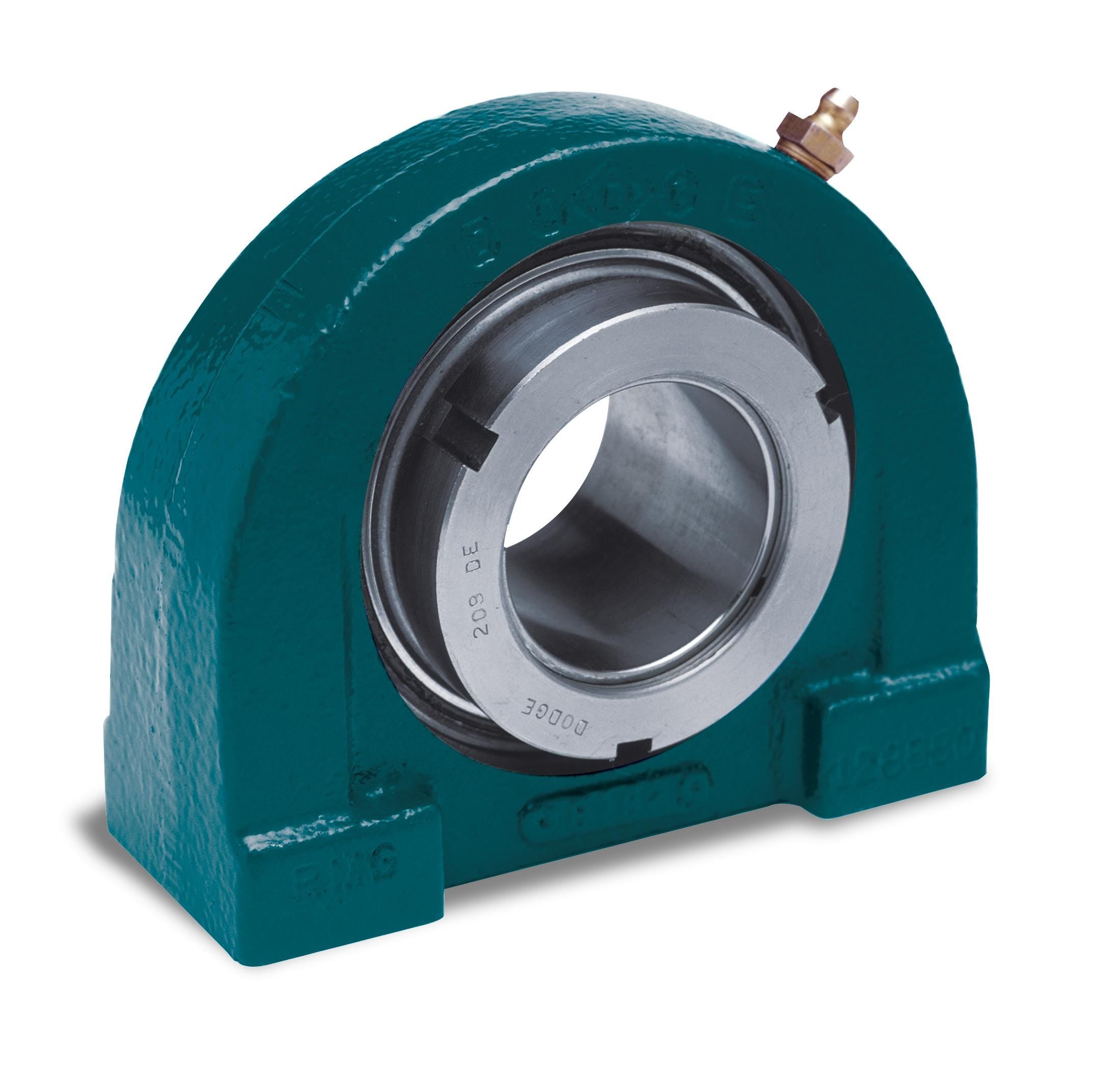

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
136367 - Dodge - TB-GT-30M
TB-GT-30M
Technical Specifications
| Ball Bearing Series | 206 Series |
| Base to Center Height | 1.6900 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Ball |
| Bolt to Bolt (Max) | 3.0000 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 3.0000 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.5200 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/adapter_mount_grip_tight/metric/tb_gt_asmtab.prj&varset={SERIES=206},{SS=30},{PN=136367},{DESCRIPTION=TB-GT-30M},{A=40.9},{B=101.6},{C=38.1},{D=76.2},{J=85.7},{L=50.8},{M=42.9},{N=15.9},{R=M10 },{S=27.4},{Z=26.2}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 4368 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Tapped-Base Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 7500 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 30.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Static Load Capacity | 2538 |
| Static Load Capacity (Unit) | POUND_FORCE |
