136365 - Dodge - TB-GT-20M
Regular price
$115.32 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

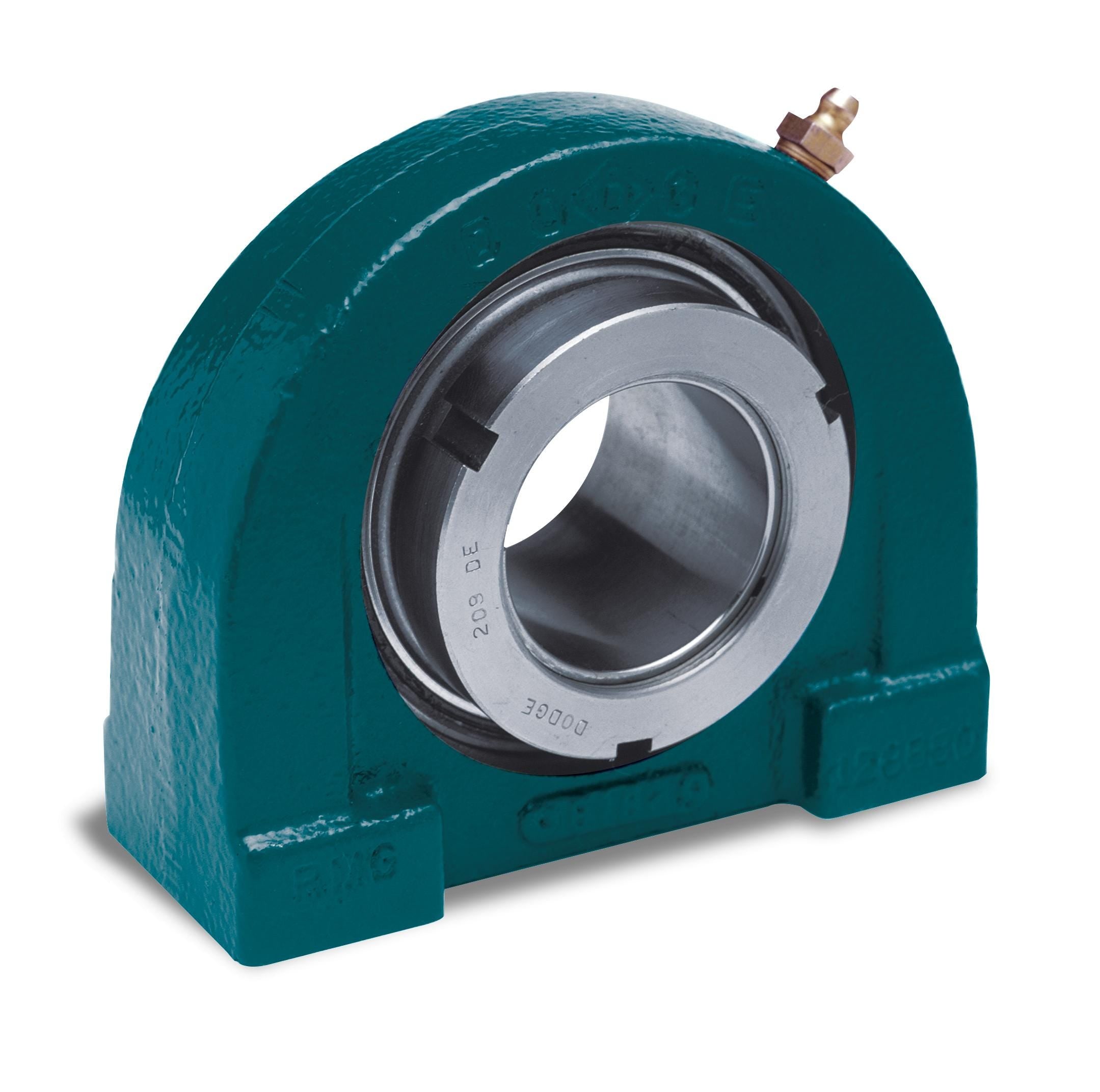

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
136365 - Dodge - TB-GT-20M
TB-GT-20M
Technical Specifications
| Ball Bearing Series | 204 Series |
| Base to Center Height | 1.3100 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Ball |
| Bolt to Bolt (Max) | 2.0000 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 2.0000 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.2300 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/adapter_mount_grip_tight/metric/tb_gt_asmtab.prj&varset={SERIES=204},{SS=20},{PN=136365},{DESCRIPTION=TB-GT-20M},{A=37.3},{B=73.0},{C=38.1},{D=50.8},{J=65.1},{L=38.1},{M=33.3},{N=12.7},{R=M8 },{S=25.0},{Z=25.0}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 2899 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Tapped-Base Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 10000 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 20.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Static Load Capacity | 1482 |
| Static Load Capacity (Unit) | POUND_FORCE |
