136295 - Dodge - FC-GTM-85M
Regular price
$1,191.02 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

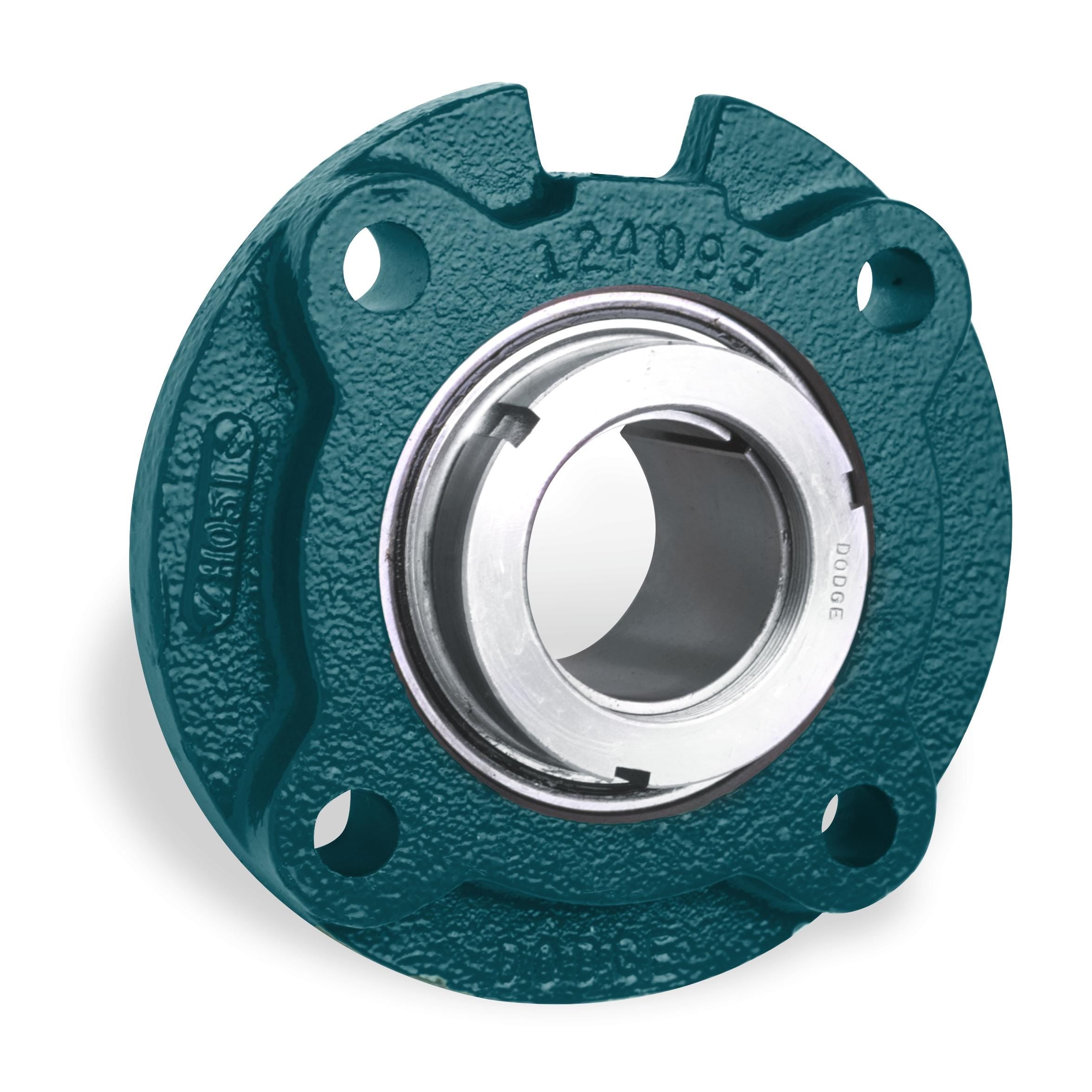

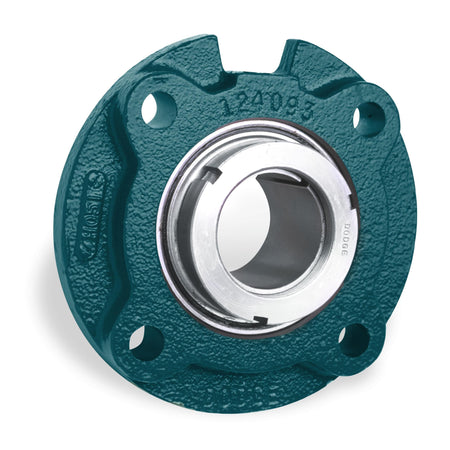

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
136295 - Dodge - FC-GTM-85M
FC-GTM-85M
Technical Specifications
| Ball Bearing Series | 218 Series |
| Bearing Type | Ball |
| Bolt Circle | 8.6300 |
| Bolt Circle (Unit) | INCH |
| Bore Length | 2.8000 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/adapter_mount_grip_tight/metric/fc_gtm_hm_asmtab.prj&varset={SERIES=218},{SS=85},{PN=136295},{DESCRIPTION=FC-GTM-85M},{PNSL=129510},{DESCRIPTIONSL=FC-GT-18},{PNA=136571},{DESCRIPTIONA=AN-GTM-18-85M-D},{W=17.8},{A=71.1},{B=260.4},{C=90.7},{D=212.9},{E=28.7},{F=M18},{G=62.0},{H=41.4},{K=187.33/187.27},{L=131.8},{Z=61.5},{CAPS=13940},{CAPD=21451}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 21451 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Piloted Flange |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 2600 |
| Maximum Speed (Unit) | RPM |
| Pilot Depth | 1.1300 |
| Pilot Depth (Unit) | INCH |
| Pilot Diameter | 7.3750 |
| Pilot Diameter (Unit) | INCH |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 85.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Static Load Capacity | 16641 |
| Static Load Capacity (Unit) | POUND_FORCE |
