136294 - Dodge - FC-GTM-75M
Regular price
$654.72 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

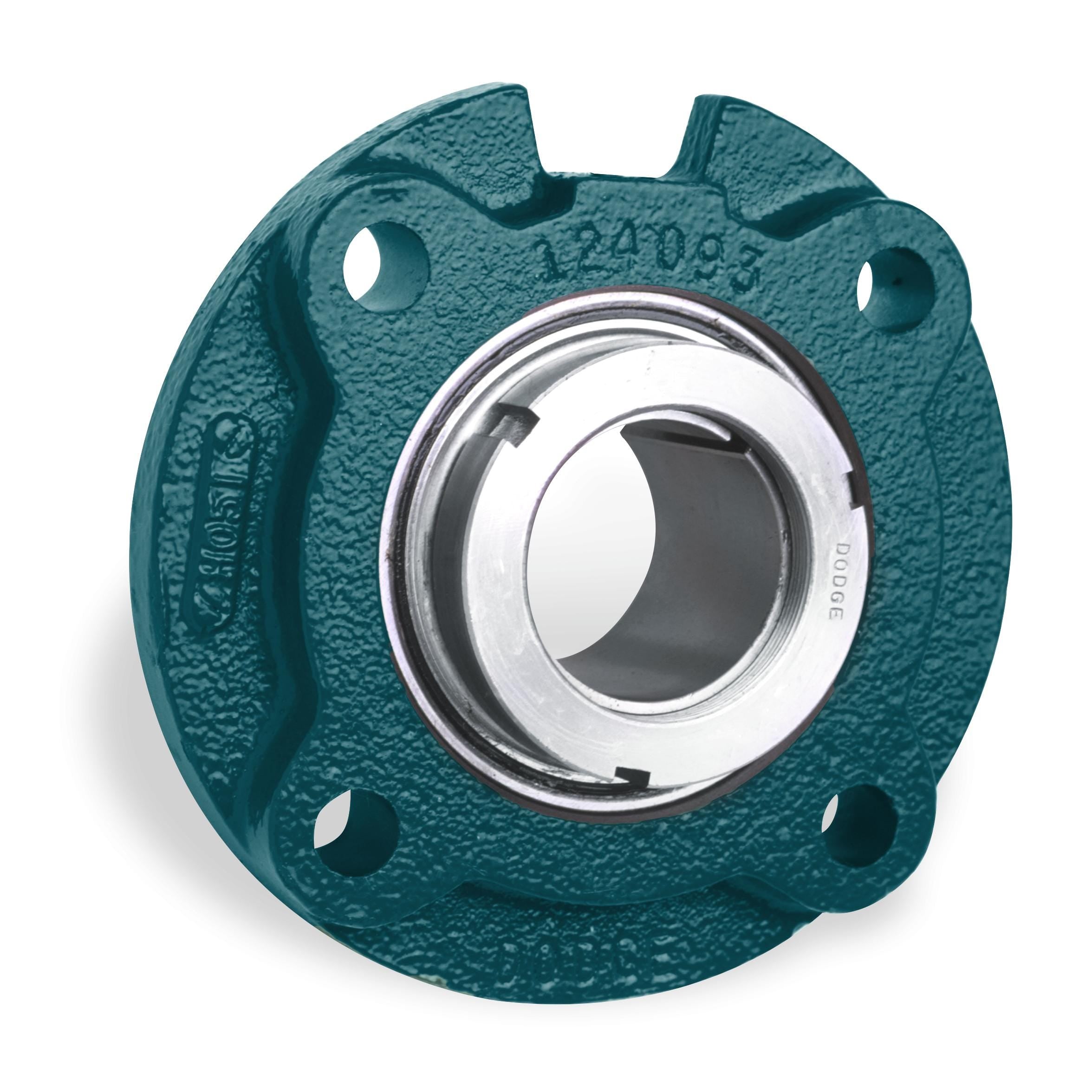

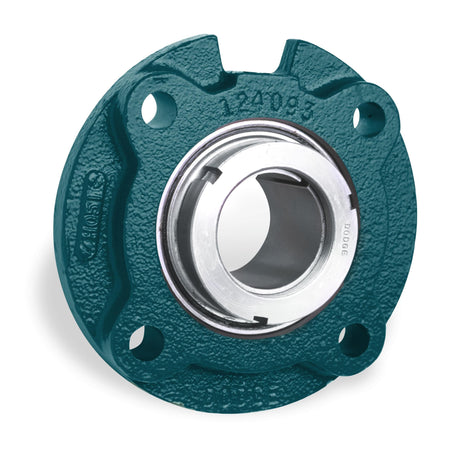

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
136294 - Dodge - FC-GTM-75M
FC-GTM-75M
Technical Specifications
| Ball Bearing Series | 216 Series |
| Bearing Type | Ball |
| Bolt Circle | 7.5000 |
| Bolt Circle (Unit) | INCH |
| Bore Length | 2.7000 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/adapter_mount_grip_tight/metric/fc_gtm_hm_asmtab.prj&varset={SERIES=216},{SS=75},{PN=136294},{DESCRIPTION=FC-GTM-75M},{PNSL=129509},{DESCRIPTIONSL=FC-GT-16},{PNA=136570},{DESCRIPTIONA=AN-GTM-16-75M-D},{W=12.9},{A=68.6},{B=222.3},{C=84.6},{D=190.5},{E=31.8},{F=M16},{G=52.8},{H=30.2},{K=161.93/161.87},{L=119.1},{Z=52.1},{CAPS=11015},{CAPD=17407}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 17407 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Piloted Flange |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 3000 |
| Maximum Speed (Unit) | RPM |
| Pilot Depth | 1.2500 |
| Pilot Depth (Unit) | INCH |
| Pilot Diameter | 6.3750 |
| Pilot Diameter (Unit) | INCH |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 75.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Static Load Capacity | 13102 |
| Static Load Capacity (Unit) | POUND_FORCE |
