136293 - Dodge - FC-GTM-65M
Regular price
$476.16 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

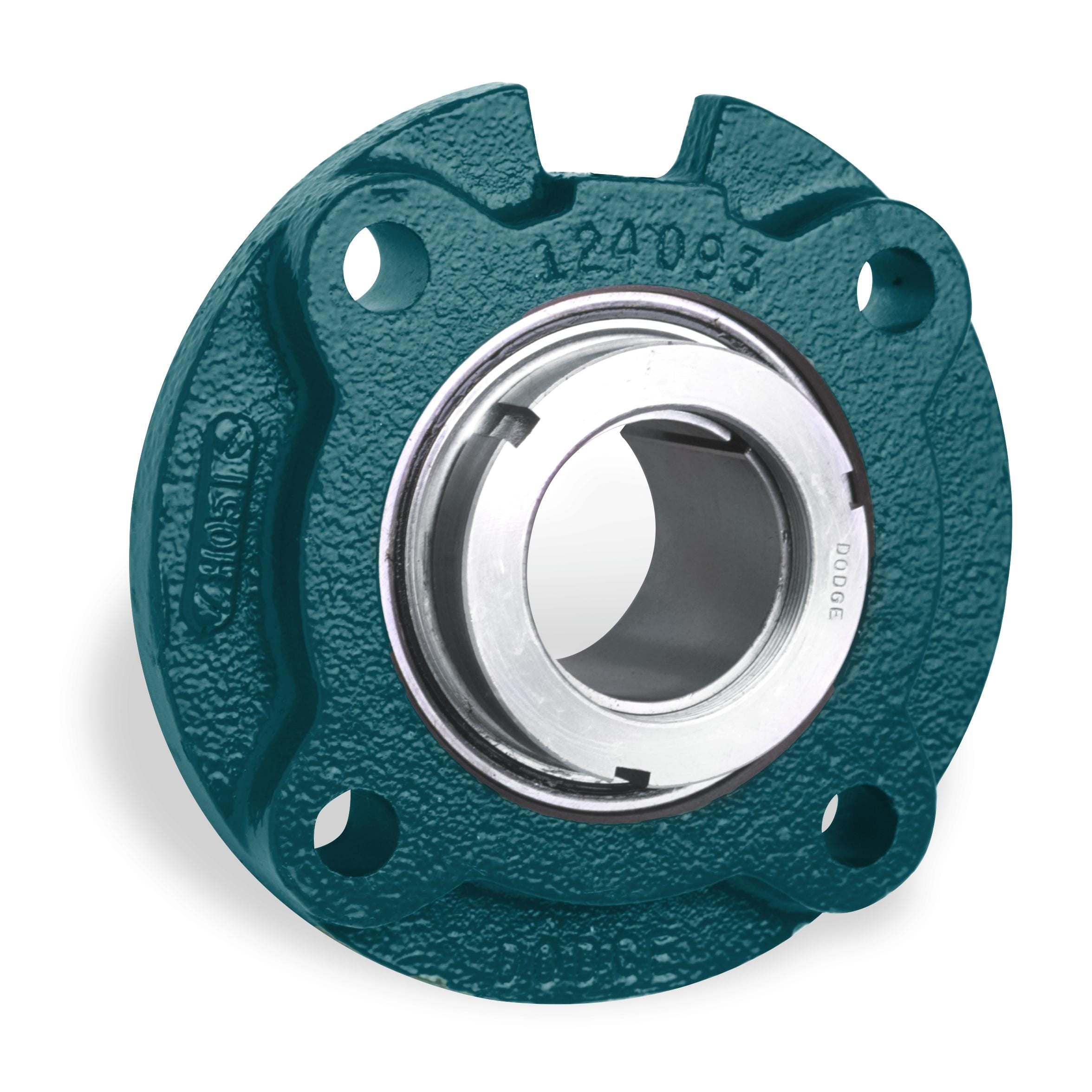

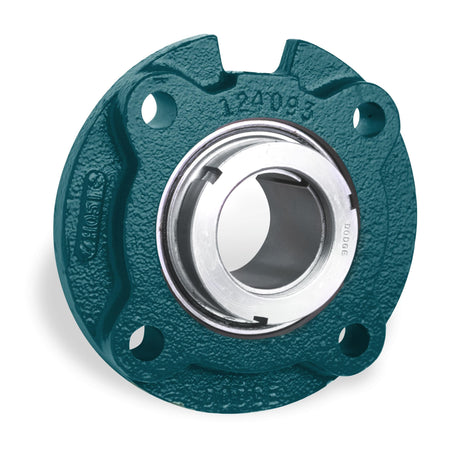

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
136293 - Dodge - FC-GTM-65M
FC-GTM-65M
Technical Specifications
| Ball Bearing Series | 214 Series |
| Bearing Type | Ball |
| Bolt Circle | 2.3900 |
| Bolt Circle (Unit) | INCH |
| Bore Length | 2.3900 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/adapter_mount_grip_tight/metric/fc_gtm_hm_asmtab.prj&varset={SERIES=214},{SS=65},{PN=136293},{DESCRIPTION=FC-GTM-65M},{PNSL=129508},{DESCRIPTIONSL=FC-GT-14},{PNA=136568},{DESCRIPTIONA=AN-GTM-14-65M-D},{W=6.7},{A=60.7},{B=193.8},{C=72.6},{D=165.1},{E=28.7},{F=M12},{G=44.2},{H=26.9},{K=139.70/139.65},{L=101.6},{Z=45.0},{CAPS=8410},{CAPD=13994}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 13995 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Piloted Flange |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 3600 |
| Maximum Speed (Unit) | RPM |
| Pilot Depth | 1.1300 |
| Pilot Depth (Unit) | INCH |
| Pilot Diameter | 5.5000 |
| Pilot Diameter (Unit) | INCH |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 65.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Static Load Capacity | 9838 |
| Static Load Capacity (Unit) | POUND_FORCE |
