136292 - Dodge - FC-GTM-55M
Regular price
$354.02 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

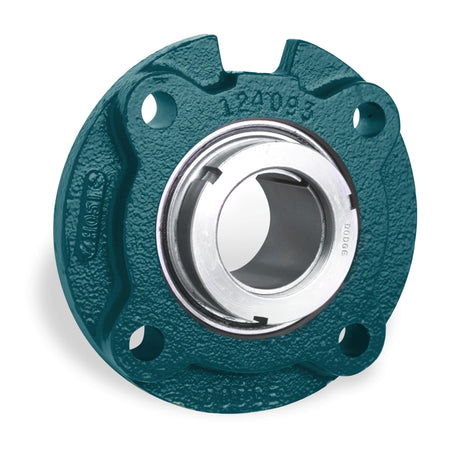

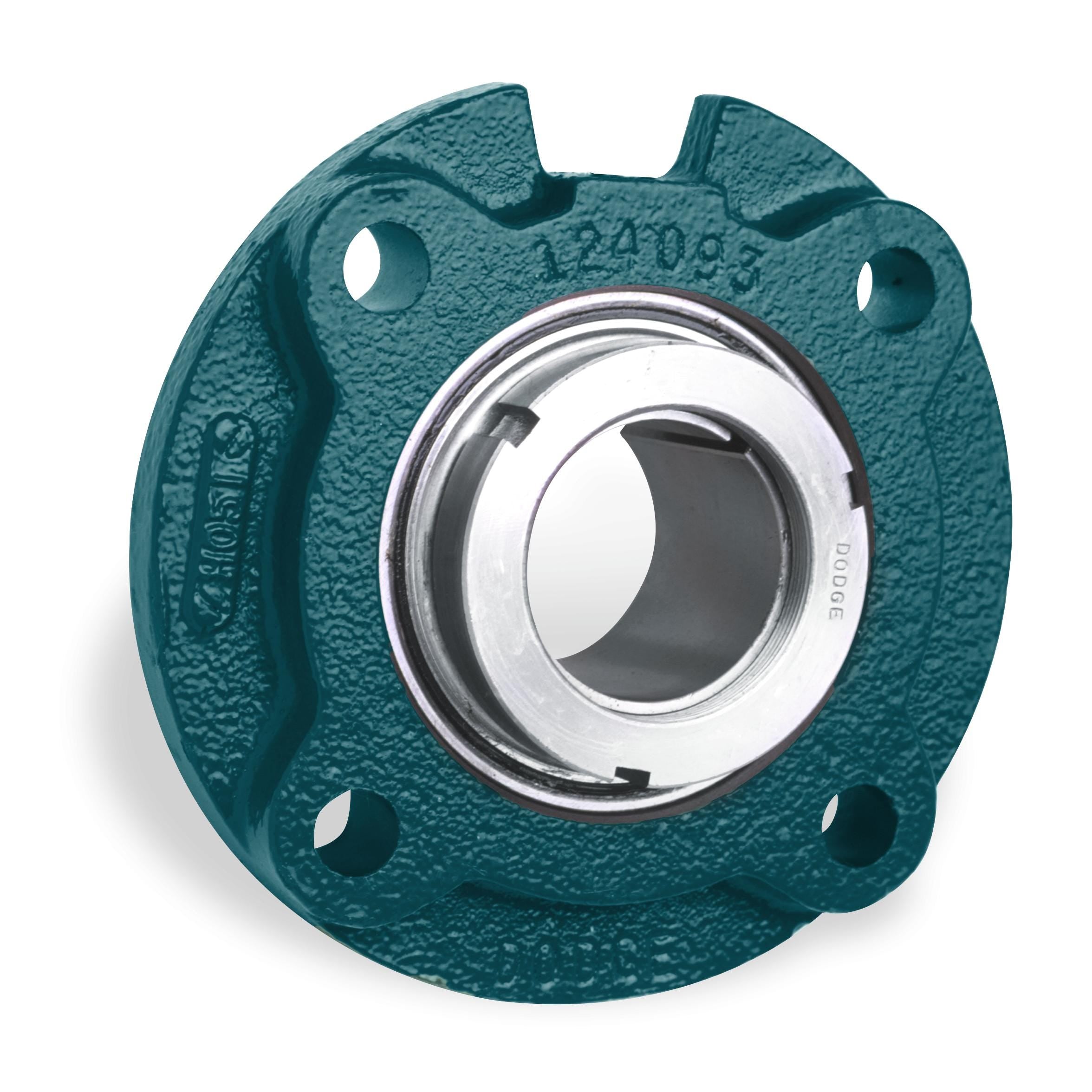

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
136292 - Dodge - FC-GTM-55M
FC-GTM-55M
Technical Specifications
| Ball Bearing Series | 212 Series |
| Bearing Type | Ball |
| Bolt Circle | 2.1200 |
| Bolt Circle (Unit) | INCH |
| Bore Length | 2.1200 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/adapter_mount_grip_tight/metric/fc_gtm_hm_asmtab.prj&varset={SERIES=212},{SS=55},{PN=136292},{DESCRIPTION=FC-GTM-55M},{PNSL=129507},{DESCRIPTIONSL=FC-GT-12},{PNA=136567},{DESCRIPTIONA=AN-GTM-12-55M-D},{W=5.6},{A=53.8},{B=181.1},{C=64.0},{D=152.4},{E=22.4},{F=M12},{G=41.9},{H=25.4},{K=127.00/126.95},{L=93.7},{Z=43.4},{CAPS=6955},{CAPD=11791}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 11791 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Piloted Flange |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 4000 |
| Maximum Speed (Unit) | RPM |
| Pilot Depth | 0.8800 |
| Pilot Depth (Unit) | INCH |
| Pilot Diameter | 5.0000 |
| Pilot Diameter (Unit) | INCH |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 55.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Static Load Capacity | 8100 |
| Static Load Capacity (Unit) | POUND_FORCE |
