136291 - Dodge - FC-GTM-50M
Regular price
$310.62 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

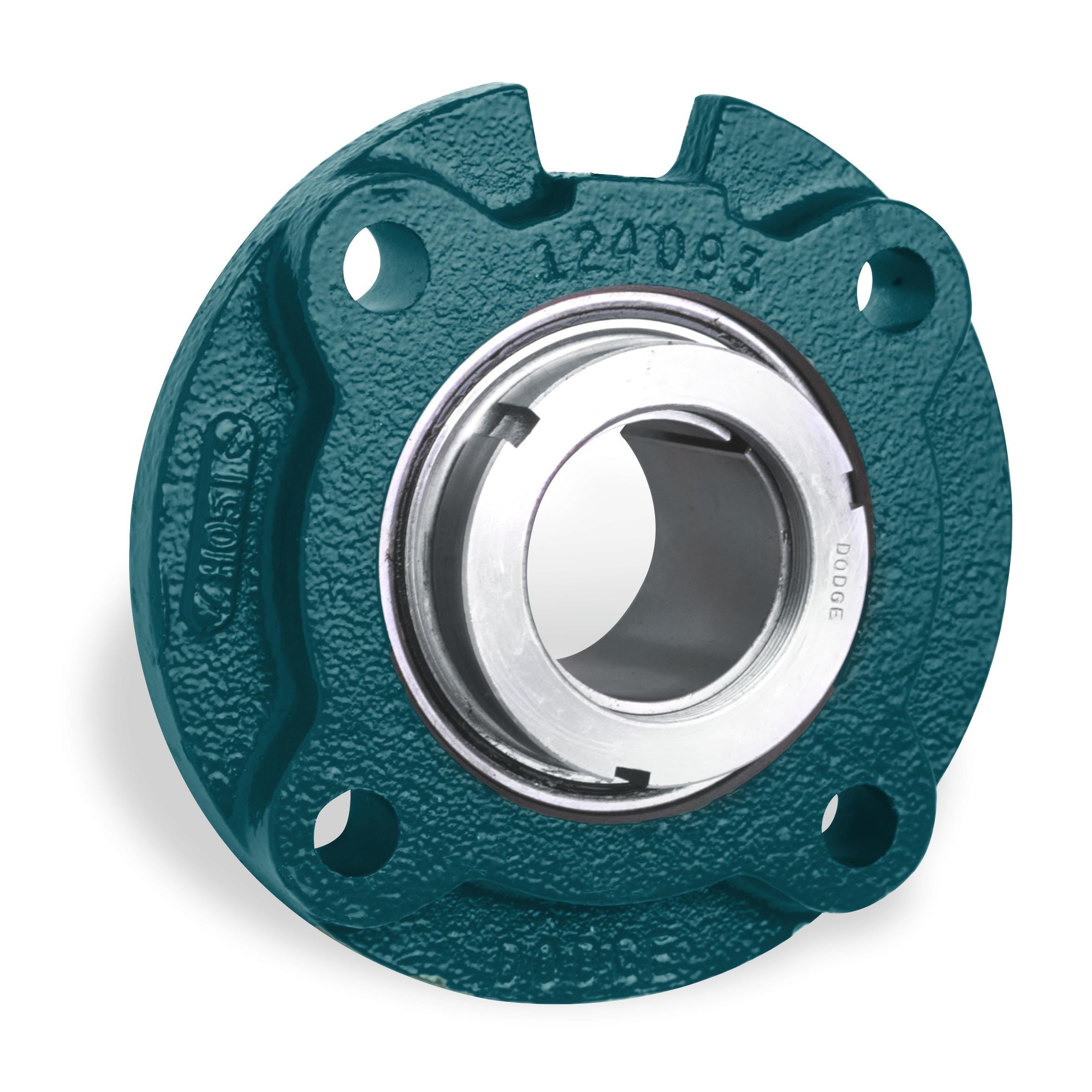

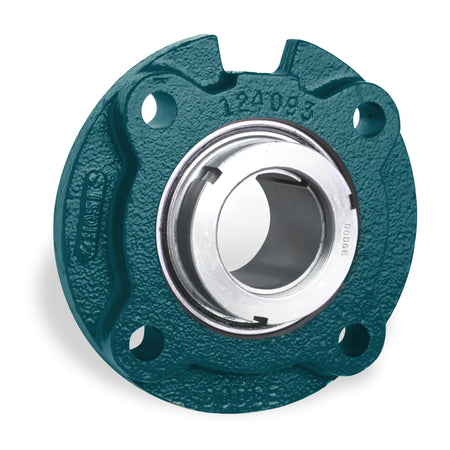

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
136291 - Dodge - FC-GTM-50M
FC-GTM-50M
Technical Specifications
| Ball Bearing Series | 211 Series |
| Bearing Type | Ball |
| Bolt Circle | 1.9300 |
| Bolt Circle (Unit) | INCH |
| Bore Length | 1.9300 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/adapter_mount_grip_tight/metric/fc_gtm_hm_asmtab.prj&varset={SERIES=211},{SS=50},{PN=136291},{DESCRIPTION=FC-GTM-50M},{PNSL=129506},{DESCRIPTIONSL=FC-GT-11},{PNA=136566},{DESCRIPTIONA=AN-GTM-11-50M-D},{W=3.9},{A=49.0},{B=162.1},{C=57.4},{D=136.7},{E=16.0},{F=M12},{G=41.4},{H=25.4},{K=114.30/114.25},{L=87.1},{Z=42.9},{CAPS=5630},{CAPD=9975}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 9755 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Piloted Flange |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 4300 |
| Maximum Speed (Unit) | RPM |
| Pilot Depth | 0.6300 |
| Pilot Depth (Unit) | INCH |
| Pilot Diameter | 4.5000 |
| Pilot Diameter (Unit) | INCH |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 50.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Static Load Capacity | 6588 |
| Static Load Capacity (Unit) | POUND_FORCE |
