136288 - Dodge - FC-GTM-35M
Regular price
$207.70 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

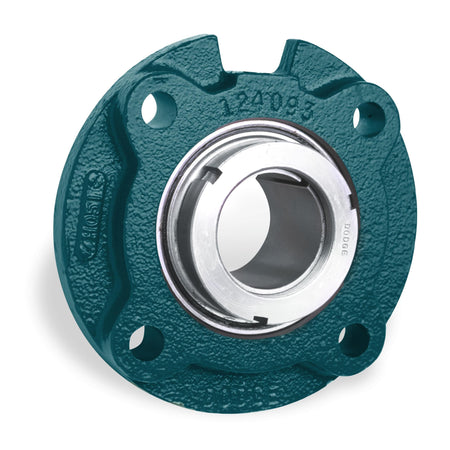

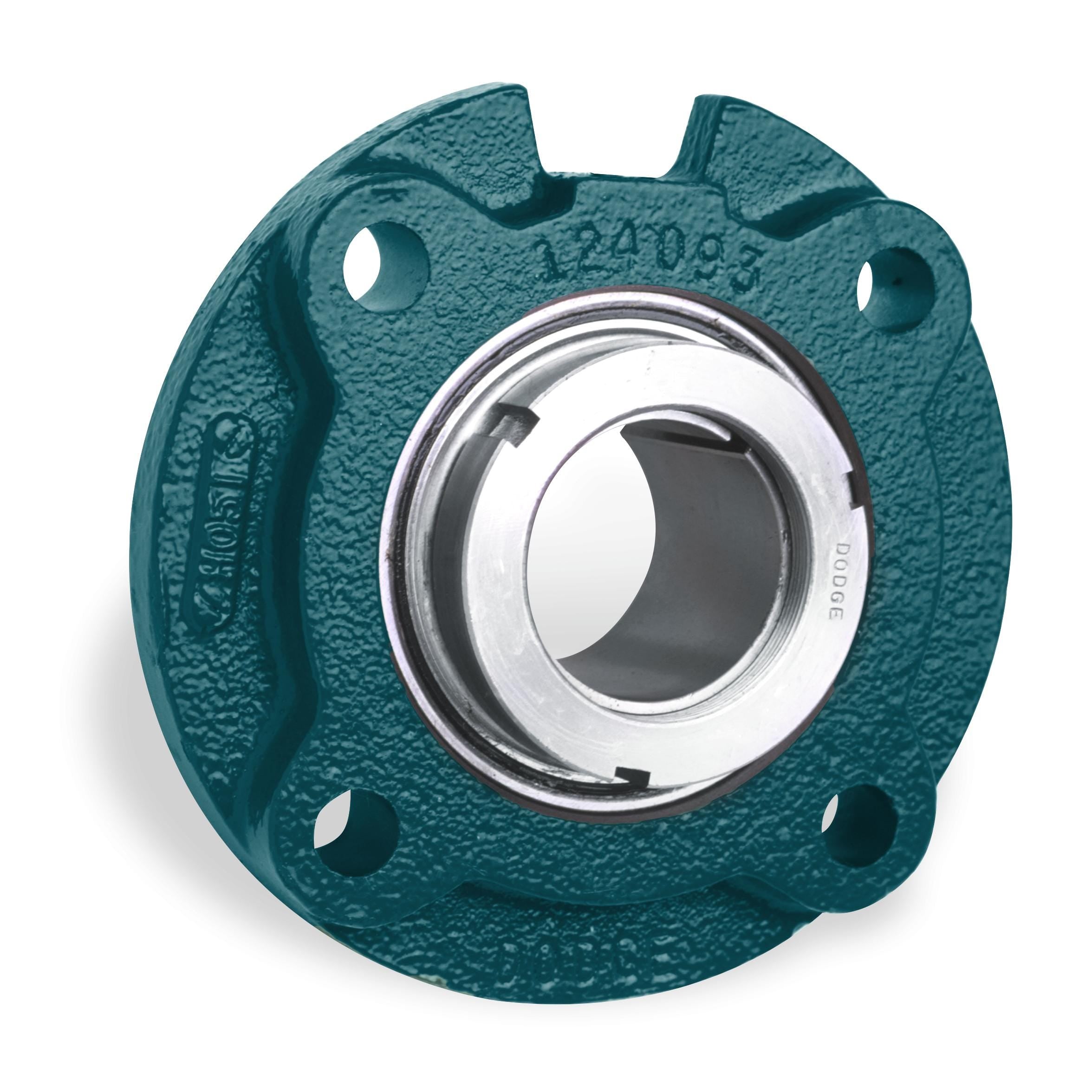

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
136288 - Dodge - FC-GTM-35M
FC-GTM-35M
Technical Specifications
| Ball Bearing Series | 208 Series |
| Bearing Type | Ball |
| Bolt Circle | 1.8400 |
| Bolt Circle (Unit) | INCH |
| Bore Length | 1.8400 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/adapter_mount_grip_tight/metric/fc_gtm_hm_asmtab.prj&varset={SERIES=208},{SS=35},{PN=136288},{DESCRIPTION=FC-GTM-35M},{PNSL=129503},{DESCRIPTIONSL=FC-GT-08},{PNA=136563},{DESCRIPTIONA=AN-GTM-08-35M-D},{W=2.5},{A=46.7},{B=133.4},{C=51.1},{D=111.3},{E=11.2},{F=M12},{G=40.1},{H=22.6},{K=92.08/92.02},{L=66.5},{Z=40.1},{CAPS=4005},{CAPD=7332}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 7332 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Piloted Flange |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 5600 |
| Maximum Speed (Unit) | RPM |
| Pilot Depth | 0.4400 |
| Pilot Depth (Unit) | INCH |
| Pilot Diameter | 3.6250 |
| Pilot Diameter (Unit) | INCH |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 35.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Static Load Capacity | 4475 |
| Static Load Capacity (Unit) | POUND_FORCE |
