136287 - Dodge - FC-GTM-30M
Regular price
$184.76 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

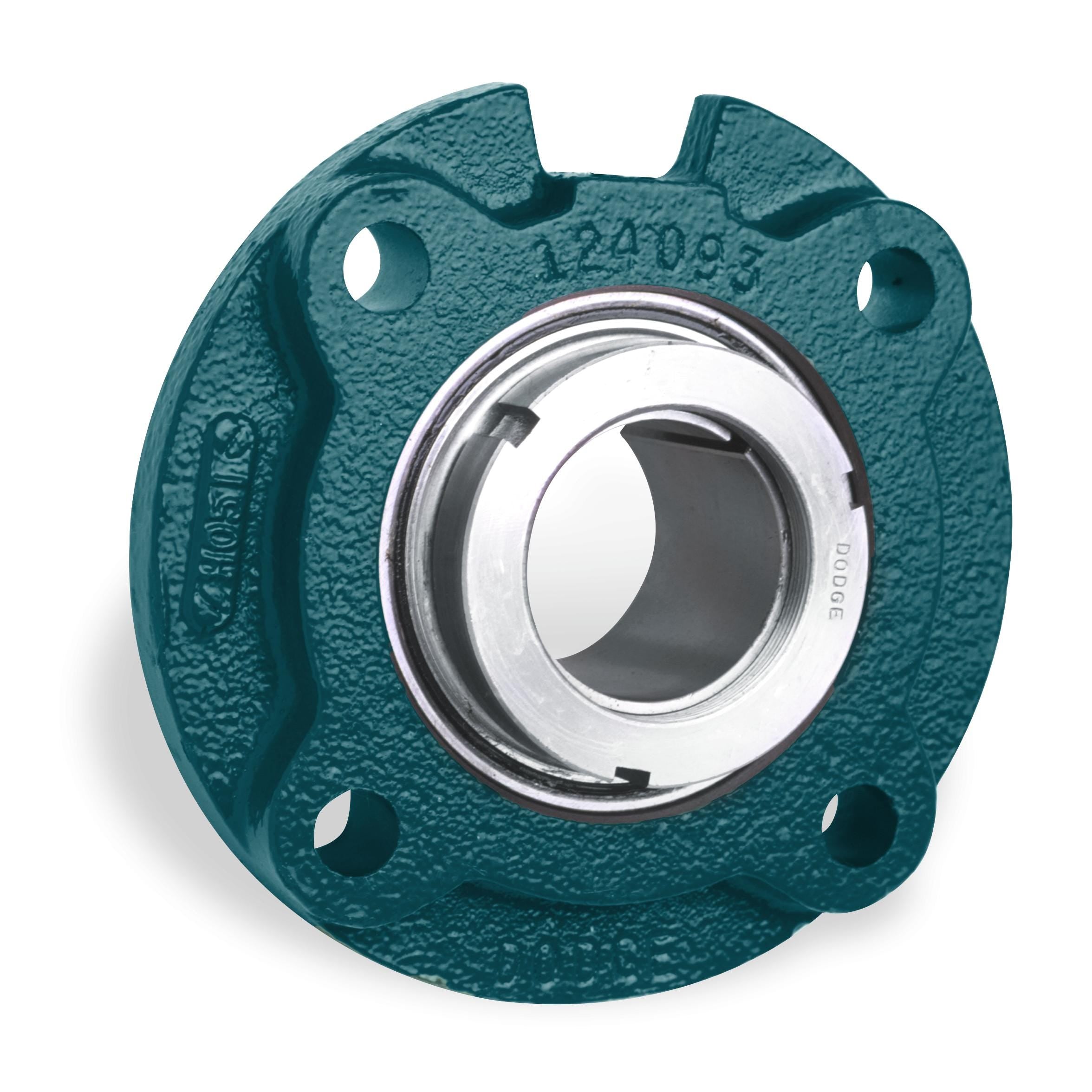

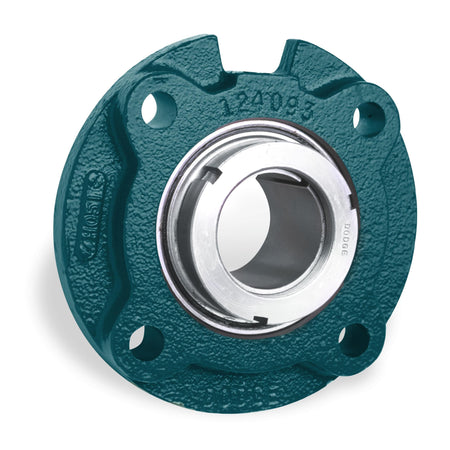

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
136287 - Dodge - FC-GTM-30M
FC-GTM-30M
Technical Specifications
| Ball Bearing Series | 207 Series |
| Bearing Type | Ball |
| Bolt Circle | 1.6200 |
| Bolt Circle (Unit) | INCH |
| Bore Length | 1.6200 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/adapter_mount_grip_tight/metric/fc_gtm_hm_asmtab.prj&varset={SERIES=207},{SS=30},{PN=136287},{DESCRIPTION=FC-GTM-30M},{PNSL=129502},{DESCRIPTIONSL=FC-GT-07},{PNA=136562},{DESCRIPTIONA=AN-GTM-07-30M-D},{W=2.0},{A=41.1},{B=127.0},{C=46.0},{D=104.9},{E=9.7},{F=M10},{G=36.6},{H=21.3},{K=85.73/85.67},{L=60.5},{Z=37.8},{CAPS=3065},{CAPD=5759}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 5759 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Piloted Flange |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 6300 |
| Maximum Speed (Unit) | RPM |
| Pilot Depth | 0.3800 |
| Pilot Depth (Unit) | INCH |
| Pilot Diameter | 3.3750 |
| Pilot Diameter (Unit) | INCH |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 30.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Static Load Capacity | 3461 |
| Static Load Capacity (Unit) | POUND_FORCE |
