136286 - Dodge - FC-GTM-25M
Regular price
$155.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

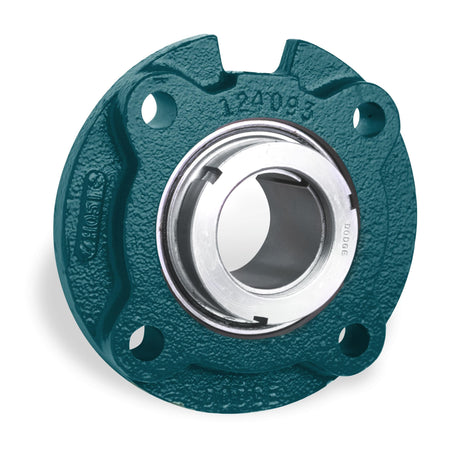

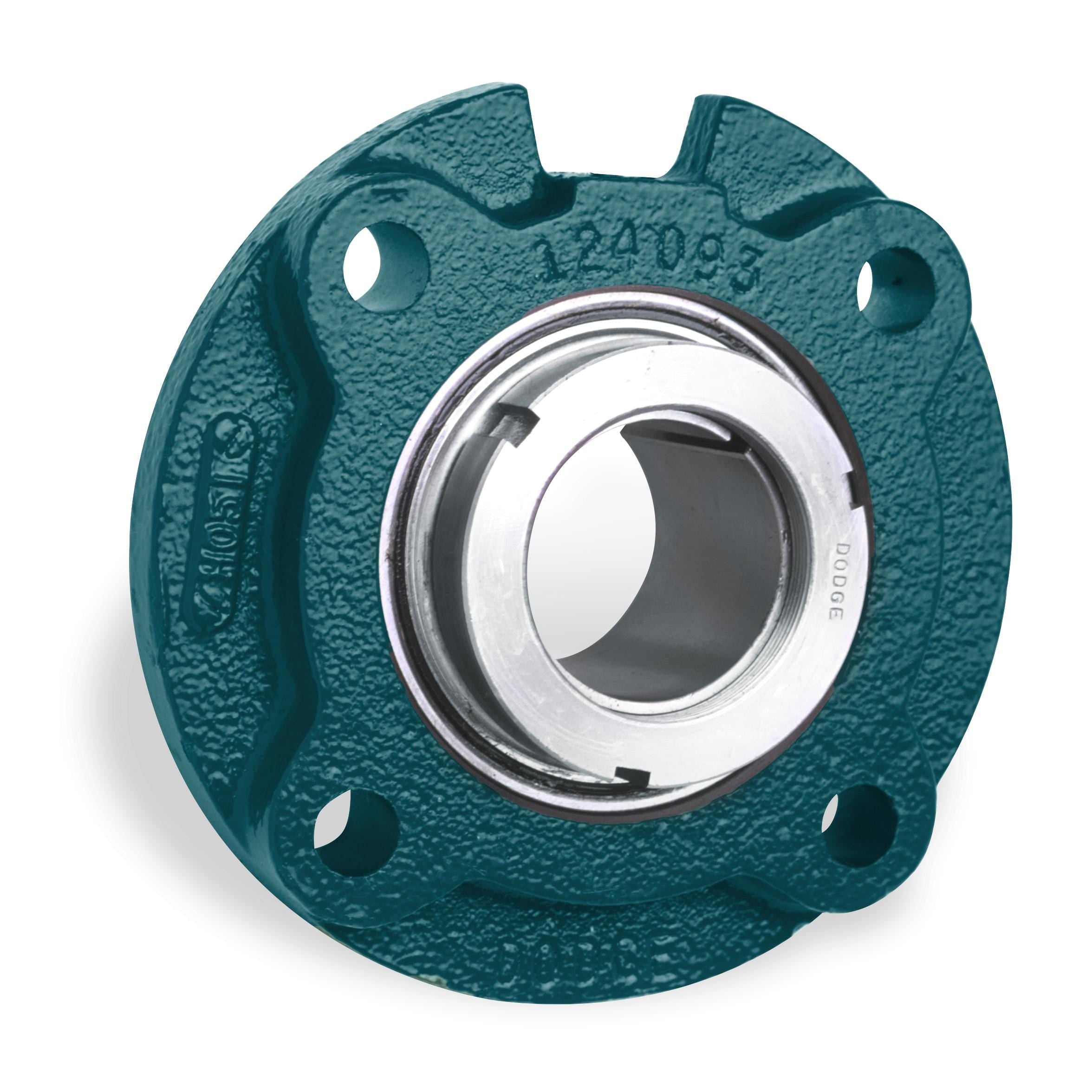

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
136286 - Dodge - FC-GTM-25M
FC-GTM-25M
Technical Specifications
| Ball Bearing Series | 206 Series |
| Bearing Type | Ball |
| Bolt Circle | 1.6100 |
| Bolt Circle (Unit) | INCH |
| Bore Length | 1.6100 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/adapter_mount_grip_tight/metric/fc_gtm_hm_asmtab.prj&varset={SERIES=206},{SS=25},{PN=136286},{DESCRIPTION=FC-GTM-25M},{PNSL=129501},{DESCRIPTIONSL=FC-GT-06},{PNA=136561},{DESCRIPTIONA=AN-GTM-06-25M-D},{W=1.5},{A=40.9},{B=111.3},{C=42.7},{D=92.2},{E=6.4},{F=M10},{G=36.3},{H=20.6},{K=76.20/76.15},{L=52.8},{Z=37.1},{CAPS=2250},{CAPD=4368}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 4368 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Piloted Flange |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 7500 |
| Maximum Speed (Unit) | RPM |
| Pilot Depth | 0.2500 |
| Pilot Depth (Unit) | INCH |
| Pilot Diameter | 3.0000 |
| Pilot Diameter (Unit) | INCH |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 25.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Static Load Capacity | 2538 |
| Static Load Capacity (Unit) | POUND_FORCE |
