136278 - Dodge - F4B-GTM-40M
Regular price
$195.92 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

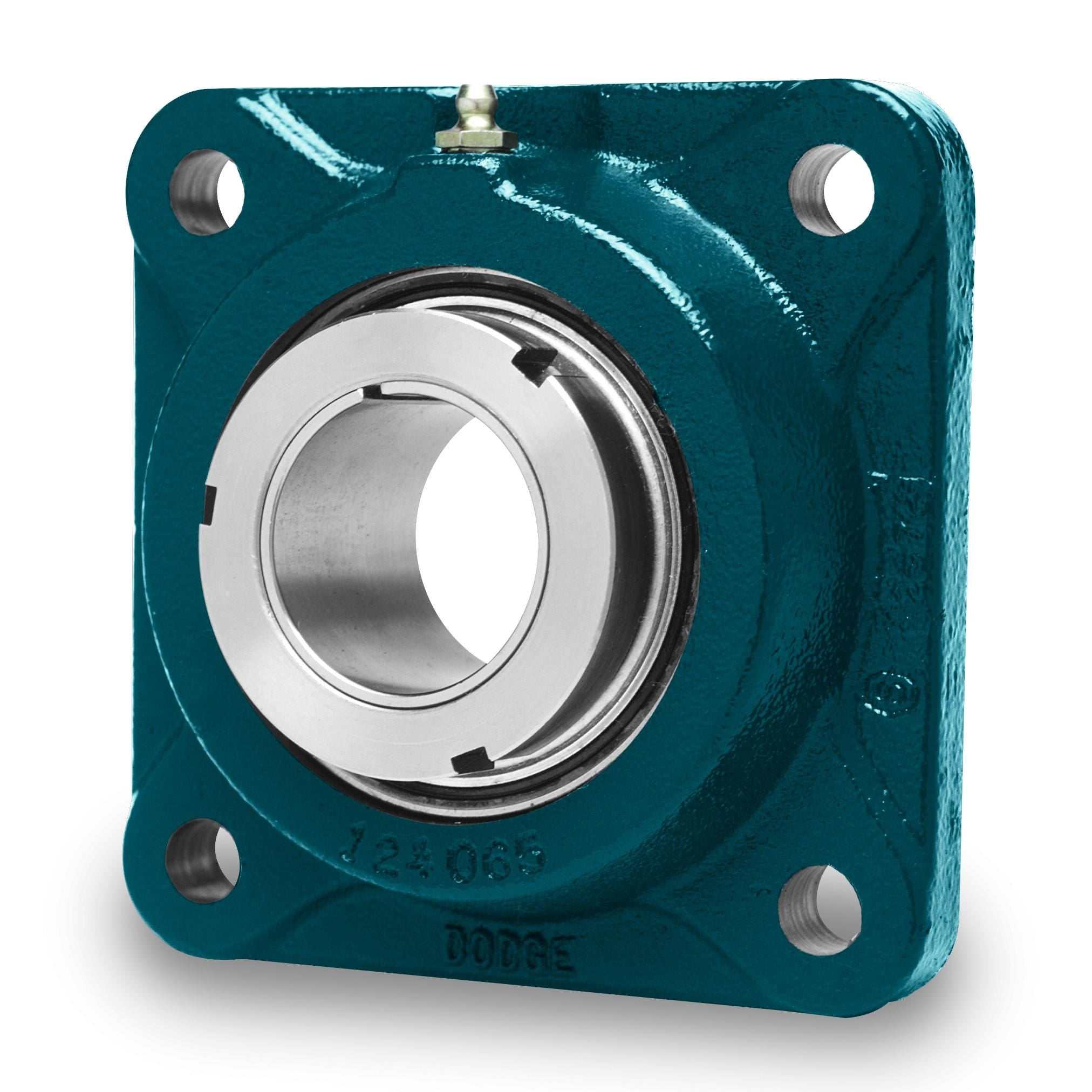

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
136278 - Dodge - F4B-GTM-40M
F4B-GTM-40M
Technical Specifications
| Ball Bearing Series | 209 Series |
| Bearing Type | Ball |
| Bolt to Bolt (Max) | 4.1300 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 4.1300 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 2.0100 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/adapter_mount_grip_tight/metric/f4b_gtm_asmtab.prj&varset={SERIES=209},{SS=40},{PN=136278},{DESCRIPTION=F4B-GTM-40M},{A=46.8},{B=136.5},{C=50.8},{D=104.8},{F=M14},{H=15.9},{J=14.3},{L=67.9},{N=69.9},{Z=50.0}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 7891 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Flange (Square) |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 5300 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 40.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Static Load Capacity | 4906 |
| Static Load Capacity (Unit) | POUND_FORCE |
