136276 - Dodge - F4B-GTM-30M
Regular price
$152.52 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

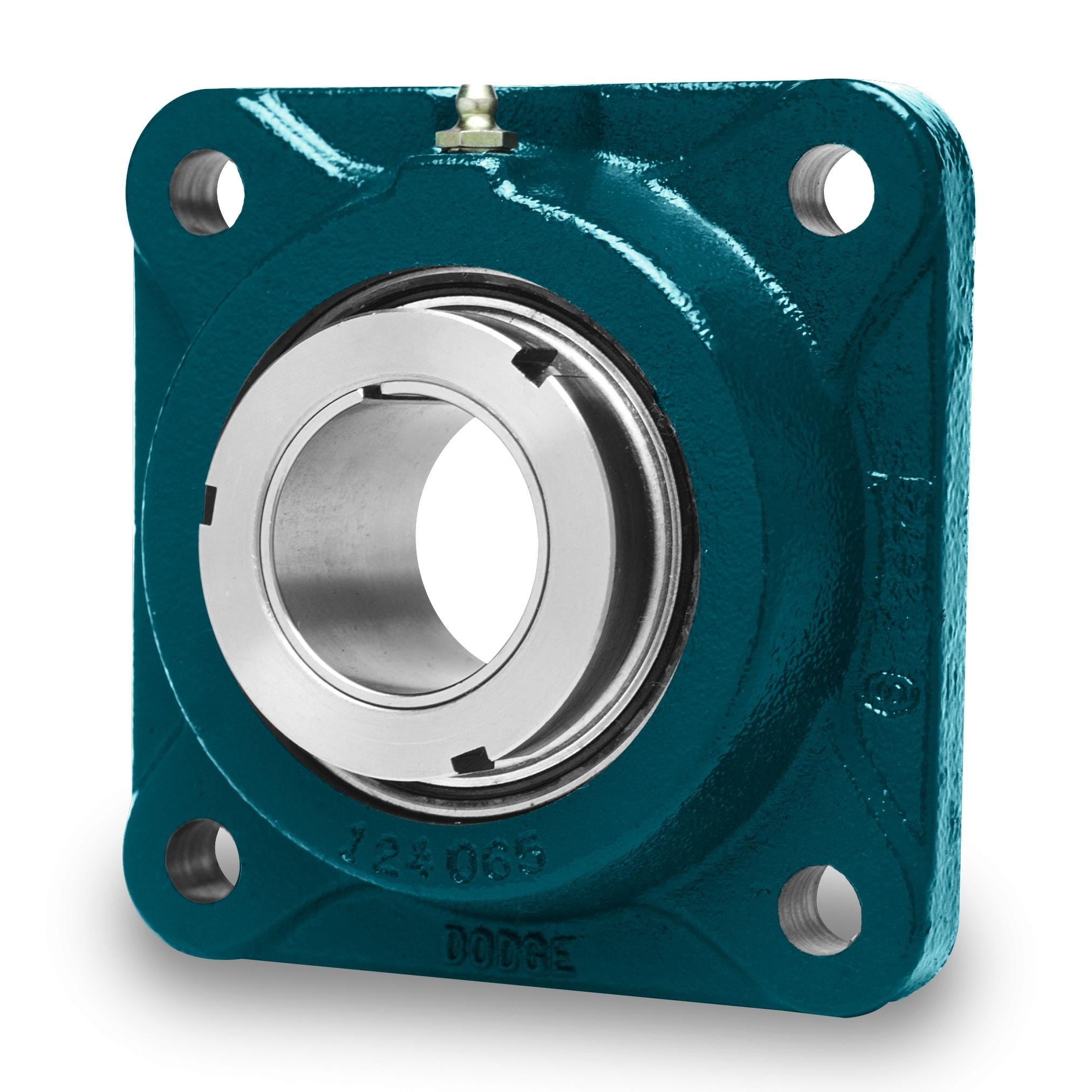

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
136276 - Dodge - F4B-GTM-30M
F4B-GTM-30M
Technical Specifications
| Ball Bearing Series | 207 Series |
| Bearing Type | Ball |
| Bolt to Bolt (Max) | 3.6300 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 3.6300 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.7500 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/adapter_mount_grip_tight/metric/f4b_gtm_asmtab.prj&varset={SERIES=207},{SS=30},{PN=136276},{DESCRIPTION=F4B-GTM-30M},{A=41.3},{B=120.7},{C=44.8},{D=92.0},{F=M12},{H=14.3},{J=13.5},{L=58.3},{N=61.9},{Z=44.5}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 5759 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Flange (Square) |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 6300 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 30.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Static Load Capacity | 3461 |
| Static Load Capacity (Unit) | POUND_FORCE |
