136275 - Dodge - F4B-GTM-25M
Regular price
$128.96 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

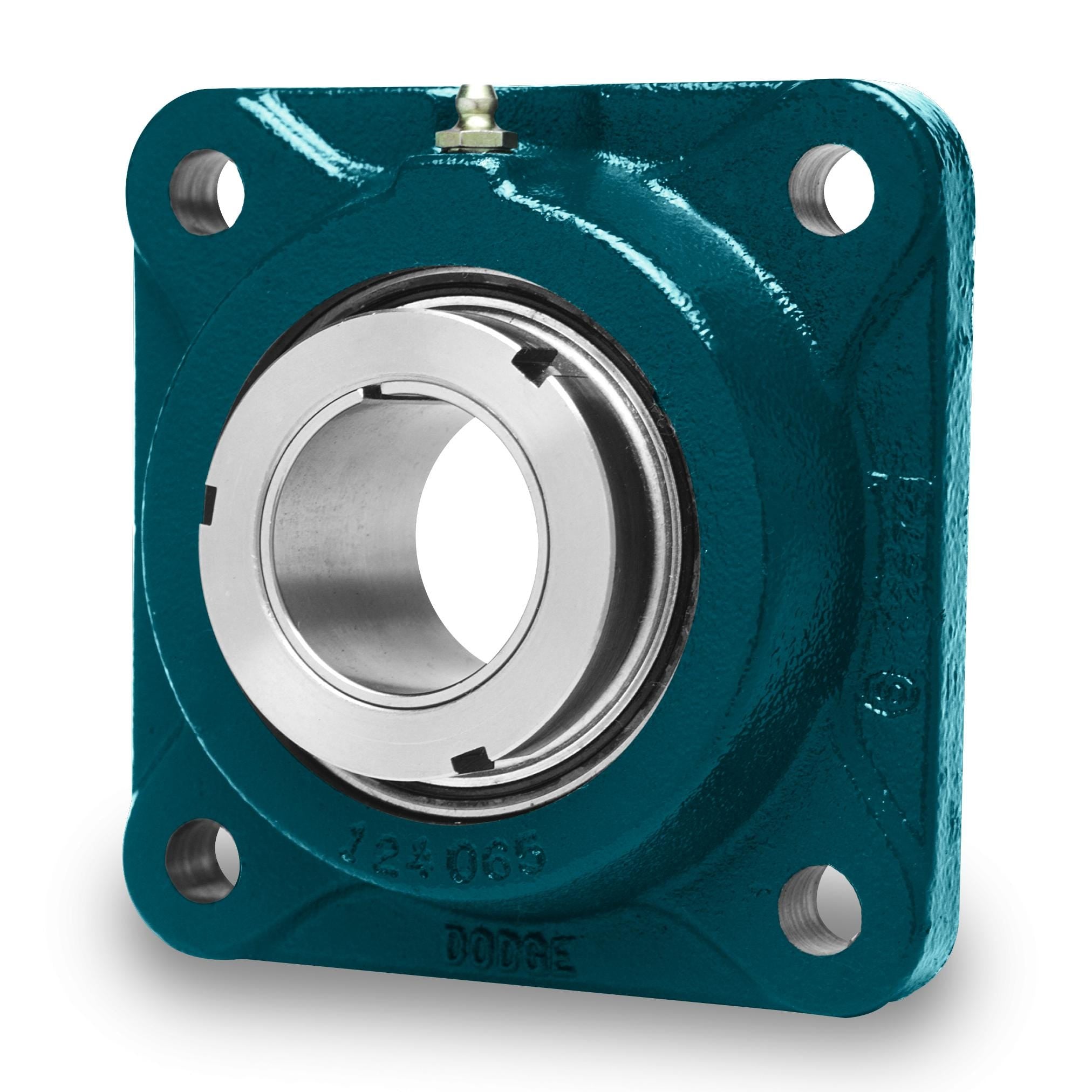

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
136275 - Dodge - F4B-GTM-25M
F4B-GTM-25M
Technical Specifications
| Ball Bearing Series | 206 Series |
| Bearing Type | Ball |
| Bolt to Bolt (Max) | 3.2500 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 3.2500 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.5600 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/adapter_mount_grip_tight/metric/f4b_gtm_asmtab.prj&varset={SERIES=206},{SS=25},{PN=136275},{DESCRIPTION=F4B-GTM-25M},{A=40.9},{B=108.0},{C=43.3},{D=82.5},{F=M10},{H=12.7},{J=15.1},{L=50.8},{N=55.6},{Z=42.1}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 4368 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Flange (Square) |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 7500 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 25.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Static Load Capacity | 2538 |
| Static Load Capacity (Unit) | POUND_FORCE |
