136266 - Dodge - P2B-GTM-75M
Regular price
$608.84 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

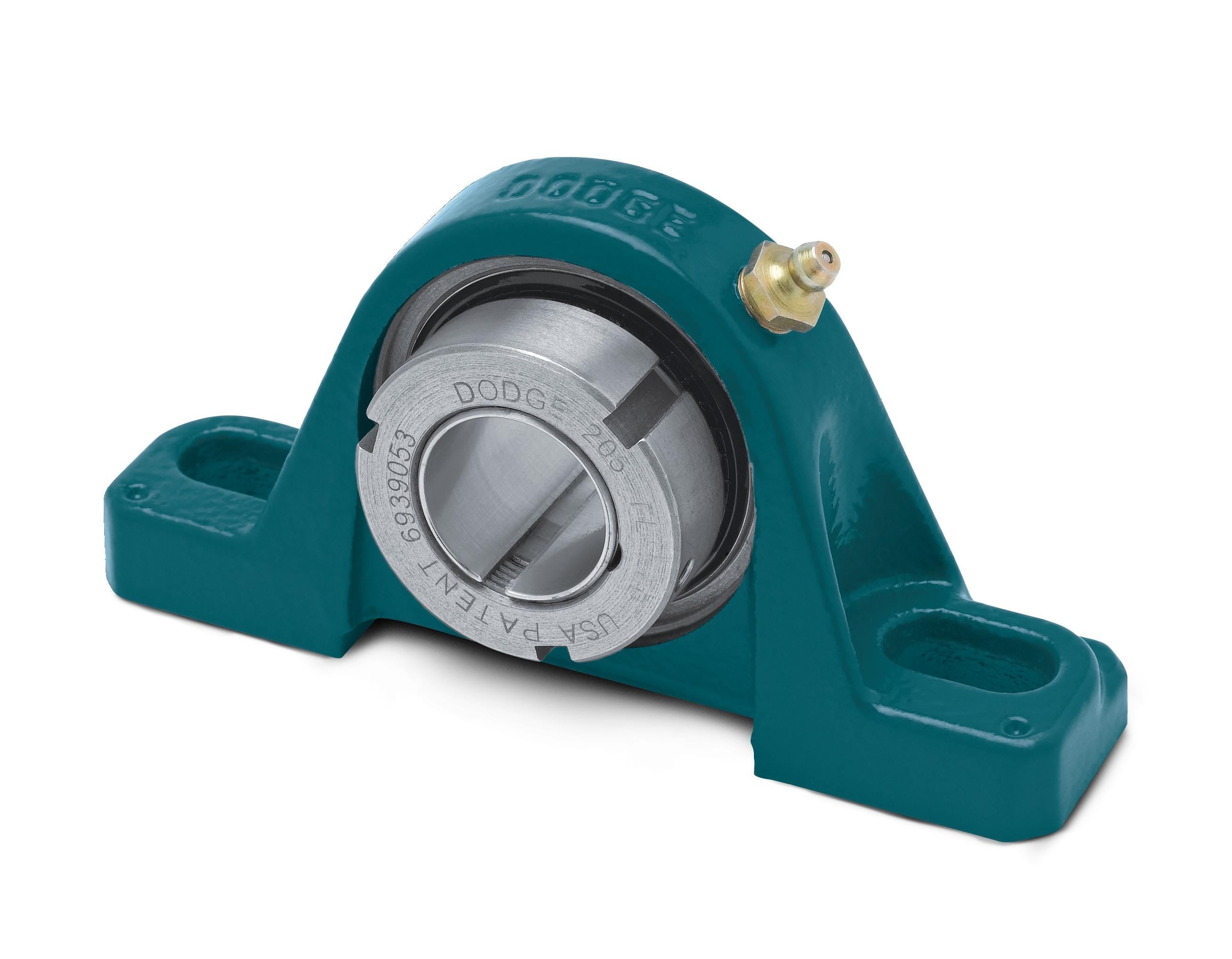

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
136266 - Dodge - P2B-GTM-75M
P2B-GTM-75M
Technical Specifications
| Ball Bearing Series | 216 Series |
| Base to Center Height | 3.5000 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Ball |
| Bolt to Bolt (Max) | 9.5000 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 8.5000 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 2.7000 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/adapter_mount_grip_tight/metric/p2b_gtm_asmtab.prj&varset={SERIES=216},{SS=75},{PN=136266},{DESCRIPTION=P2B-GTM-75M},{A=70.2},{B=298.5},{C=76.2},{DMIN=215.9},{DMAX=241.3},{F=M22},{G=36.5},{H=31.8},{J=177.0},{L=114.3},{M=88.9},{R=23.0},{S=47.2},{U=139.7},{V=279.4},{W=27.8},{X=4.8},{Z=45.6}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 17407 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 3000 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 75.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Static Load Capacity | 13102 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | LD-50,TS-400 |
