136265 - Dodge - P2B-GTM-70M
Regular price
$525.14 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

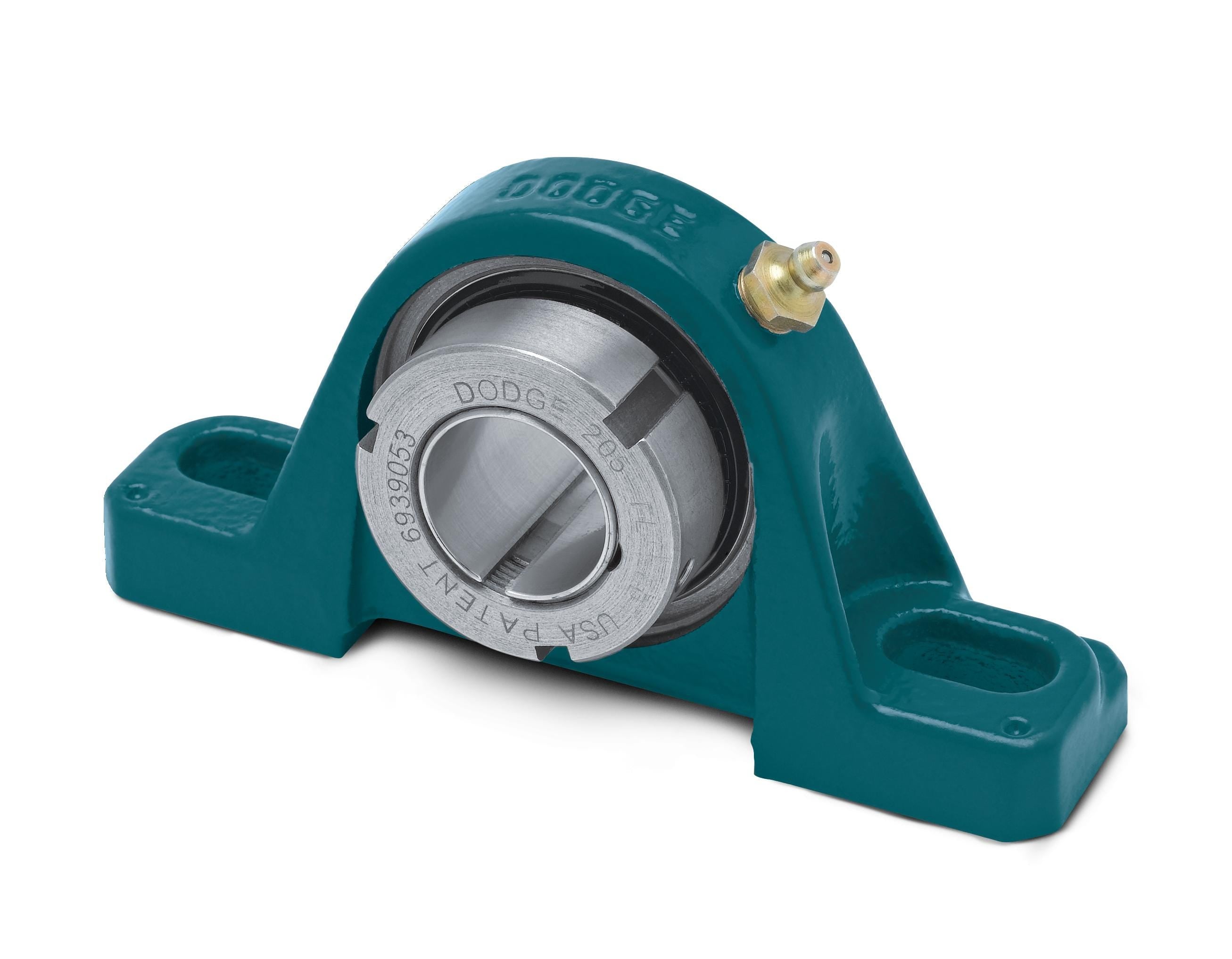

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
136265 - Dodge - P2B-GTM-70M
P2B-GTM-70M
Technical Specifications
| Ball Bearing Series | 215 Series |
| Base to Center Height | 3.5000 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Ball |
| Bolt to Bolt (Max) | 9.5000 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 8.5000 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 2.4600 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/adapter_mount_grip_tight/metric/p2b_gtm_asmtab.prj&varset={SERIES=215},{SS=70},{PN=136265},{DESCRIPTION=P2B-GTM-70M},{A=65.1},{B=298.5},{C=73.0},{DMIN=215.9},{DMAX=241.3},{F=M22},{G=36.5},{H=25.4},{J=172.7},{L=108.0},{M=88.9},{R=22.6},{S=42.5},{U=139.7},{V=279.4},{W=27.0},{X=4.8},{Z=41.3}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 14872 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 3200 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 70.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Static Load Capacity | 11108 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | LD-50,TS-350 |
