136259 - Dodge - P2B-GTM-35M
Regular price
$169.88 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

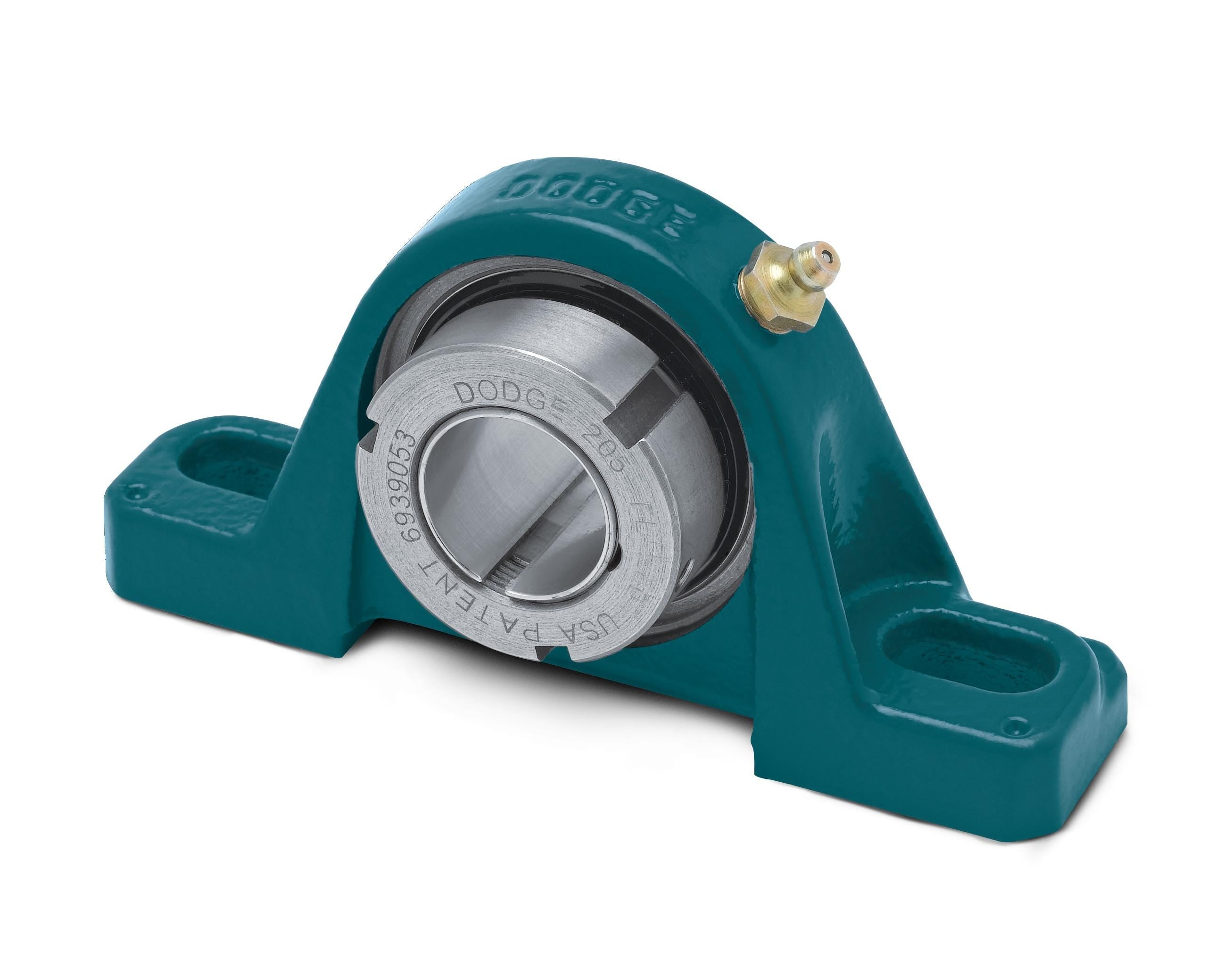

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
136259 - Dodge - P2B-GTM-35M
P2B-GTM-35M
Technical Specifications
| Ball Bearing Series | 208 Series |
| Base to Center Height | 2.1300 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Ball |
| Bolt to Bolt (Max) | 5.8800 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 5.1800 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.8400 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/adapter_mount_grip_tight/metric/p2b_gtm_asmtab.prj&varset={SERIES=208},{SS=35},{PN=136259},{DESCRIPTION=P2B-GTM-35M},{A=46.8},{B=184.2},{C=49.2},{DMIN=131.8},{DMAX=149.2},{F=M12},{G=23.0},{H=23.8},{J=106.4},{L=63.5},{M=54.0},{R=16.7},{S=30.2},{U=82.9},{V=165.9},{W=17.5},{X=4.8},{Z=29.0}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 7332 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 5600 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 35.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Static Load Capacity | 4475 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | LD-20,TS-250 |
