136258 - Dodge - P2B-GTM-25M
Regular price
$128.96 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.

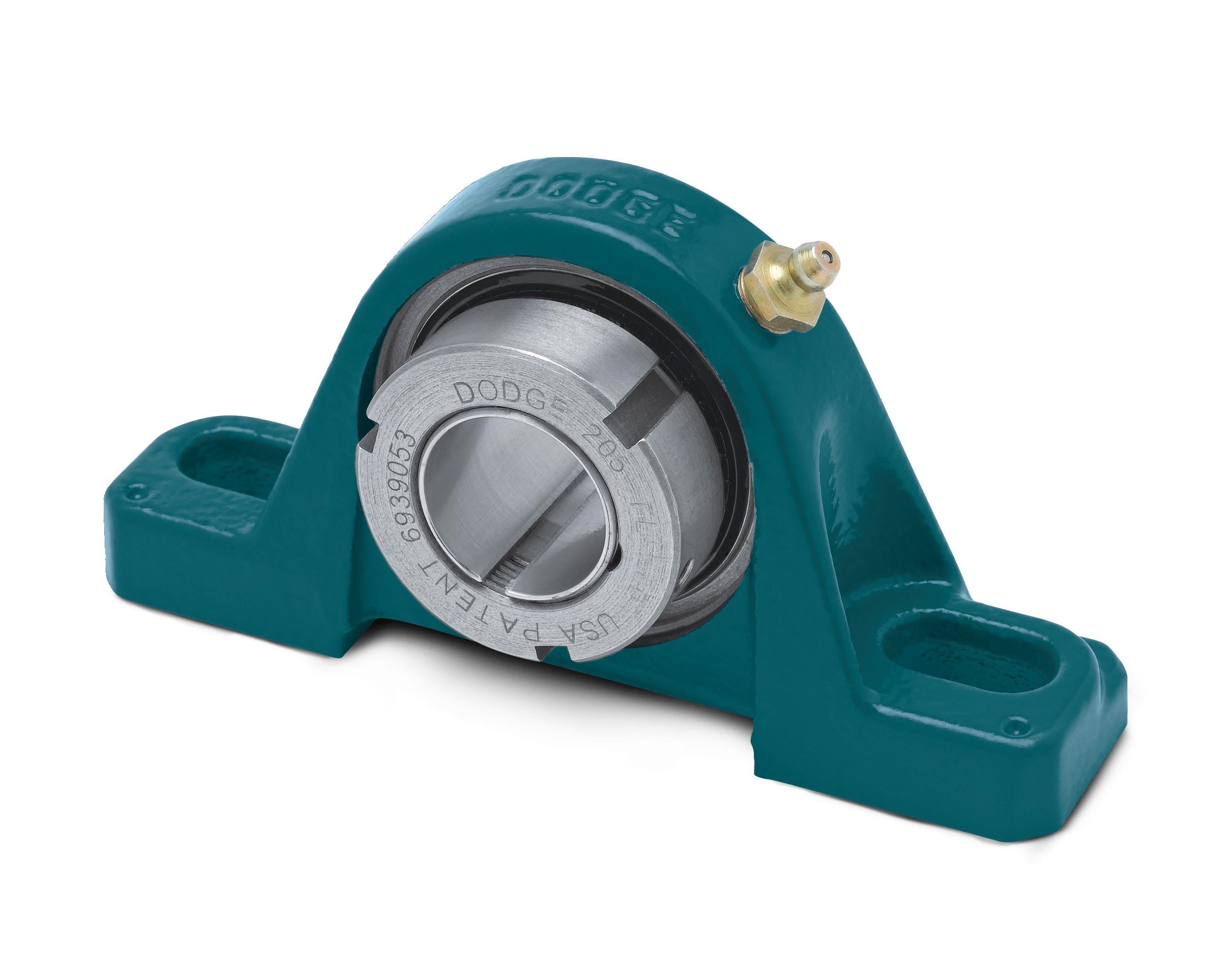

136258 - Dodge - P2B-GTM-25M
P2B-GTM-25M
Technical Specifications
| Ball Bearing Series | 206 Series |
| Base to Center Height | 1.6900 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Ball |
| Bolt to Bolt (Max) | 5.0000 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 4.2500 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.6100 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/adapter_mount_grip_tight/metric/p2b_gtm_asmtab.prj&varset={SERIES=206},{SS=25},{PN=136258},{DESCRIPTION=P2B-GTM-25M},{A=40.9},{B=158.8},{C=44.1},{DMIN=108.0},{DMAX=127.0},{F=M12},{G=23.8},{H=19.3},{J=82.6},{L=50.8},{M=42.8},{R=13.5},{S=27.4},{U=73.0},{V=146.1},{W=14.3},{X=4.8},{Z=26.2}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 4368 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 7500 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 25.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Static Load Capacity | 2538 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | LD-20,TS-250 |
