136238 - Dodge - NSTU-GT-20M
Regular price
$137.02 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

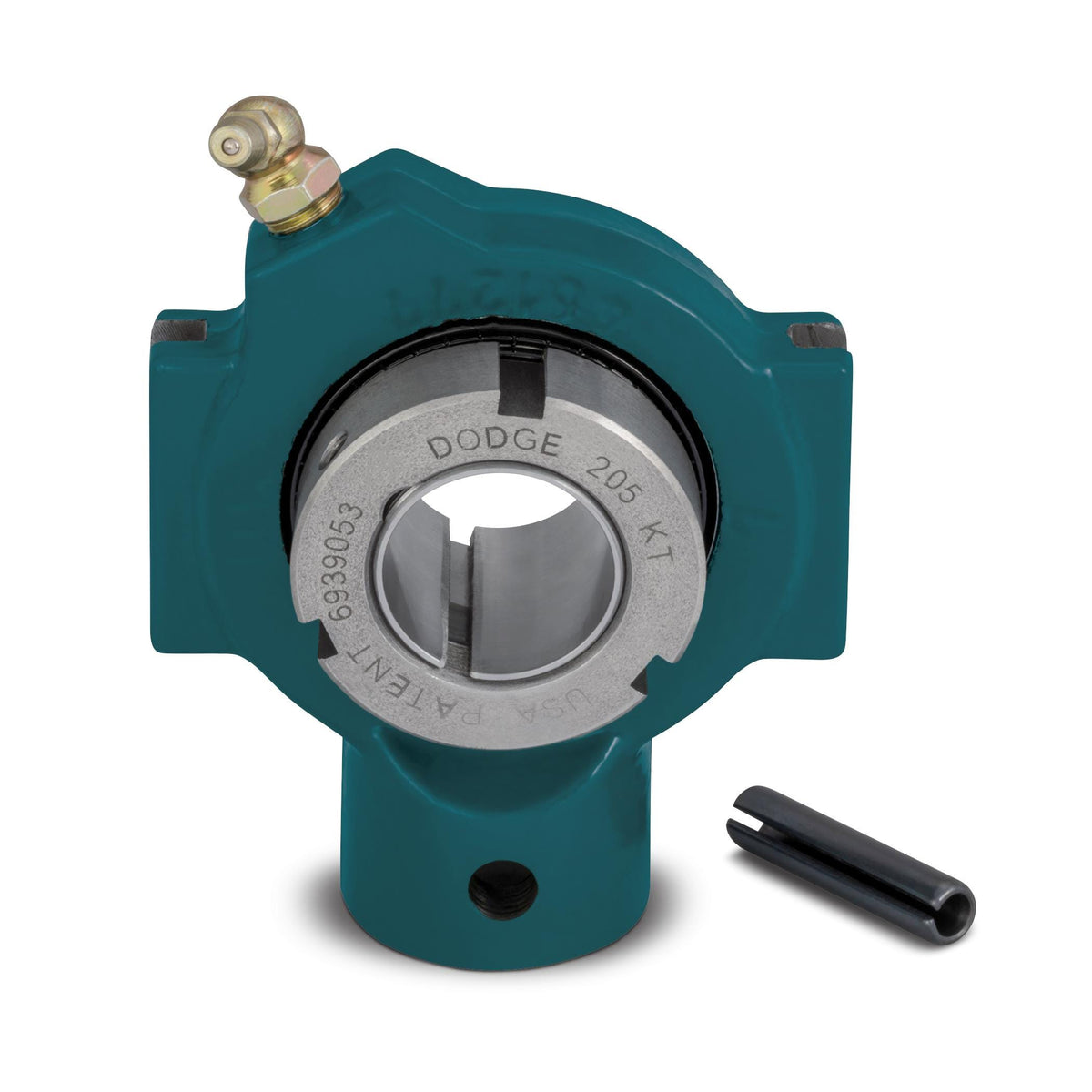

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
136238 - Dodge - NSTU-GT-20M
NSTU-GT-20M
Technical Specifications
| Ball Bearing Series | 204 Series |
| Bearing Type | Ball |
| Bore Length | 1.4800 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/adapter_mount_grip_tight/metric/nstu_gt_asmtab_m.prj&varset={SERIES=204},{SS=20},{PN=136238},{DESCRIPTION=NSTU-GT-20M},{PNSL=136210},{DESCRIPTIONSL=NSTU-GT-04},{PNA=136553},{DESCRIPTIONA=AN-GT-04-20M-D},{W=0.8},{TUFS=NS210},{A=37.6},{B=88.9},{C=6.35},{D=38.1},{E=50.8},{F=19.1},{G=11.2},{H=22.4},{J=35.1},{L=38.1},{M=66.93/66.17},{N=79.5},{P=8.1},{R=11.7},{S=25.9},{Z=26.2},{CAPS=1390},{CAPD=2899}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 2899 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Narrow-Slot Take-up |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 10000 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 20.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Static Load Capacity | 1482 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | NS-210 |
