136161 - Dodge - NSTU-GTM-103
Regular price
$202.12 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

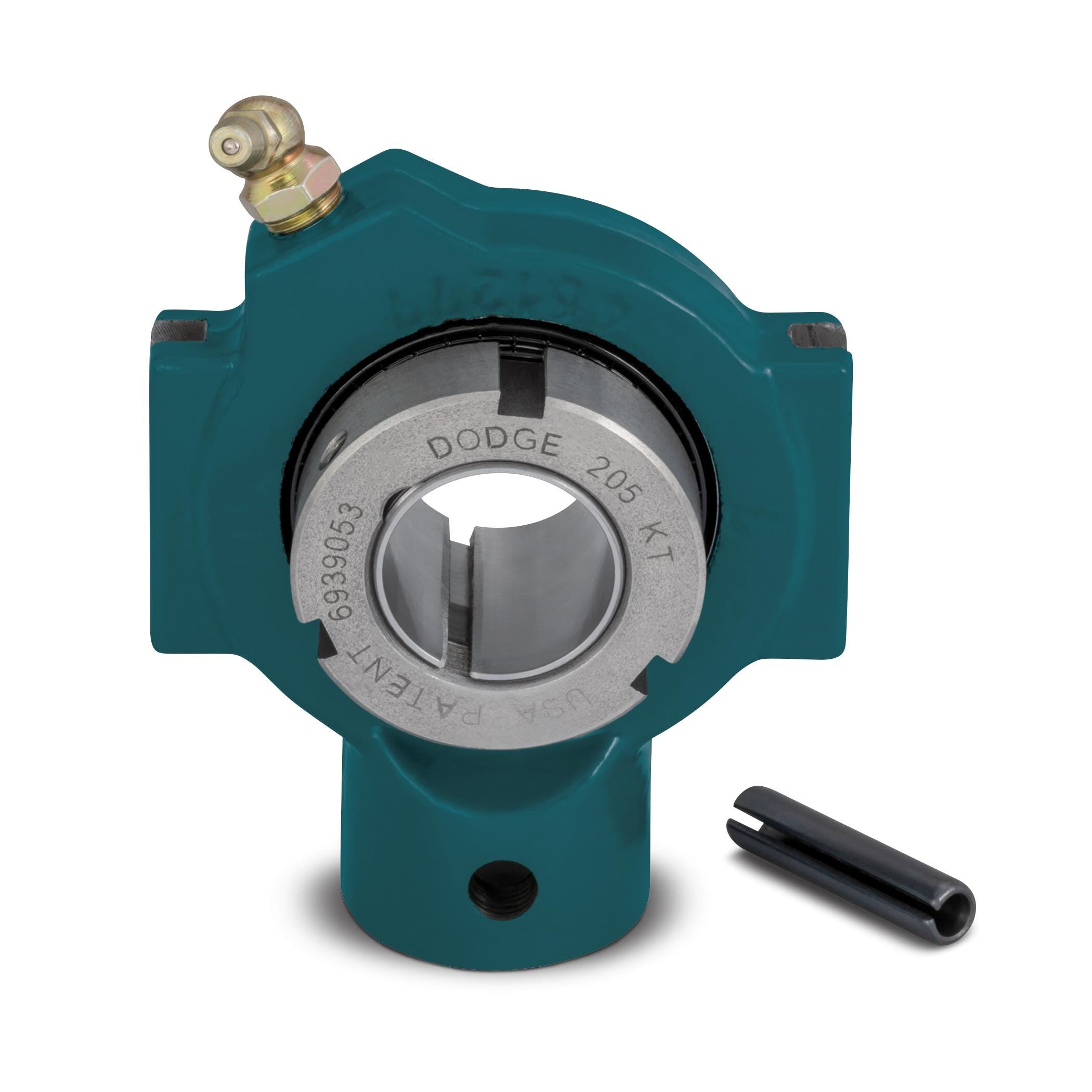

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
136161 - Dodge - NSTU-GTM-103
NSTU-GTM-103
Technical Specifications
| Ball Bearing Series | 207 Series |
| Bearing Type | Ball |
| Bore Length | 1.6200 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/adapter_mount_grip_tight/inch/nstu_gtm_asmtab_i.prj&varset={SERIES=207},{SS=1-3/16},{PN=136161},{DESCRIPTION=NSTU-GTM-103},{PNSL=136213},{DESCRIPTIONSL=NSTU-GT-07},{PNA=136542},{DESCRIPTIONA=AN-GTM-07-103-D},{W=2.8},{TUFS=NS308},{A=1.62},{B=4.50},{C=0.250},{D=2.50},{E=2.69},{F=3/4},{G=0.50},{H=0.94},{J=1.38},{L=2.38},{M=3.510/3.480},{N=4.13},{P=0.32},{R=0.54},{S=1.08},{Z=1.14},{CAPS=3065},{CAPD=5759}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 4368 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Narrow-Slot Take-up |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 6300 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 1.1875 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 2538 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | NS-308 |
