136148 - Dodge - WSTU-GT-204
Regular price
$337.90 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

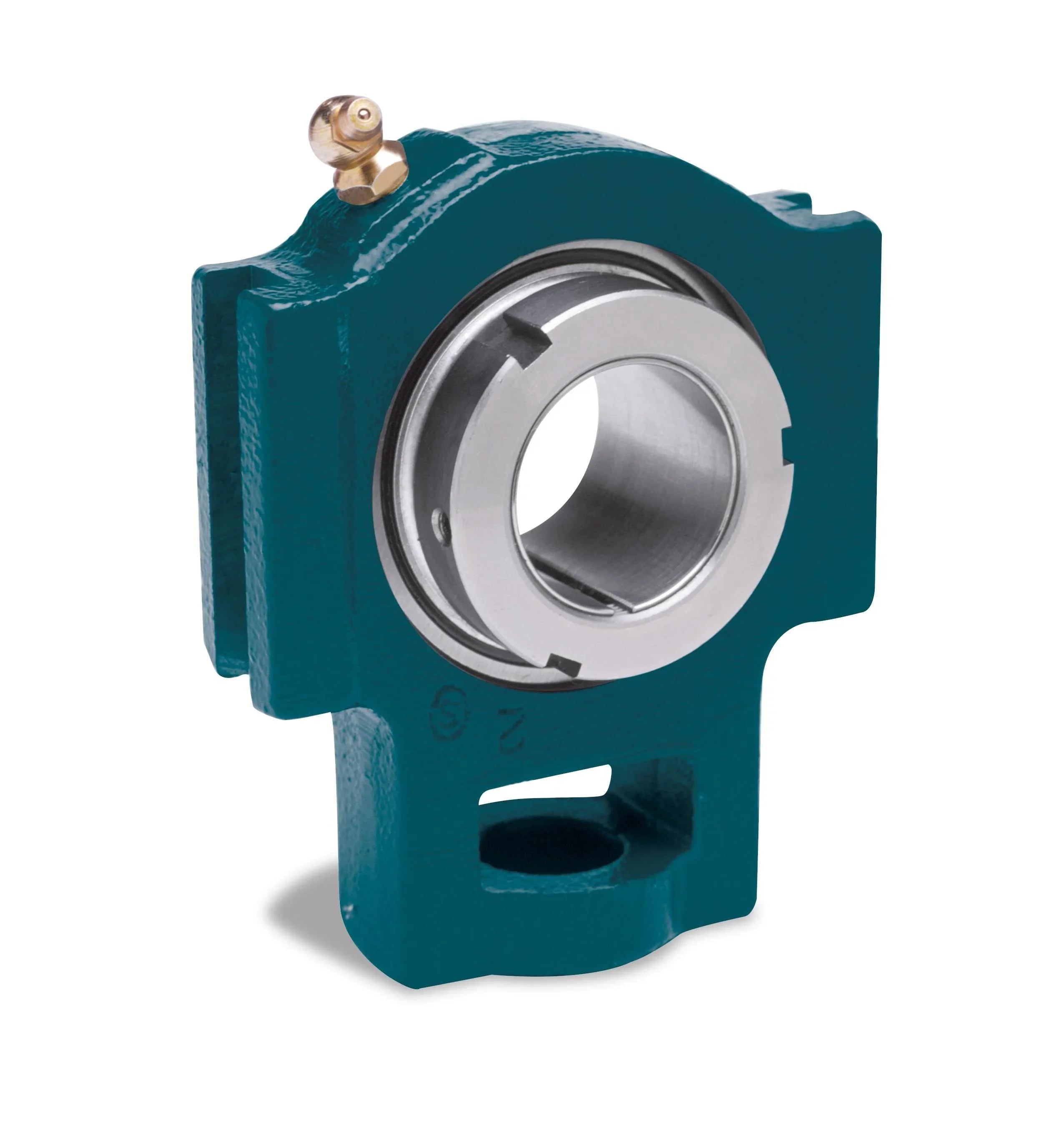

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
136148 - Dodge - WSTU-GT-204
WSTU-GT-204
Technical Specifications
| Ball Bearing Series | 211 Series |
| Bearing Type | Ball |
| Bore Length | 1.9300 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/adapter_mount_grip_tight/inch/wstu_gt_asmtab_i.prj&varset={SERIES=211},{SS=2-1/4},{PN=136148},{DESCRIPTION=WSTU-GT-204},{A=1-59/64},{B=6-11/16},{C=1.047 / 1.077},{D=3-3/4},{E=4-3/16},{F=1-1/4},{G=3/4},{H=1},{J=4},{K=2-1/2},{L=3-1/4},{M=5.110 / 5.140},{N=5-7/8},{R=45/64},{S=1-7/32},{T=2-1/2},{Z=1-3/16}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 9755 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Wide-Slot Take-up |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 4000 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 2.2500 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 6588 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | WS-502 |
