135181 - Dodge - WSTU-SCM-300
Regular price
$513.24 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

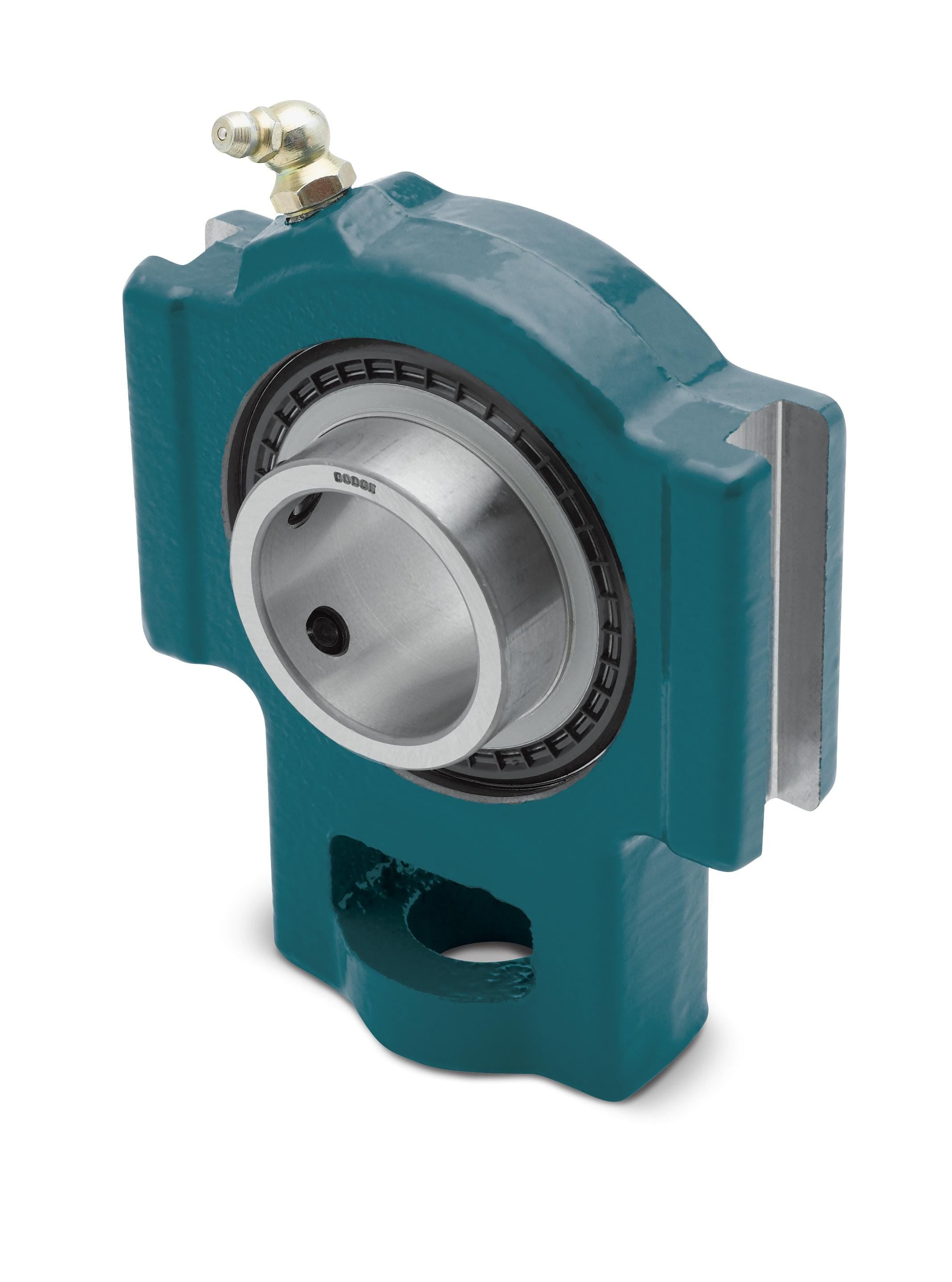

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
135181 - Dodge - WSTU-SCM-300
WSTU-SCM-300
Technical Specifications
| Ball Bearing Series | 216 Series |
| Bearing Type | Ball |
| Bore Length | 2.3800 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/setscrew_sc/inch/take_up/wstu_scm_hi_asmtab.prj&varset={SERIES=216},{SS=3},{PN=135181},{DESCRIPTION=WSTU-SCM-300},{W=21.5},{FS=WS608},{LF=RE-LUBE},{A=2.38},{B=9.13},{C=1.063},{D=4.75},{E=5.50},{F=1-1/2},{G=0.81},{H=1.25},{J=4.38},{K=2.75},{L=3.83},{M=6.485 / 6.515},{N=7.25},{R=0.88},{S=1.50},{T=2.75}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 17407 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Wide-Slot Take-up |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 1000 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 3.0000 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 13102 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | WS-608 |
