135129 - Dodge - WSTU-SCM-211
Regular price
$476.93 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

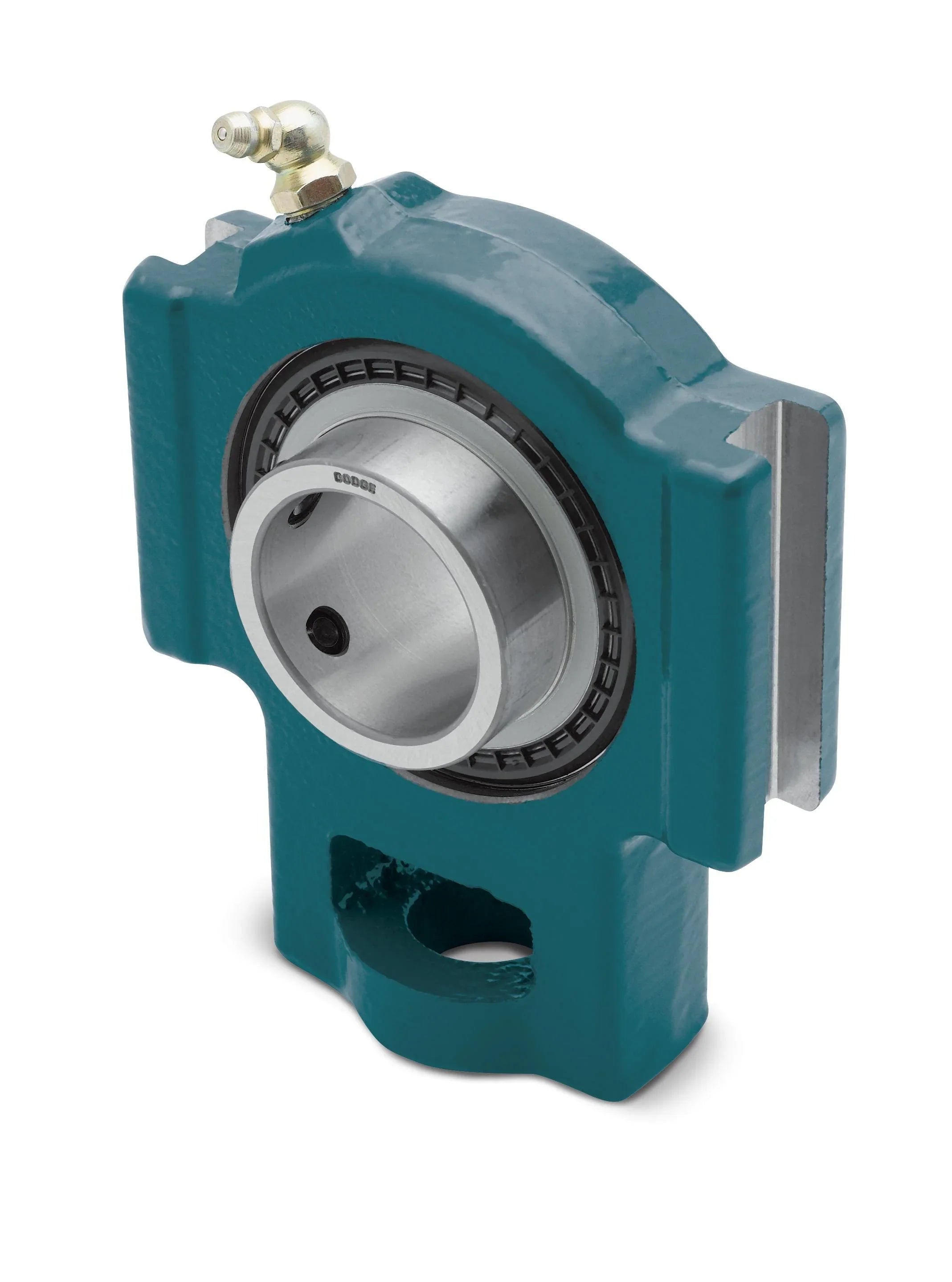

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
135129 - Dodge - WSTU-SCM-211
WSTU-SCM-211
Technical Specifications
| Ball Bearing Series | 215 Series |
| Bearing Type | Ball |
| Bore Length | 2.3300 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/setscrew_sc/inch/take_up/wstu_scm_hi_asmtab.prj&varset={SERIES=215},{SS=2-11/16},{PN=135129},{DESCRIPTION=WSTU-SCM-211},{W=19.0},{FS=WS515},{LF=RE-LUBE},{A=2.33},{B=9.13},{C=1.063},{D=4.75},{E=5.50},{F=1-1/2},{G=0.81},{H=1.25},{J=4.38},{K=2.75},{L=3.62},{M=5.923 / 5.953},{N=6.69},{R=0.86},{S=1.47},{T=2.75}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 14872 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Wide-Slot Take-up |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 1750 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 2.6875 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 11108 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | WS-515 |
