131848 - Dodge - P2B-SXRB-204
Regular price
$260.69 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

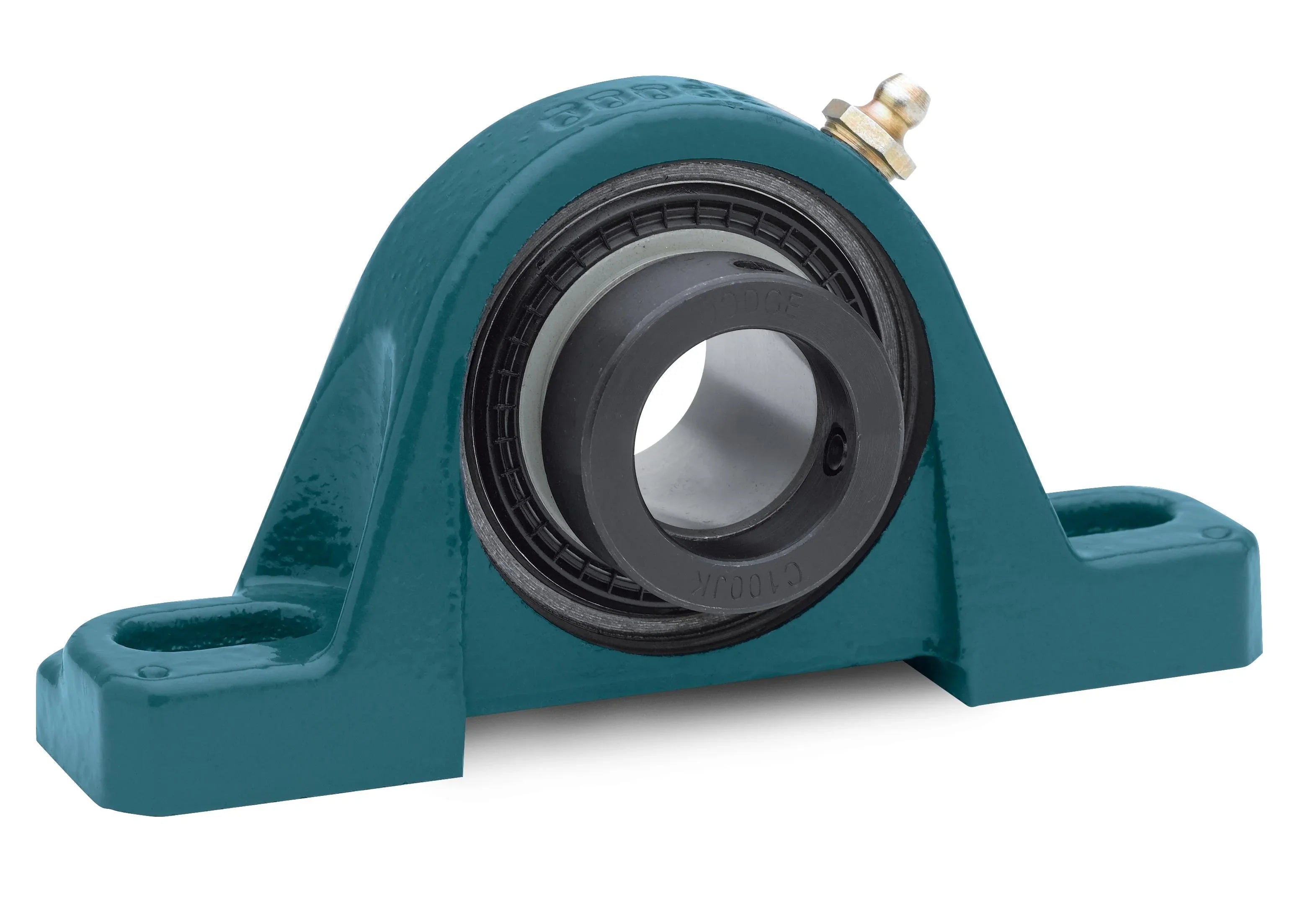

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
131848 - Dodge - P2B-SXRB-204
P2B-SXRB-204
Technical Specifications
| Ball Bearing Series | 212 Series |
| Base to Center Height | 2.6900 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Ball |
| Bolt Diameter | 0.6250 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 7.9400 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 6.8800 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 2.7400 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/eccentric_collar_sxr/inch/pillow_block/p2b_sxrb_hi_asmtab.prj&varset={SERIES=212},{SS=2-1/4},{PN=131848},{DESCRIPTION=P2B-SXRB-204},{WEIGHT=11.4},{A=2.74},{B=9.50},{C=2.37},{DMIN=6.88},{DMAX=7.94},{F=5/8},{G=1.21},{H=0.81},{J=5.34},{L=3.31},{M=2.69},{R=0.90},{S=1.84},{U=4.25},{V=8.50},{W=0.88},{X=0.12}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 11791 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 2000 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Eccentric Collar |
| Shaft Diameter | 2.2500 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 8100 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | LD-40,TS-300 |
