131838 - Dodge - P2B-SXRB-105
Regular price
$122.33 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

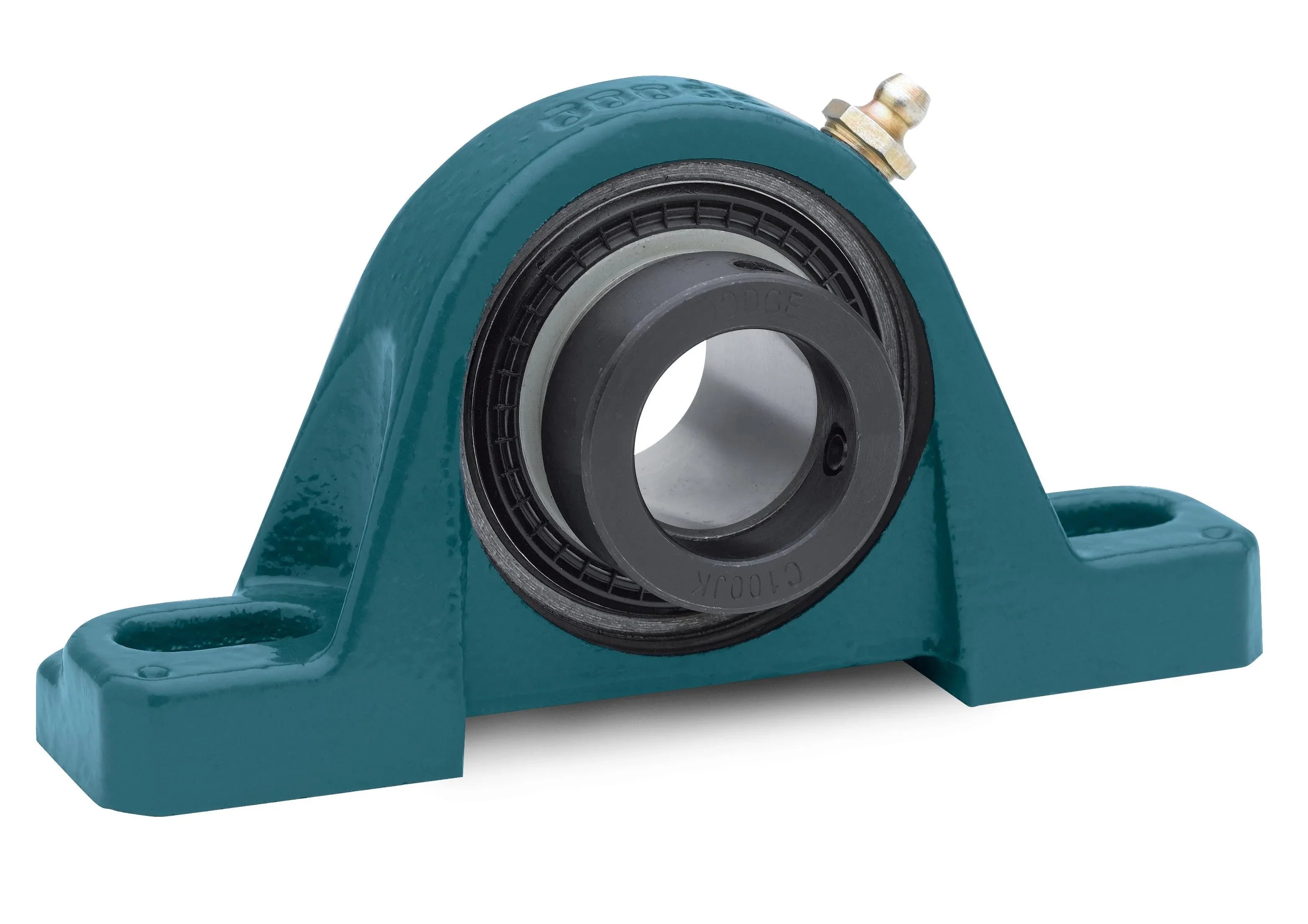

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
131838 - Dodge - P2B-SXRB-105
P2B-SXRB-105
Technical Specifications
| Ball Bearing Series | 207 Series |
| Base to Center Height | 1.8100 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Ball |
| Bolt Diameter | 0.5000 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 5.4400 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 4.6800 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.9500 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/eccentric_collar_sxr/inch/pillow_block/p2b_sxrb_hi_asmtab.prj&varset={SERIES=207},{SS=1-5/16},{PN=131838},{DESCRIPTION=P2B-SXRB-105},{WEIGHT=4.3},{A=1.95},{B=6.50},{C=1.75},{DMIN=4.68},{DMAX=5.44},{F=1/2},{G=0.94},{H=0.65},{J=3.69},{L=2.13},{M=1.81},{R=0.67},{S=1.28},{U=2.91},{V=5.82},{W=0.56},{X=0.12}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 5759 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 3500 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Eccentric Collar |
| Shaft Diameter | 1.3125 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 3461 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | LD-20,TS-250 |
