131804 - Dodge - P2B-SXR-015
Regular price
$79.71 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

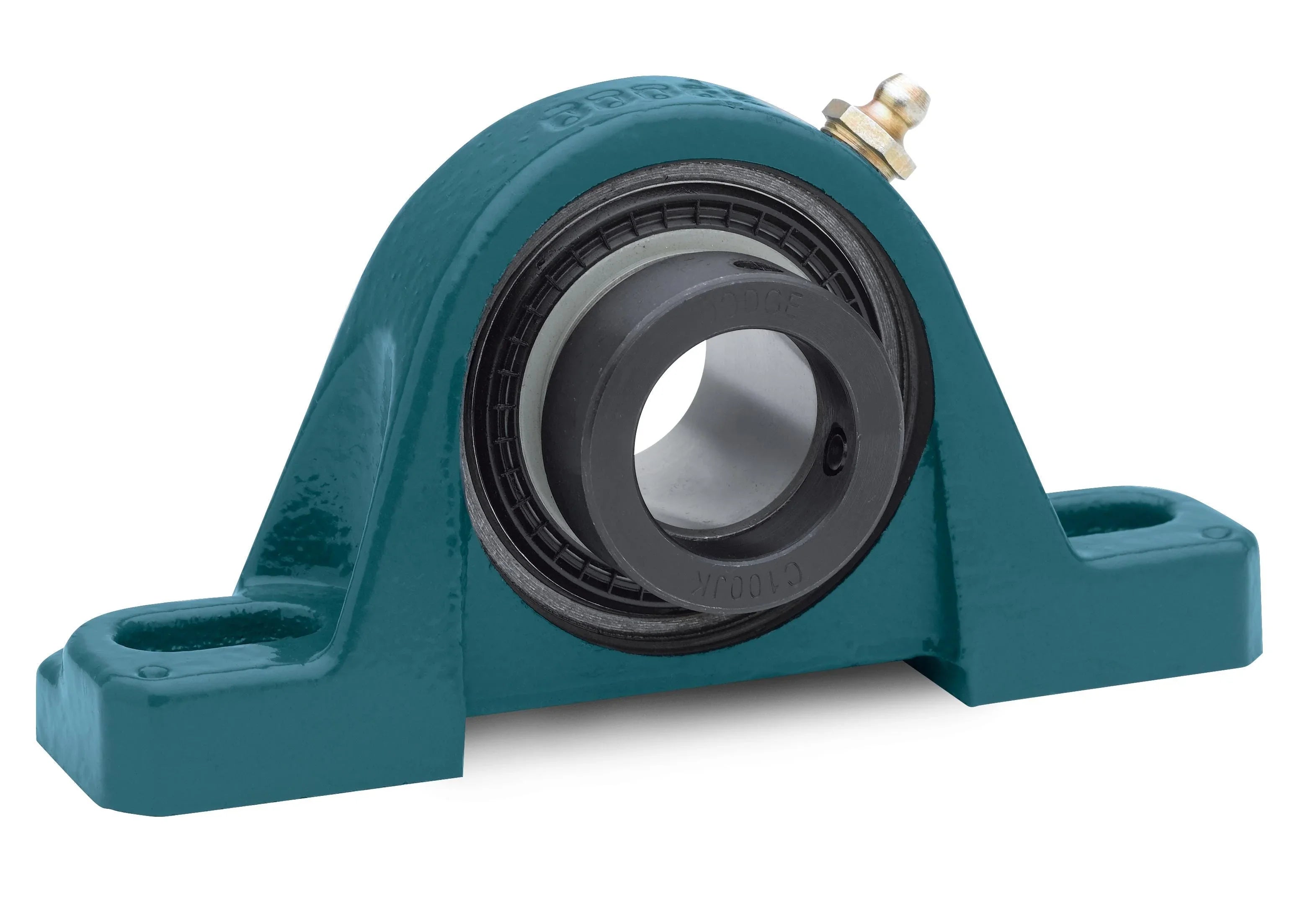

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
131804 - Dodge - P2B-SXR-015
P2B-SXR-015
Technical Specifications
| Ball Bearing Series | 205 Series |
| Base to Center Height | 1.4400 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Ball |
| Bolt Diameter | 0.3750 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 4.5000 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 3.6900 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.6200 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/eccentric_collar_sxr/inch/pillow_block/p2b_sxr_hi_asmtab.prj&varset={SERIES=205},{SS=15/16},{PN=131804},{DESCRIPTION=P2B-SXR-015},{LF=RE-LUBE},{WEIGHT=1.8},{A=1.62},{B=5.50},{C=1.40},{DMIN=3.69},{DMAX=4.50},{F=3/8},{G=0.85},{H=0.58},{J=2.77},{L=1.50},{M=1.44},{R=0.56},{S=1.06},{U=2.50},{V=5.00},{W=0.50},{X=0.12}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 3146 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 4500 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Eccentric Collar |
| Shaft Diameter | 0.9375 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 1769 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | LD-10,TS-100 |
