131742 - Dodge - F2B-SXV-102
Regular price
$67.18 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.

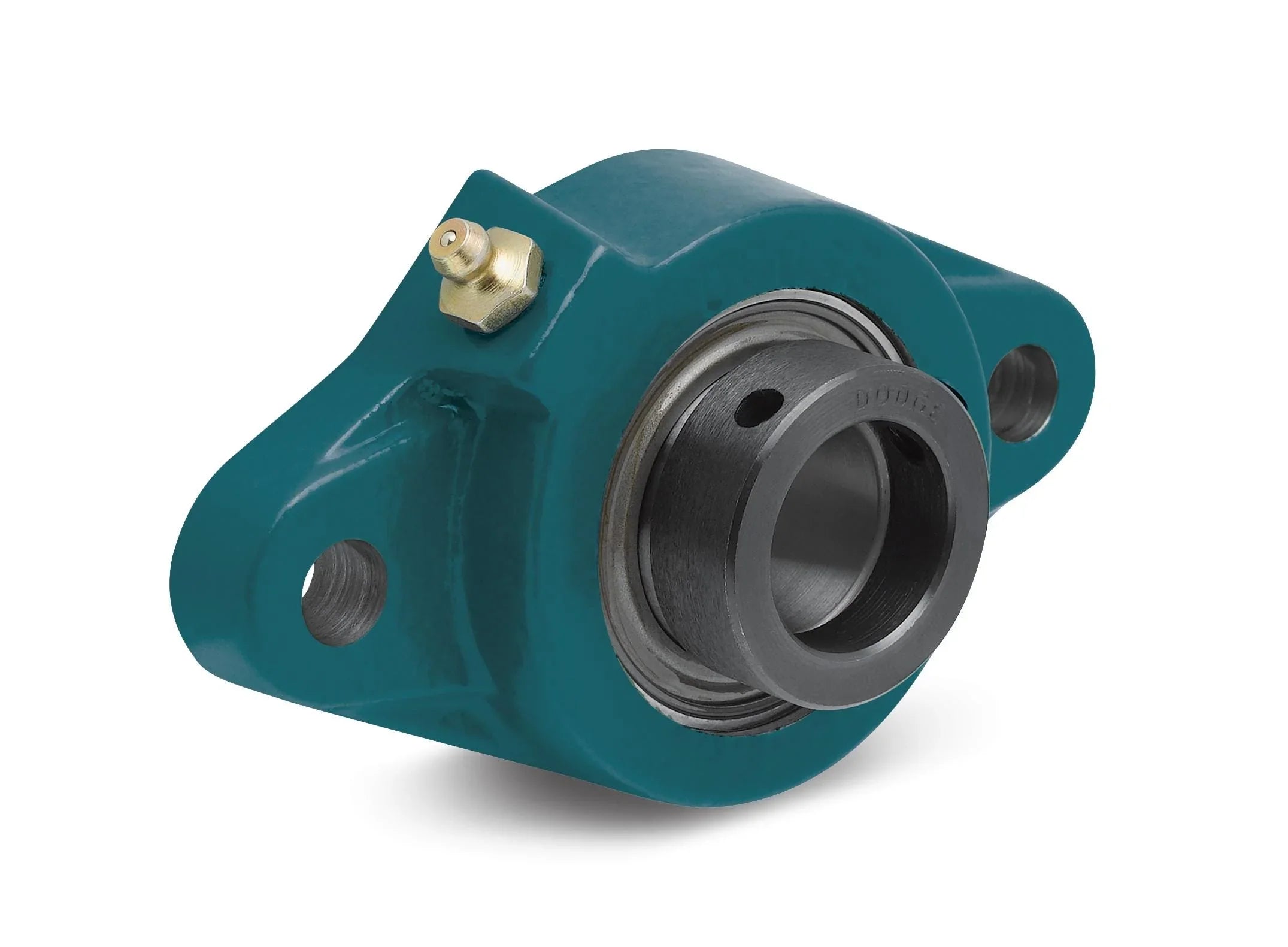

131742 - Dodge - F2B-SXV-102
F2B-SXV-102
Technical Specifications
| Ball Bearing Series | 206 Series |
| Bearing Type | Ball |
| Bolt Diameter | 0.4375 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 4.5900 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 4.5900 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.4100 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/eccentric_collar_sxr/inch/2_bolt_flange/f2b_sxv_hi_asmtab.prj&varset={SERIES=206},{SS=1-1/8},{PN=131742},{DESCRIPTION=F2B-SXV-102},{LF=RE-LUBE},{W=2.3},{A=1.41},{B=5.56},{C=1.67},{D=4.59},{F=7/16},{H=0.50},{J=0.61},{L=1.75},{M=3.13},{N=1.56}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 4368 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Flange |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 4500 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Eccentric Collar |
| Shaft Diameter | 1.1250 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 2538 |
| Static Load Capacity (Unit) | POUND_FORCE |
