131204 - Dodge - WSTU-SXR-012
Regular price
$113.30 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

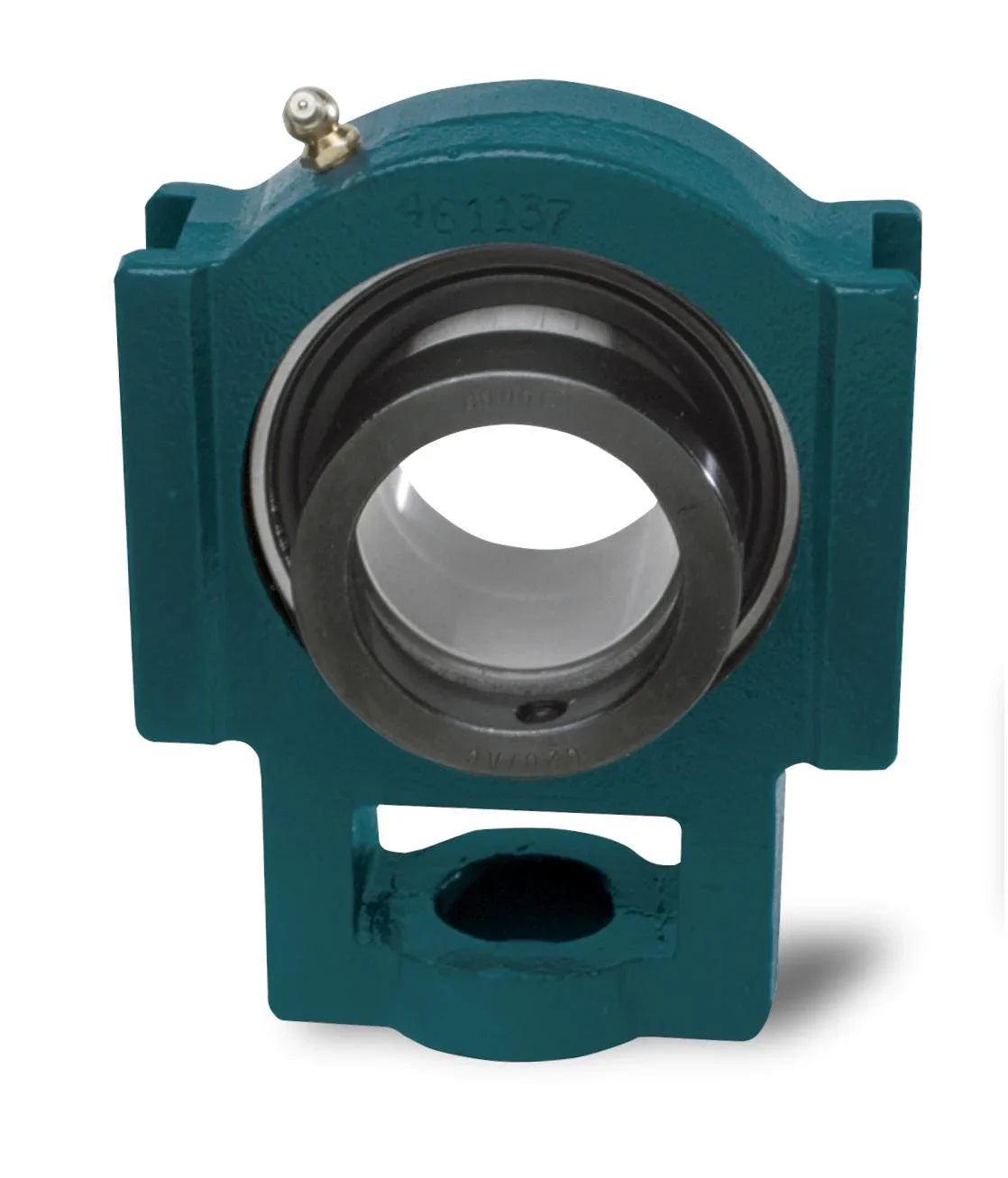

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
131204 - Dodge - WSTU-SXR-012
WSTU-SXR-012
Technical Specifications
| Ball Bearing Series | 204 Series |
| Bearing Type | Ball |
| Bore Length | 1.2200 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/eccentric_collar_sxr/inch/take_up/wstu_sxr_hi_asmtab.prj&varset={SERIES=204},{SS=3/4},{PN=131204},{DESCRIPTION=WSTU-SXR-012},{LF=RE-LUBE},{W=2.1},{FS=WS300},{A=1.55},{B=3.69},{C=0.531},{D=2.00},{E=2.38},{F=5/8},{G=0.38},{H=0.63},{J=2.00},{K=1.25},{L=1.31},{M=2.985/3.015},{N=3.63},{R=0.50},{S=1.05},{T=1.38}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 2899 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Wide-Slot Take-up |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 5000 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Eccentric Collar |
| Shaft Diameter | 0.7500 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 1482 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | WS-300 |
