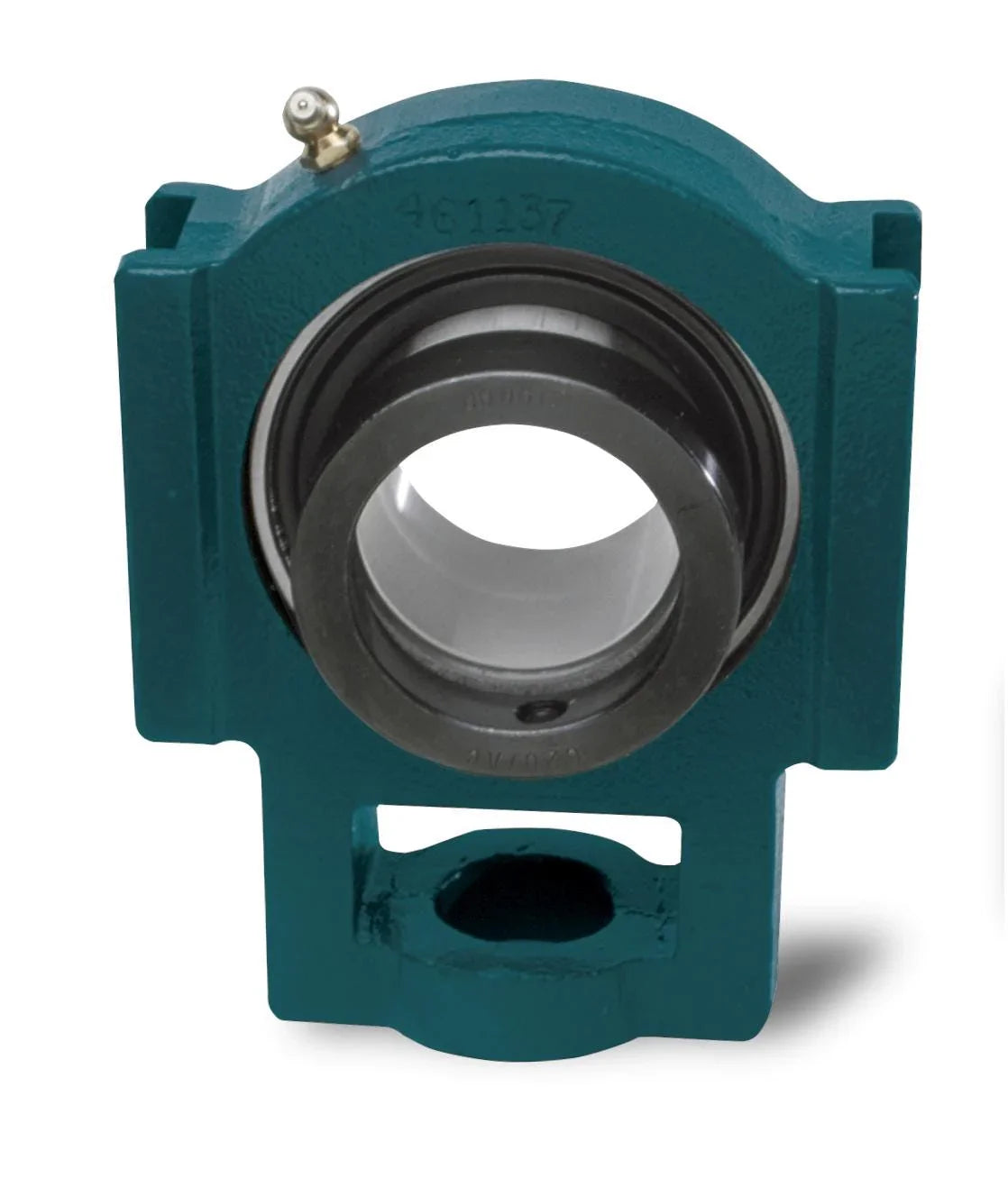

130852 - Dodge - WSTU-SXR-55M
WSTU-SXR-55M
Technical Specifications
| Ball Bearing Series | 211 Series |
| Bearing Type | Ball |
| Bore Length | 2.5900 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/eccentric_collar_sxr/metric/take_up/wstu_sxr_hm_asmtab.prj&varset={SERIES=211},{SS=55},{PN=130852},{DESCRIPTION=WSTU-SXR-55M},{W=4.7},{FS=WS502},{A=65.8},{B=169.9},{C=27.00},{D=95.3},{E=106.4},{F=31.8},{G=19.1},{H=25.4},{J=101.6},{K=63.5},{L=76.2},{M=129.79/130.56},{N=149.4},{R=22.4},{S=43.4},{T=63.5}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 9755 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Wide-Slot Take-up |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 2500 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Eccentric Collar |
| Shaft Diameter | 55.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Static Load Capacity | 6588 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | WS-502 |
