130850 - Dodge - WSTU-SXR-45M
Regular price
$184.99 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

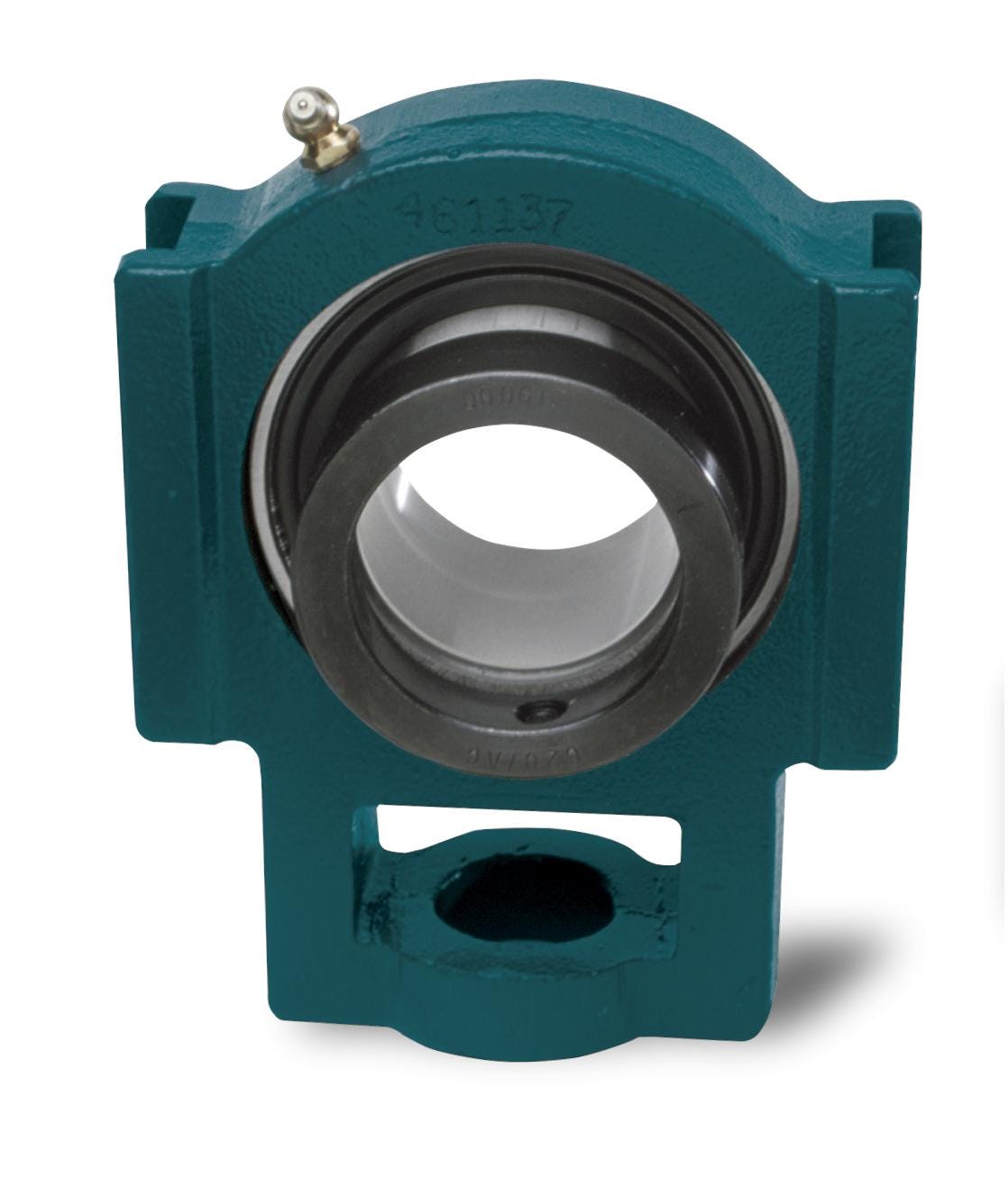

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
130850 - Dodge - WSTU-SXR-45M
WSTU-SXR-45M
Technical Specifications
| Ball Bearing Series | 209 Series |
| Bearing Type | Ball |
| Bore Length | 2.1300 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/eccentric_collar_sxr/metric/take_up/wstu_sxr_hm_asmtab.prj&varset={SERIES=209},{SS=45},{PN=130850},{DESCRIPTION=WSTU-SXR-45M},{W=2.9},{FS=WS400},{A=54.1},{B=143.0},{C=17.48},{D=82.6},{E=87.4},{F=25.4},{G=16.0},{H=19.1},{J=82.6},{K=49.3},{L=63.5},{M=101.22/101.98},{N=120.7},{R=19.1},{S=35.1},{T=49.3}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 7891 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Wide-Slot Take-up |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 3000 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Eccentric Collar |
| Shaft Diameter | 45.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Static Load Capacity | 4906 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | WS-400 |
