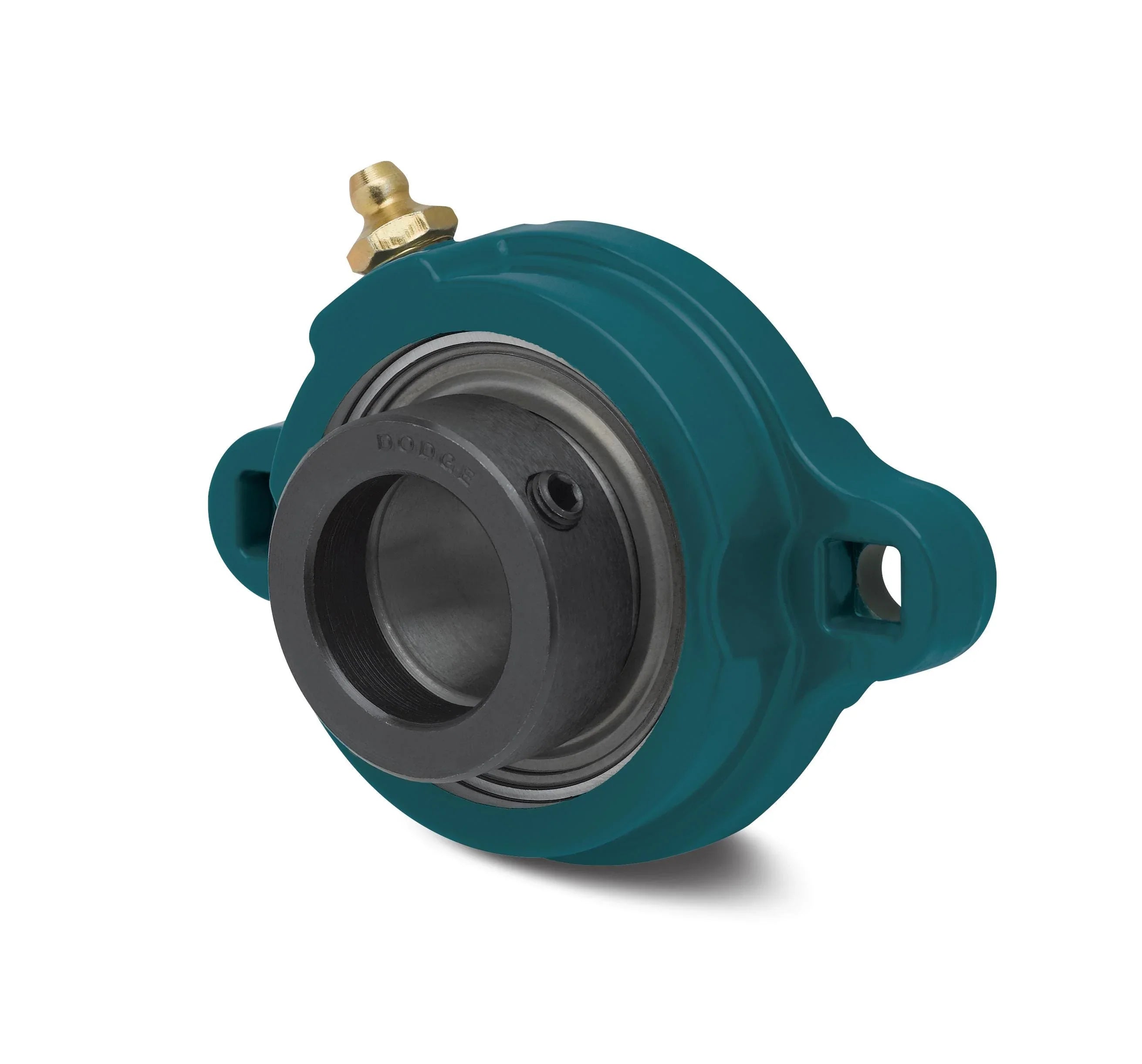

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
130780 - Dodge - LFT-SXV-35M
LFT-SXV-35M
Technical Specifications
| Ball Bearing Series | 207 Series |
| Bearing Type | Ball |
| Bolt Diameter | 0.4063 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 3.9400 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 3.9400 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.5300 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/eccentric_collar_sxr/metric/2_bolt_flange/lft_sxv_hm_asmtab.prj&varset={SERIES=207},{SS=35},{PN=130780},{DESCRIPTION=LFT-SXV-35M},{W=0.8},{A=38.9},{B=122.4},{C=43.7},{D=100.1},{G=10.4},{H=12.7},{J=16.5},{L=54.1},{M=88.9},{N=46.5}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 5759 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Alloy |
| Housing Type | Two-Bolt Flange (Light Duty) |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 3500 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Eccentric Collar |
| Shaft Diameter | 35.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Static Load Capacity | 3461 |
| Static Load Capacity (Unit) | POUND_FORCE |
