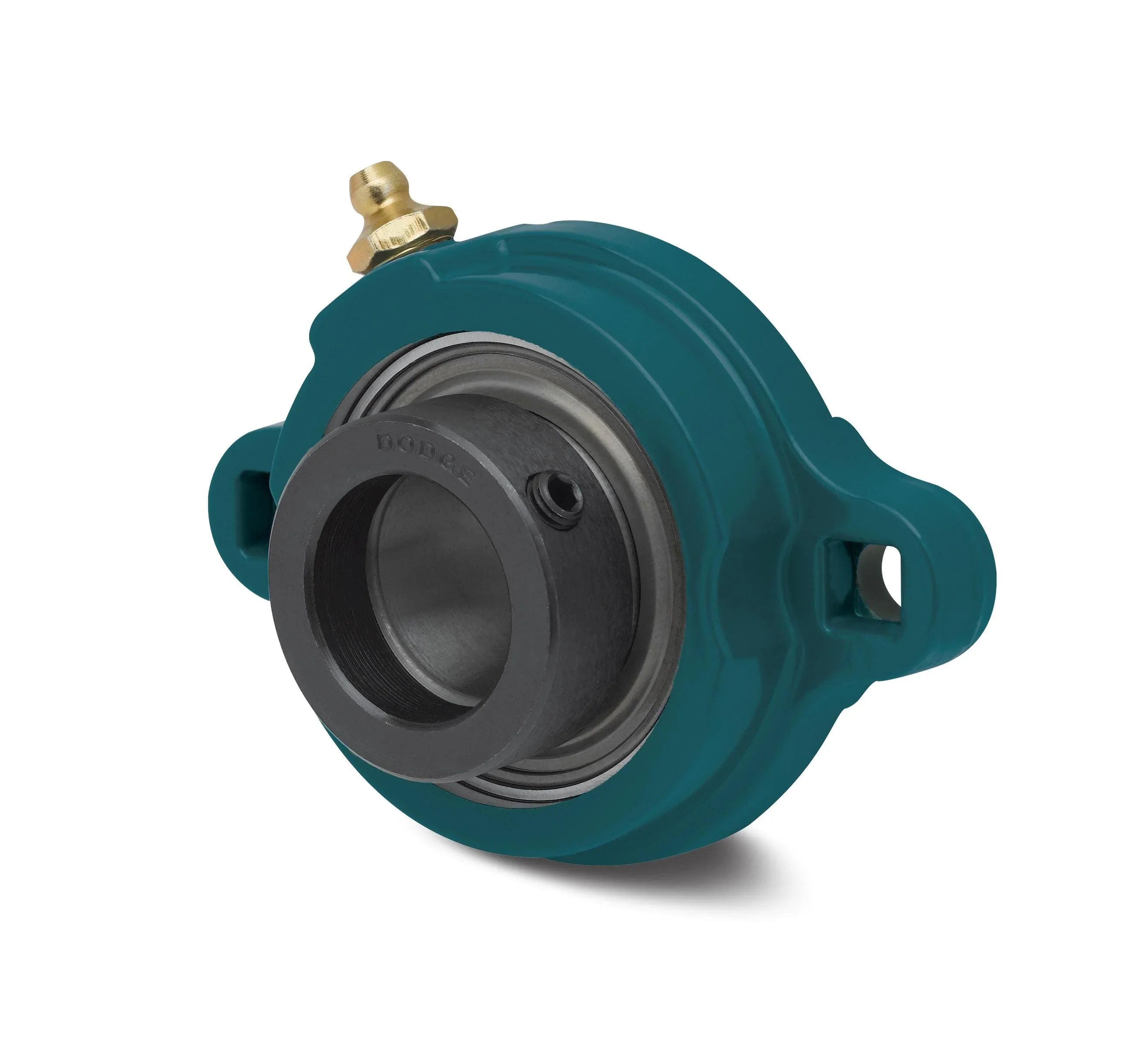

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
130777 - Dodge - LFT-SXV-20M
LFT-SXV-20M
Technical Specifications
| Ball Bearing Series | 204 Series |
| Bearing Type | Ball |
| Bolt Diameter | 0.3438 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 2.8100 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 2.8100 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.2200 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/eccentric_collar_sxr/metric/2_bolt_flange/lft_sxv_hm_asmtab.prj&varset={SERIES=204},{SS=20},{PN=130777},{DESCRIPTION=LFT-SXV-20M},{W=0.4},{A=31.0},{B=90.4},{C=35.8},{D=71.4},{G=8.6},{H=10.7},{J=14.2},{L=33.3},{M=60.5},{N=34.0}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 2899 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Alloy |
| Housing Type | Two-Bolt Flange (Light Duty) |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 5000 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Eccentric Collar |
| Shaft Diameter | 20.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Static Load Capacity | 1482 |
| Static Load Capacity (Unit) | POUND_FORCE |
