130776 - Dodge - LFT-SXV-17M
Regular price
$51.14 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

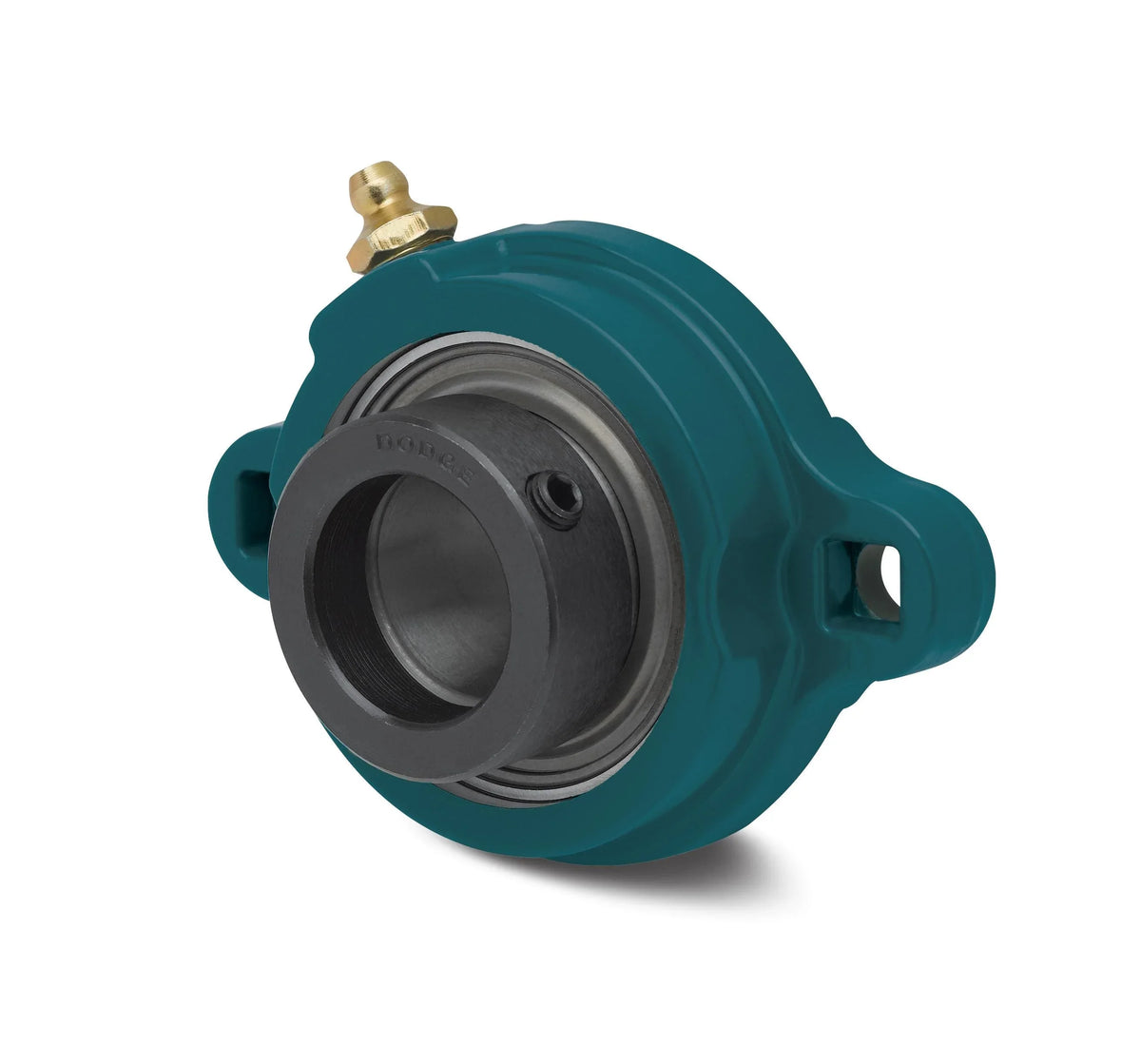

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
130776 - Dodge - LFT-SXV-17M
LFT-SXV-17M
Technical Specifications
| Ball Bearing Series | 203 Series |
| Bearing Type | Ball |
| Bolt Diameter | 0.2813 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 2.5000 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 2.5000 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.1300 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/eccentric_collar_sxr/metric/2_bolt_flange/lft_sxv_hm_asmtab.prj&varset={SERIES=203},{SS=17},{PN=130776},{DESCRIPTION=LFT-SXV-17M},{W=0.3},{A=28.7},{B=81.0},{C=32.5},{D=63.5},{G=7.1},{H=9.7},{J=14.2},{L=28.7},{M=54.1},{N=31.2}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 2158 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Alloy |
| Housing Type | Two-Bolt Flange (Light Duty) |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 5000 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Eccentric Collar |
| Shaft Diameter | 17.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Static Load Capacity | 1079 |
| Static Load Capacity (Unit) | POUND_FORCE |
