130368 - Dodge - F2BZ-SC-25M
Regular price
$95.19 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

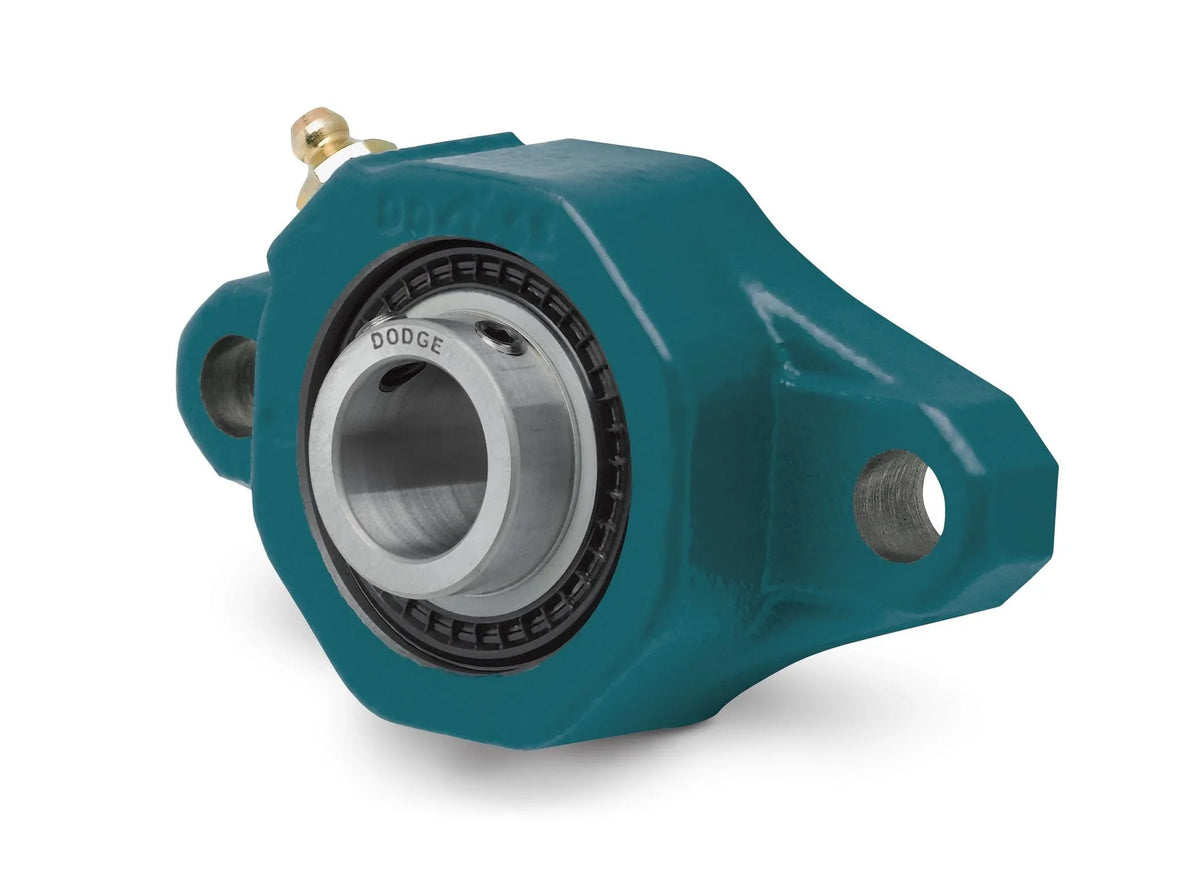

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
130368 - Dodge - F2BZ-SC-25M
F2BZ-SC-25M
Technical Specifications
| Ball Bearing Series | 205 Series |
| Bearing Type | Ball |
| Bolt Diameter | 0.4375 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 3.8900 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 3.8900 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.3400 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/setscrew_sc/metric/2_bolt/f2bz_sc_hm_asmtab.prj&varset={SERIES=205},{SS=25},{PN=130368},{DESCRIPTION=F2BZ-SC-25M},{WEIGHT=0.6},{A=34.0},{B=124.0},{C=38.4},{D=98.8},{E=3.6},{F=M10},{G=34.8},{H=13.2},{J=10.7},{K=59.99 / 59.94},{L=33.5},{M=69.9},{N=36.6}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 3146 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Flange with Pilot |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 4500 |
| Maximum Speed (Unit) | RPM |
| Pilot Depth | 0.1400 |
| Pilot Depth (Unit) | INCH |
| Pilot Diameter | 2.3620 |
| Pilot Diameter (Unit) | INCH |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 25.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Static Load Capacity | 1769 |
| Static Load Capacity (Unit) | POUND_FORCE |
