130346 - Dodge - WSTU-SXV-111
Regular price
$132.35 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

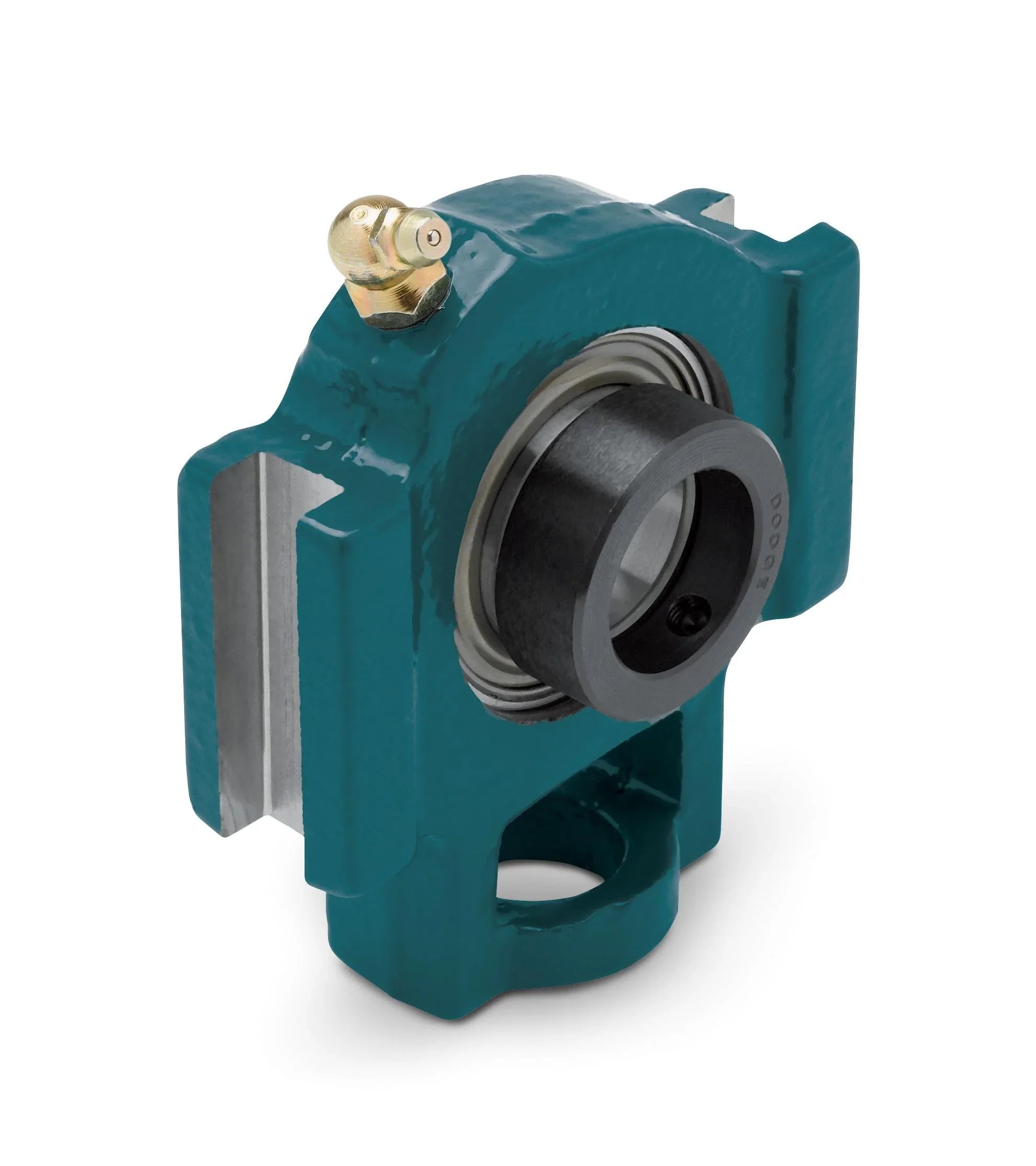

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
130346 - Dodge - WSTU-SXV-111
WSTU-SXV-111
Technical Specifications
| Ball Bearing Series | 209 Series |
| Bearing Type | Ball |
| Bore Length | 1.6900 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/eccentric_collar_sxr/inch/take_up/wstu_sxv_hi_asmtab.prj&varset={SERIES=209},{SS=1-11/16},{PN=130346},{DESCRIPTION=WSTU-SXV-111},{W=4.8},{FS=WS400},{A=1.69},{B=5.63},{C=0.688},{D=3.25},{E=3.44},{F=1},{G=0.63},{H=0.75},{J=3.25},{K=1.94},{L=2.50},{M=3.985 / 4.015},{N=4.75},{R=0.43},{S=1.26},{T=1.94}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 7891 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Wide-Slot Take-up |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 3000 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Eccentric Collar |
| Shaft Diameter | 1.6875 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 4906 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | WS-400 |
