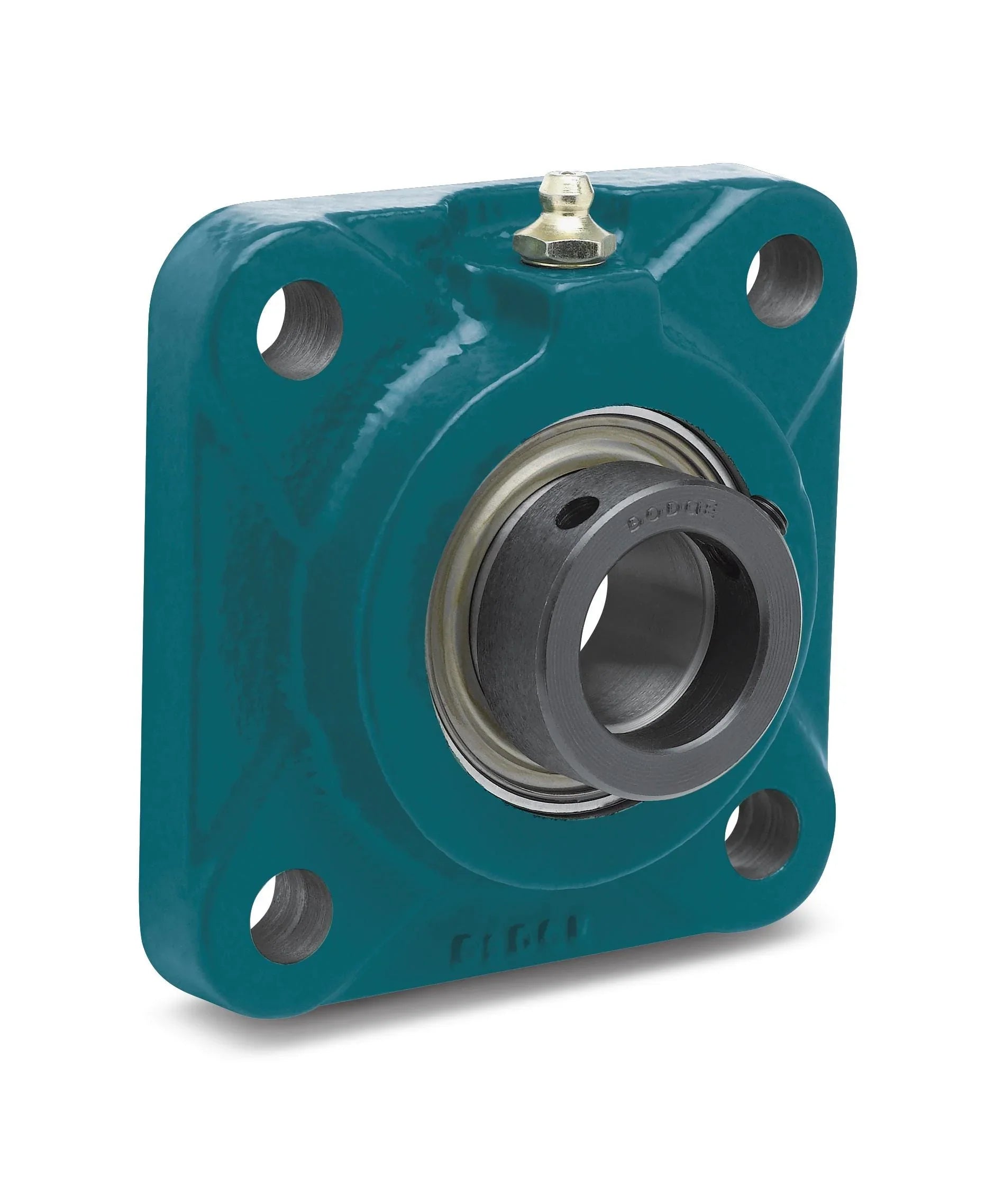

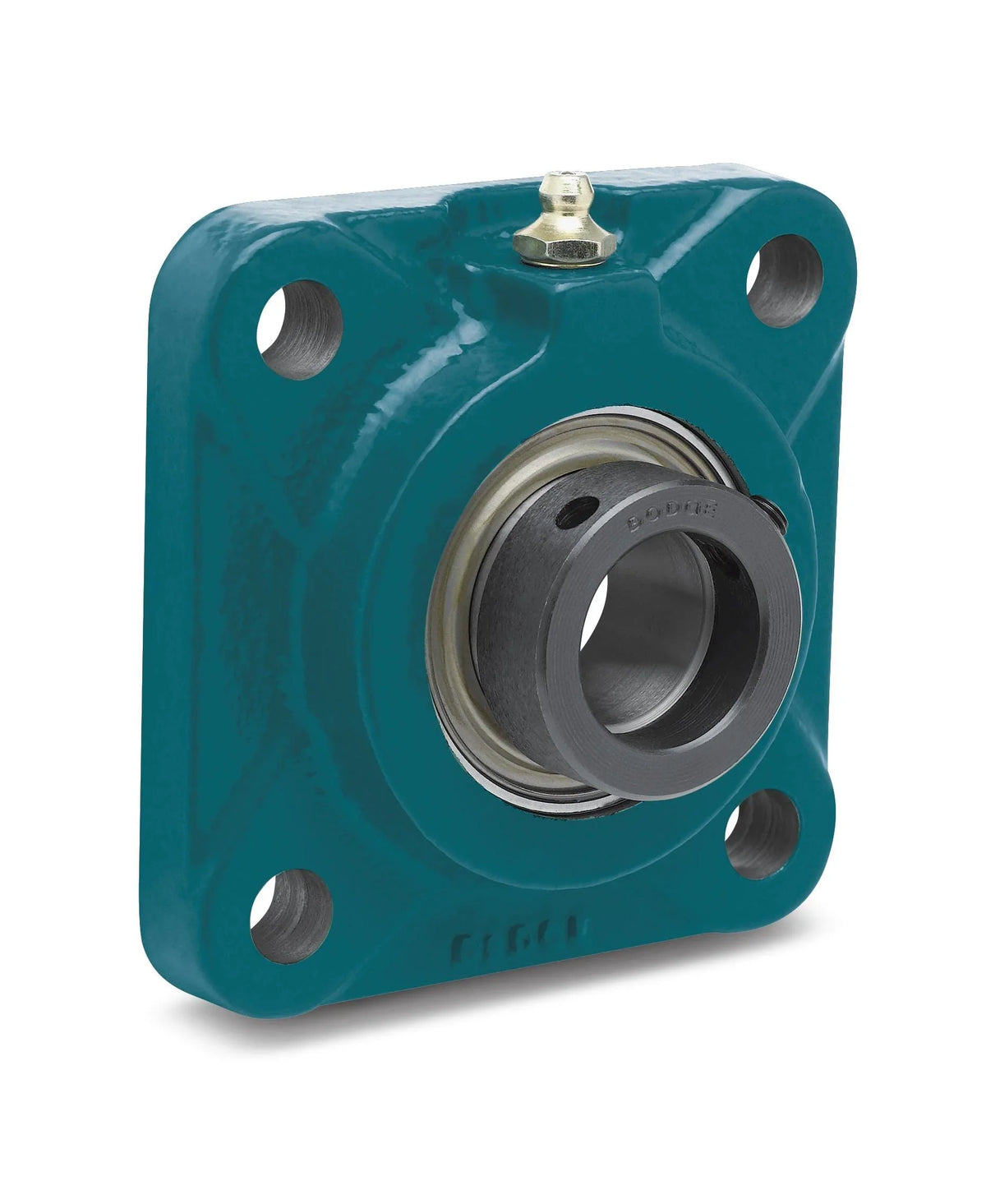

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
130332 - Dodge - F4B-SXV-008
F4B-SXV-008
Technical Specifications
| Ball Bearing Series | 203 Series |
| Bearing Type | Ball |
| Bolt Diameter | 0.3750 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 2.1300 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 2.1300 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.4700 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/eccentric_collar_sxr/inch/4_bolt_flange/f4b_sxv_hi_asmtab.prj&varset={SERIES=203},{SS=1/2},{PN=130332},{DESCRIPTION=F4B-SXV-008},{W=1.1},{A=1.13},{B=3.00},{C=1.40},{D=2.13},{F=3/8},{H=0.44},{J=0.55},{L=1.13},{N=1.69}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 2158 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Flange (Square) |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 5000 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Eccentric Collar |
| Shaft Diameter | 0.5000 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 1079 |
| Static Load Capacity (Unit) | POUND_FORCE |
