129843 - Dodge - P2B-GTU-104S
Regular price
$128.96 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

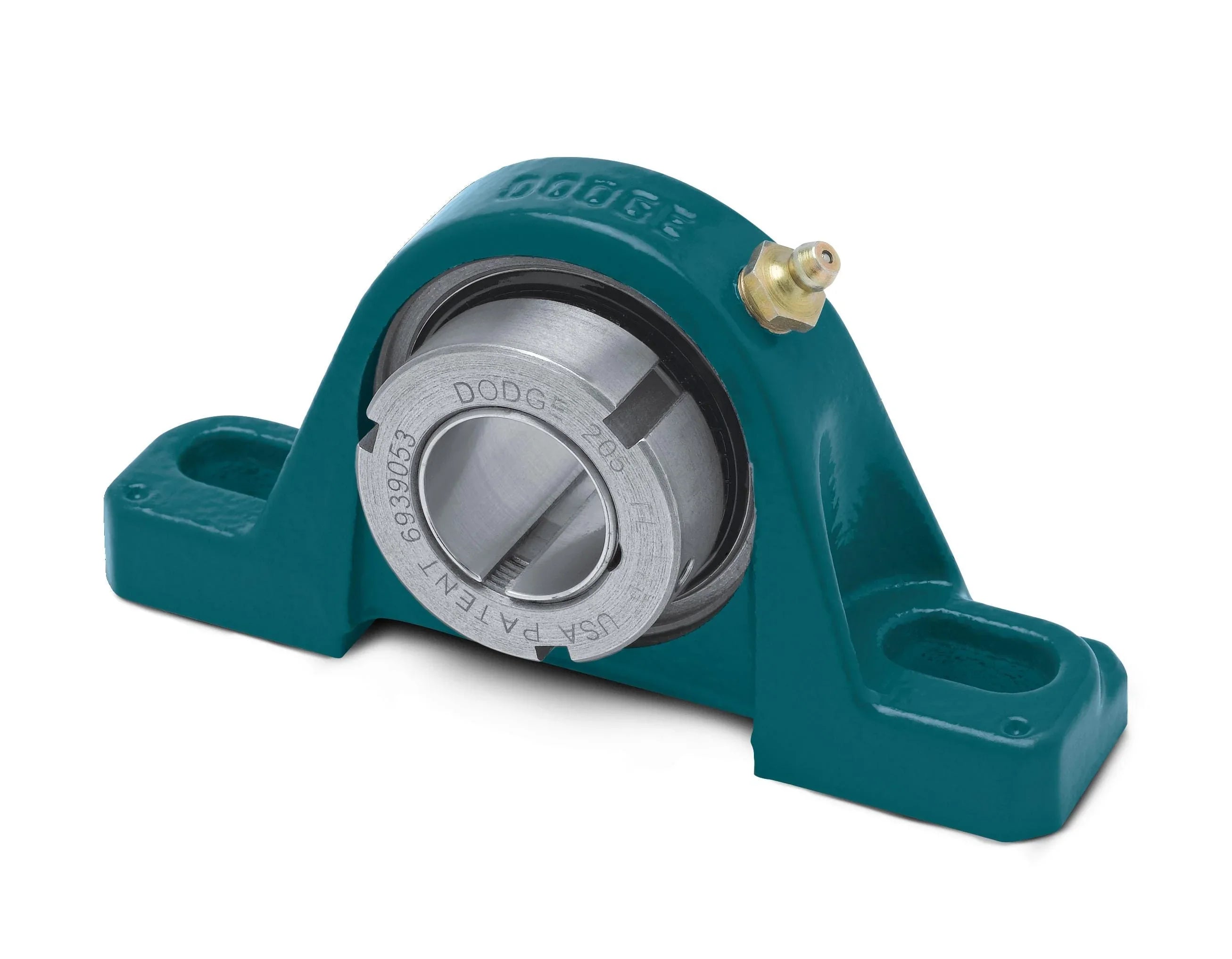

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
129843 - Dodge - P2B-GTU-104S
P2B-GTU-104S
Technical Specifications
| Ball Bearing Series | 206 Series |
| Base to Center Height | 1.6900 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Ball |
| Bolt to Bolt (Max) | 5.0000 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 4.2500 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.6100 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/adapter_mount_grip_tight/inch/p2b_gt_asmtab_i.prj&varset={SERIES=206},{SS=1-1/4},{PN=129843},{DESCRIPTION=P2B-GTU-104S},{A=1-39/64},{B=6-1/4},{C=1-47/64},{DMIN=4-1/4},{DMAX=5},{F=1/2},{G=15/16},{H=45/64},{J=3-1/4},{L=2},{M=1-11/16},{R=17/32},{S=1-5/64},{U=2-7/8},{V=5-3/4},{W=9/16},{X=3/16},{Z=1-1/32}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 4368 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 7500 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 1.2500 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 2538 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | LD-20,TS-250 |
