129770 - Dodge - FC-GTM-215
Regular price
$654.72 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

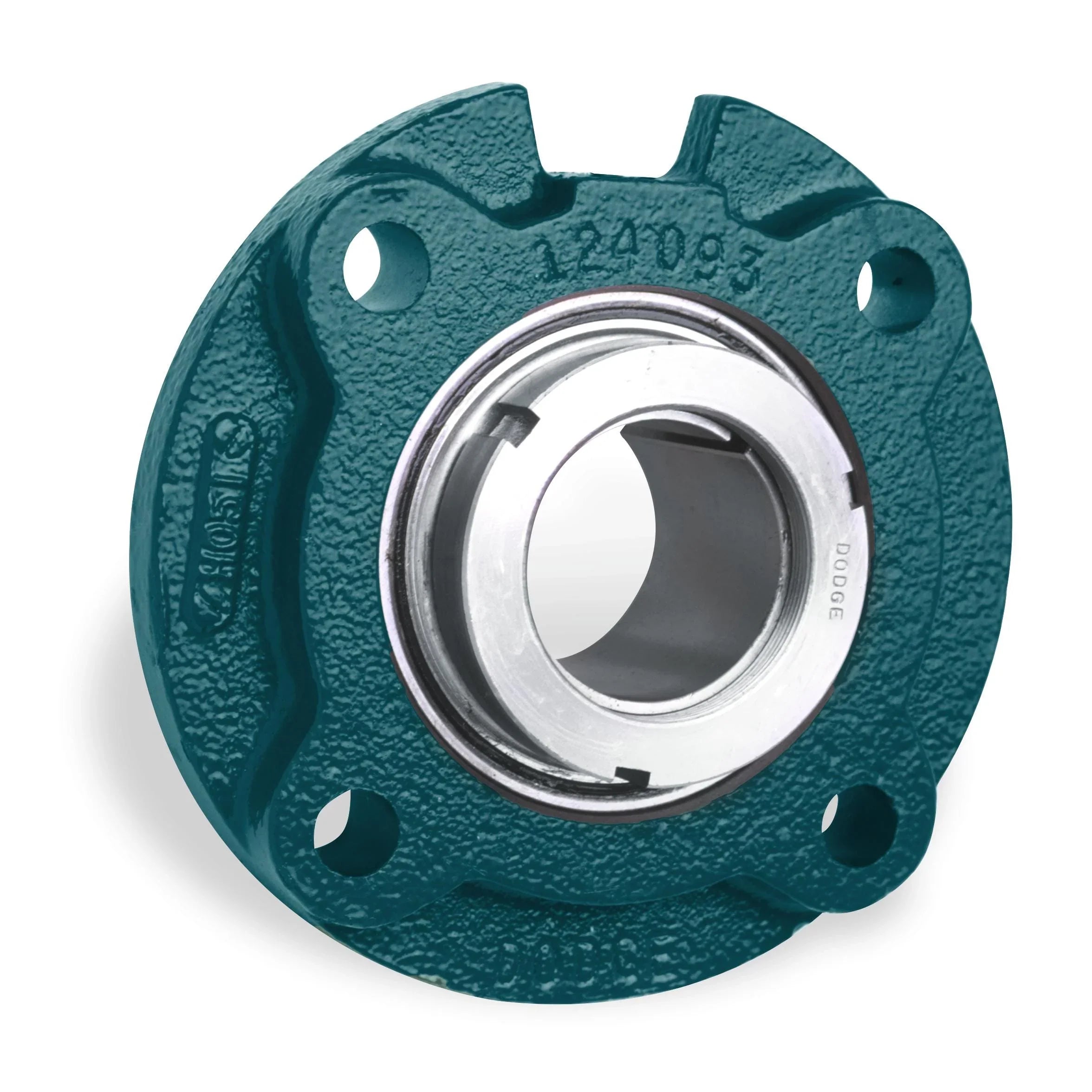

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
129770 - Dodge - FC-GTM-215
FC-GTM-215
Technical Specifications
| Ball Bearing Series | 216 Series |
| Bearing Type | Ball |
| Bolt Circle | 7.5000 |
| Bolt Circle (Unit) | INCH |
| Bore Length | 2.7000 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/adapter_mount_grip_tight/inch/fc_gti_asmtab.prj&varset={SERIES=216},{SS=2-15/16},{PN=129770},{DESCRIPTION=FC-GTM-215},{PNSL=129509},{DESCRIPTIONSL=FC-GT-16},{PNA=136550},{DESCRIPTIONA=AN-GTM-16-215-D},{W=15.9},{A=2.70},{B=8.75},{C=3.33},{D=7.50},{E=1.25},{F=5/8},{G=2.08},{H=1.19},{K=6.375/6.373},{L=4.69},{Z=2.05},{CAPS=11015},{CAPD=17407}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 17407 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Piloted Flange |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 3000 |
| Maximum Speed (Unit) | RPM |
| Pilot Depth | 1.2500 |
| Pilot Depth (Unit) | INCH |
| Pilot Diameter | 6.3750 |
| Pilot Diameter (Unit) | INCH |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 2.9375 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 13102 |
| Static Load Capacity (Unit) | POUND_FORCE |
