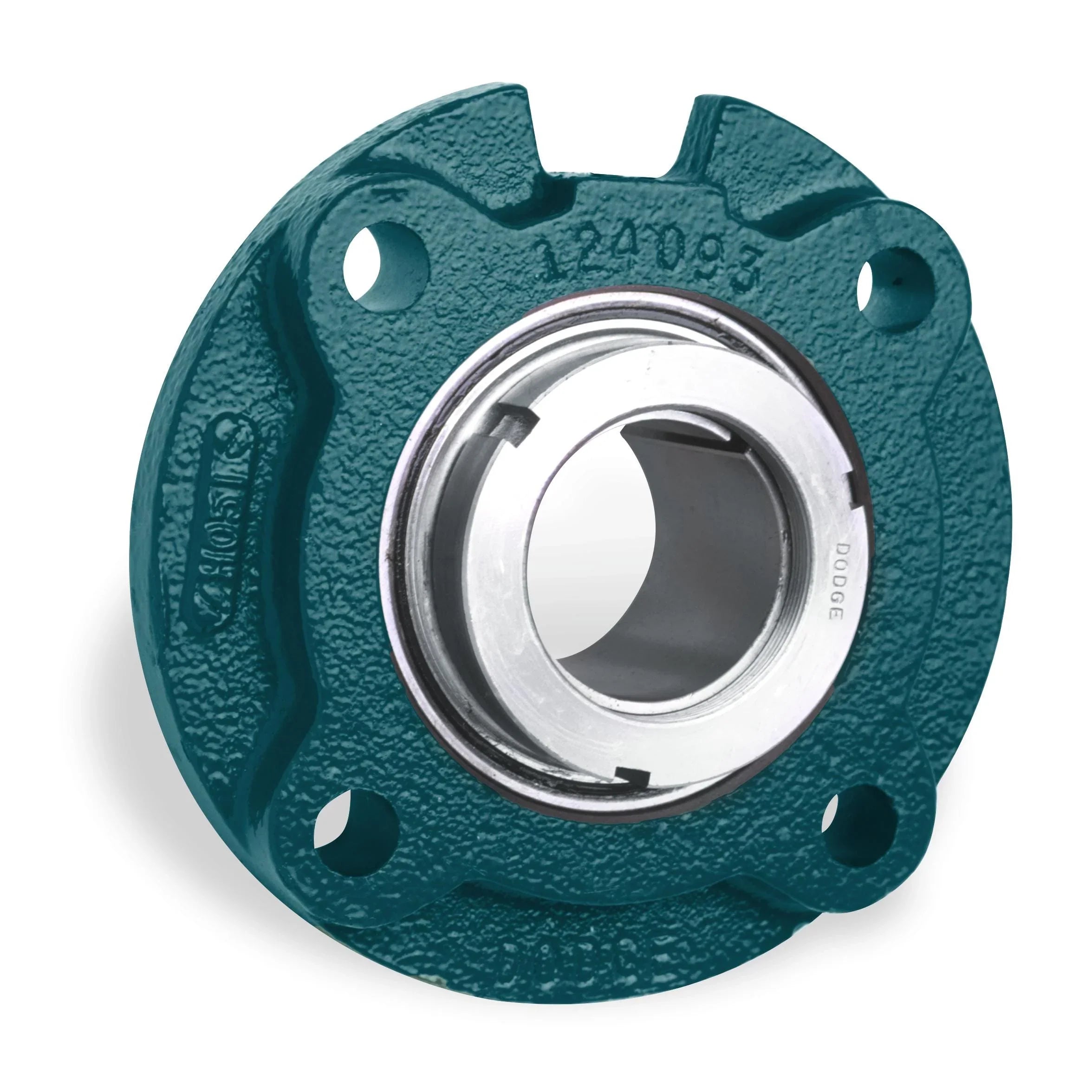

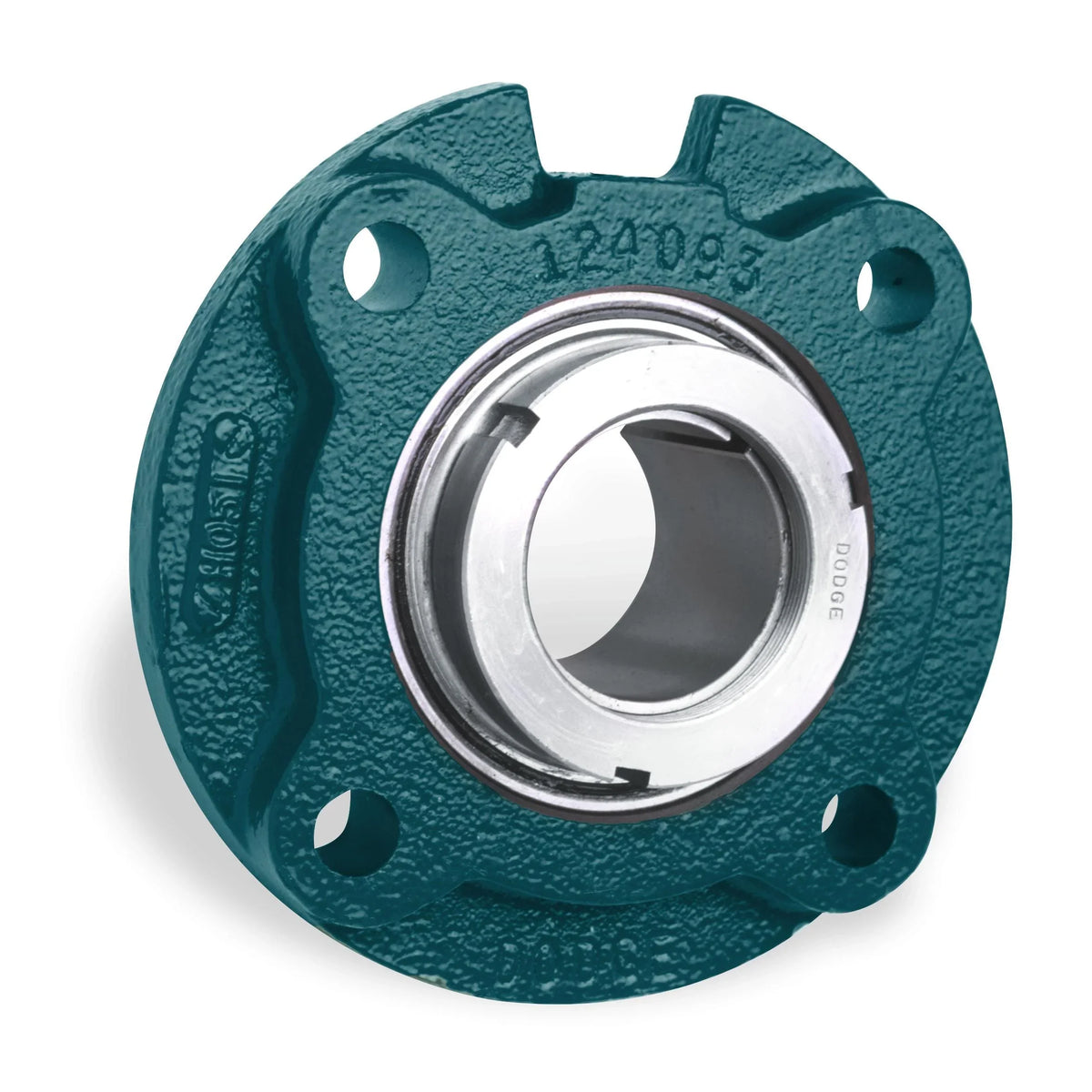

129767 - Dodge - FC-GTM-204
Regular price
$354.02 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
129767 - Dodge - FC-GTM-204
FC-GTM-204
Technical Specifications
| Ball Bearing Series | 212 Series |
| Bearing Type | Ball |
| Bolt Circle | 2.1200 |
| Bolt Circle (Unit) | INCH |
| Bore Length | 2.1200 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/adapter_mount_grip_tight/inch/fc_gti_asmtab.prj&varset={SERIES=212},{SS=2-1/4},{PN=129767},{DESCRIPTION=FC-GTM-204},{PNSL=129507},{DESCRIPTIONSL=FC-GT-12},{PNA=136601},{DESCRIPTIONA=AN-GTM-12-204-D},{W=11.6},{A=2.12},{B=7.13},{C=2.52},{D=6.00},{E=0.88},{F=1/2},{G=1.65},{H=1.00},{K=5.000/4.998},{L=3.69},{Z=1.71},{CAPS=6955},{CAPD=11791}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 11791 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Piloted Flange |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 4000 |
| Maximum Speed (Unit) | RPM |
| Pilot Depth | 0.8800 |
| Pilot Depth (Unit) | INCH |
| Pilot Diameter | 5.0000 |
| Pilot Diameter (Unit) | INCH |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 2.2500 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 8100 |
| Static Load Capacity (Unit) | POUND_FORCE |
