129765 - Dodge - FC-GTM-200
Regular price
$310.62 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

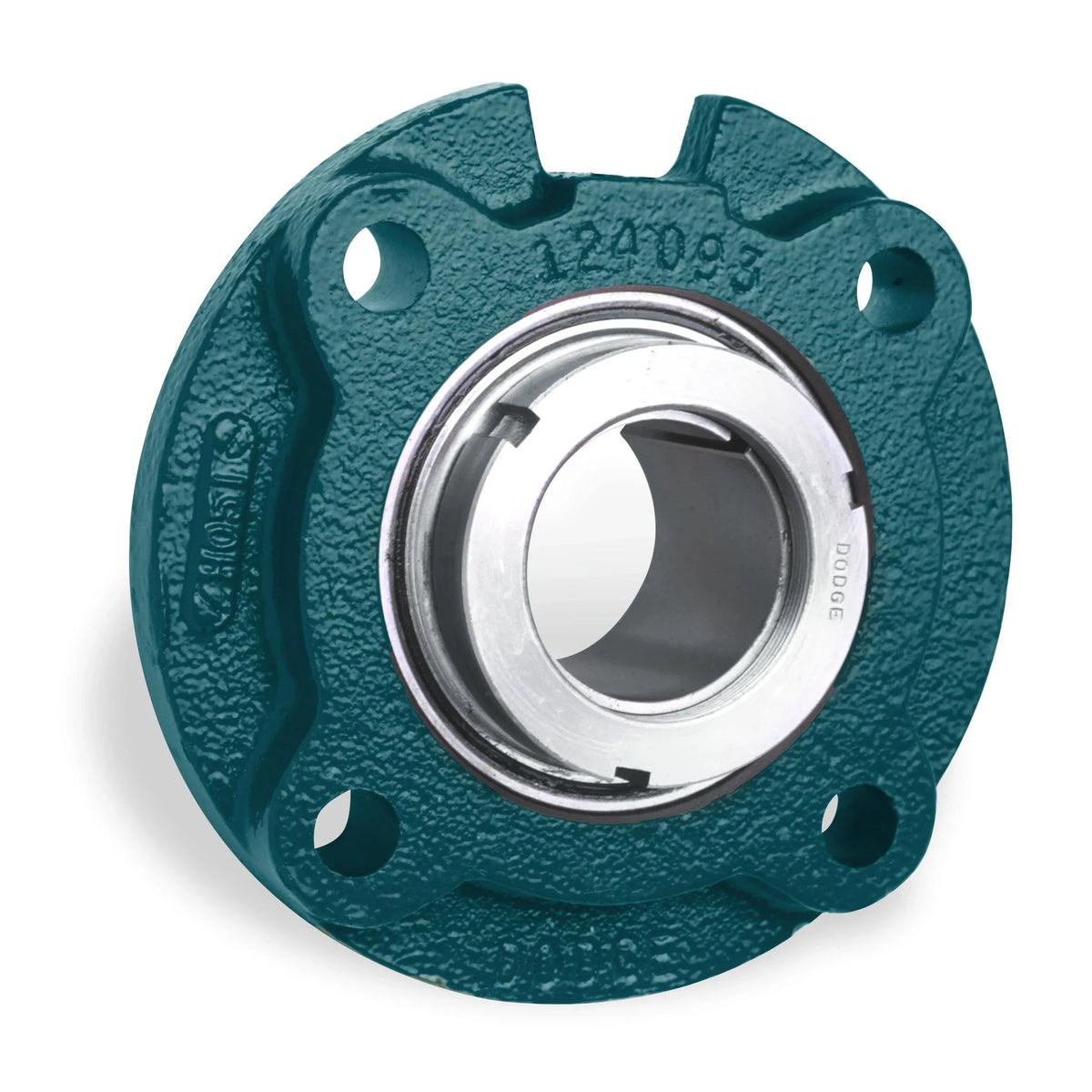

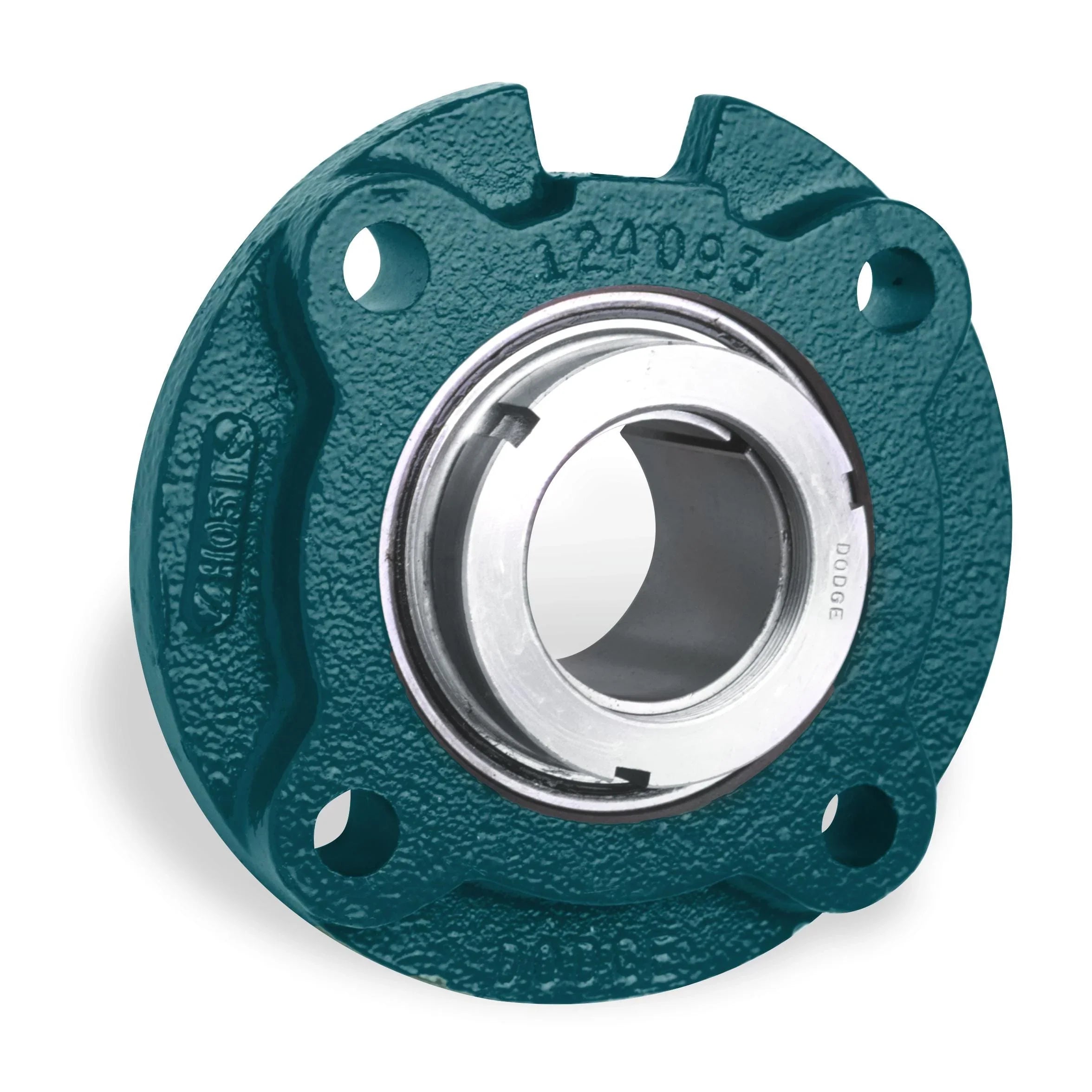

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
129765 - Dodge - FC-GTM-200
FC-GTM-200
Technical Specifications
| Ball Bearing Series | 211 Series |
| Bearing Type | Ball |
| Bolt Circle | 1.9300 |
| Bolt Circle (Unit) | INCH |
| Bore Length | 1.9300 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/adapter_mount_grip_tight/inch/fc_gti_asmtab.prj&varset={SERIES=211},{SS=2},{PN=129765},{DESCRIPTION=FC-GTM-200},{PNSL=129506},{DESCRIPTIONSL=FC-GT-11},{PNA=136600},{DESCRIPTIONA=AN-GTM-11-200-D},{W=8.0},{A=1.93},{B=6.38},{C=2.26},{D=5.38},{E=0.63},{F=1/2},{G=1.63},{H=1.00},{K=4.500/4.498},{L=3.43},{Z=1.69},{CAPS=5630},{CAPD=9975}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 9755 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Piloted Flange |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 4300 |
| Maximum Speed (Unit) | RPM |
| Pilot Depth | 0.6300 |
| Pilot Depth (Unit) | INCH |
| Pilot Diameter | 4.5000 |
| Pilot Diameter (Unit) | INCH |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 2.0000 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 6588 |
| Static Load Capacity (Unit) | POUND_FORCE |
