129762 - Dodge - FC-GTM-111
Regular price
$272.18 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

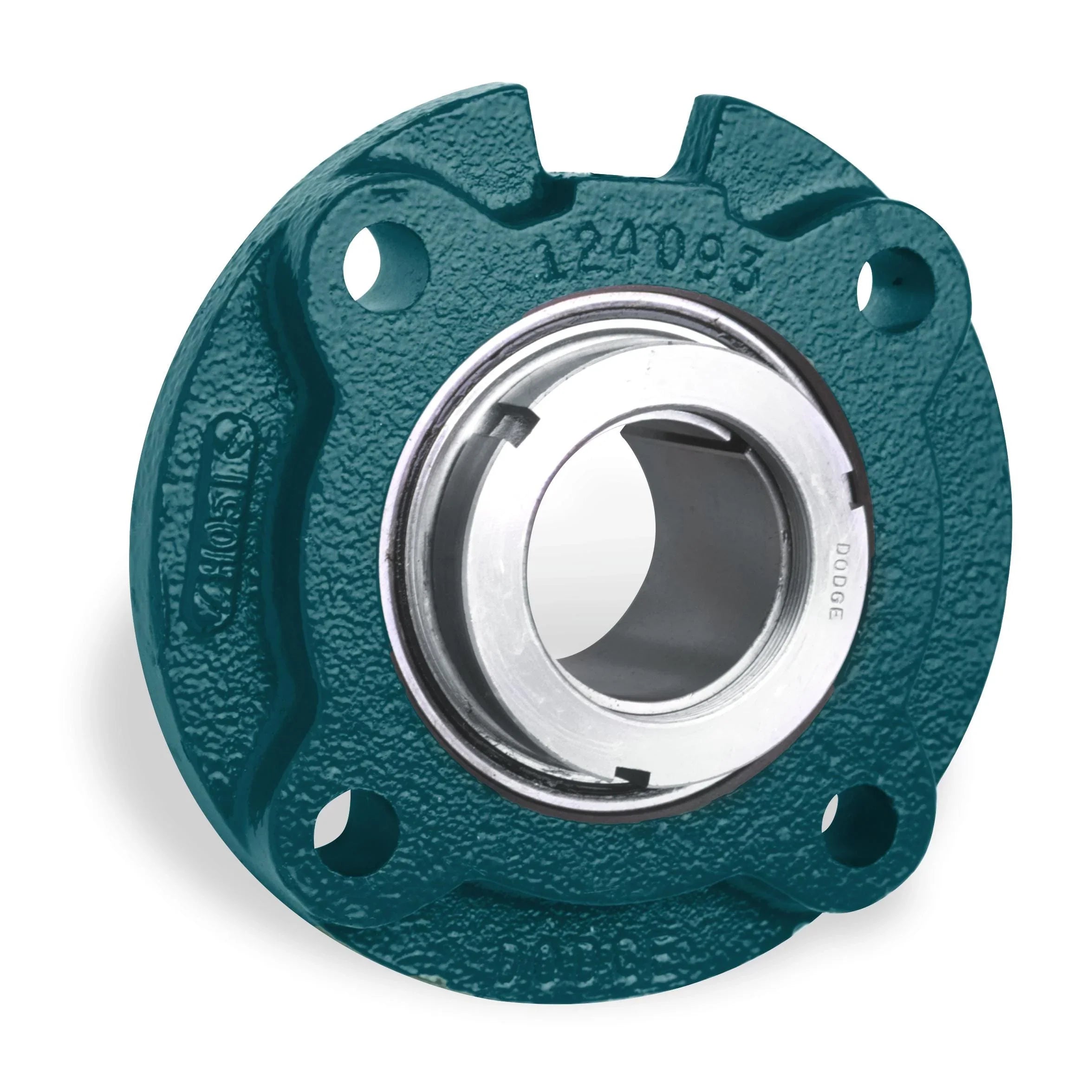

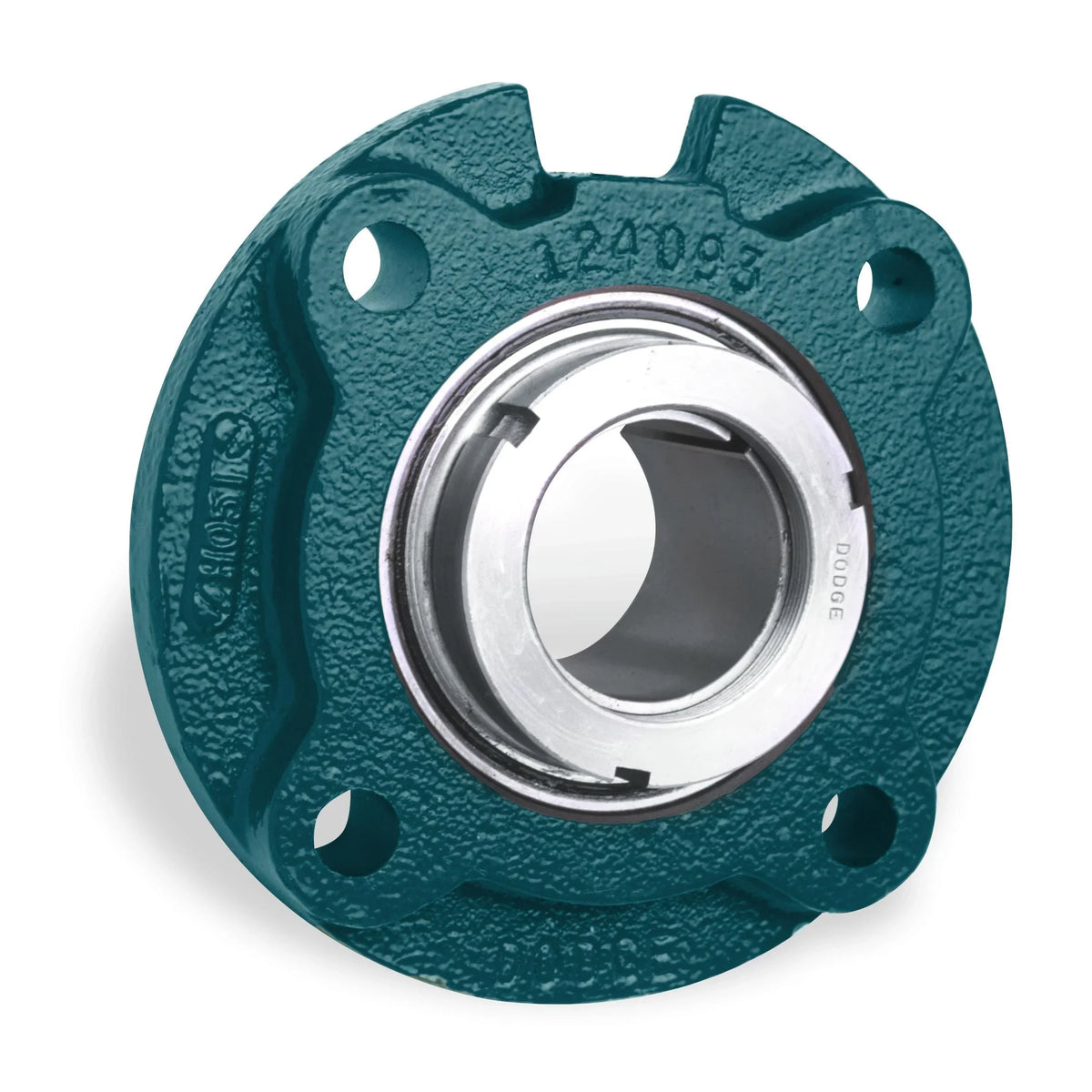

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
129762 - Dodge - FC-GTM-111
FC-GTM-111
Technical Specifications
| Ball Bearing Series | 210 Series |
| Bearing Type | Ball |
| Bolt Circle | 1.8600 |
| Bolt Circle (Unit) | INCH |
| Bore Length | 1.8600 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/adapter_mount_grip_tight/inch/fc_gti_asmtab.prj&varset={SERIES=210},{SS=1-11/16},{PN=129762},{DESCRIPTION=FC-GTM-111},{PNSL=129505},{DESCRIPTIONSL=FC-GT-10},{PNA=136544},{DESCRIPTIONA=AN-GTM-10-111-D},{W=6.2},{A=1.86},{B=6.13},{C=2.02},{D=5.13},{E=0.47},{F=1/2},{G=1.55},{H=0.92},{K=4.250/4.248},{L=3.13},{Z=1.58},{CAPS=4450},{CAPD=7891}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 7891 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Piloted Flange |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 4800 |
| Maximum Speed (Unit) | RPM |
| Pilot Depth | 0.4700 |
| Pilot Depth (Unit) | INCH |
| Pilot Diameter | 4.2500 |
| Pilot Diameter (Unit) | INCH |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 1.6875 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 5213 |
| Static Load Capacity (Unit) | POUND_FORCE |
