129761 - Dodge - FC-GTM-108L
Regular price
$239.32 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

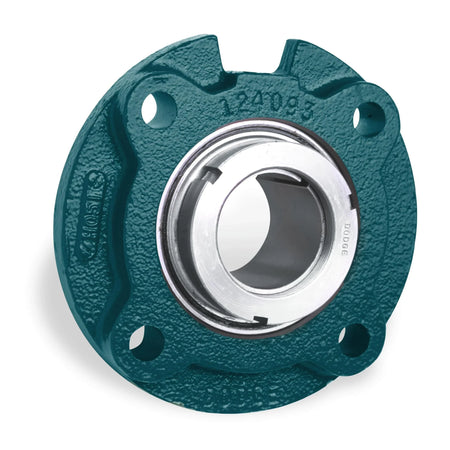

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
129761 - Dodge - FC-GTM-108L
FC-GTM-108L
Technical Specifications
| Ball Bearing Series | 209 Series |
| Bearing Type | Ball |
| Bolt Circle | 1.8500 |
| Bolt Circle (Unit) | INCH |
| Bore Length | 1.8500 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/adapter_mount_grip_tight/inch/fc_gti_asmtab.prj&varset={SERIES=209},{SS=1-1/2},{PN=129761},{DESCRIPTION=FC-GTM-108L},{PNSL=129504},{DESCRIPTIONSL=FC-GT-09},{PNA=136598},{DESCRIPTIONA=AN-GTM-09-108-D},{W=6.1},{A=1.85},{B=5.75},{C=1.97},{D=4.75},{E=0.44},{F=1/2},{G=1.53},{H=0.91},{K=4.000/3.998},{L=2.86},{Z=1.57},{CAPS=4450},{CAPD=7891}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 7891 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Piloted Flange |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 4800 |
| Maximum Speed (Unit) | RPM |
| Pilot Depth | 0.4400 |
| Pilot Depth (Unit) | INCH |
| Pilot Diameter | 4.0000 |
| Pilot Diameter (Unit) | INCH |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 1.5000 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 4906 |
| Static Load Capacity (Unit) | POUND_FORCE |
