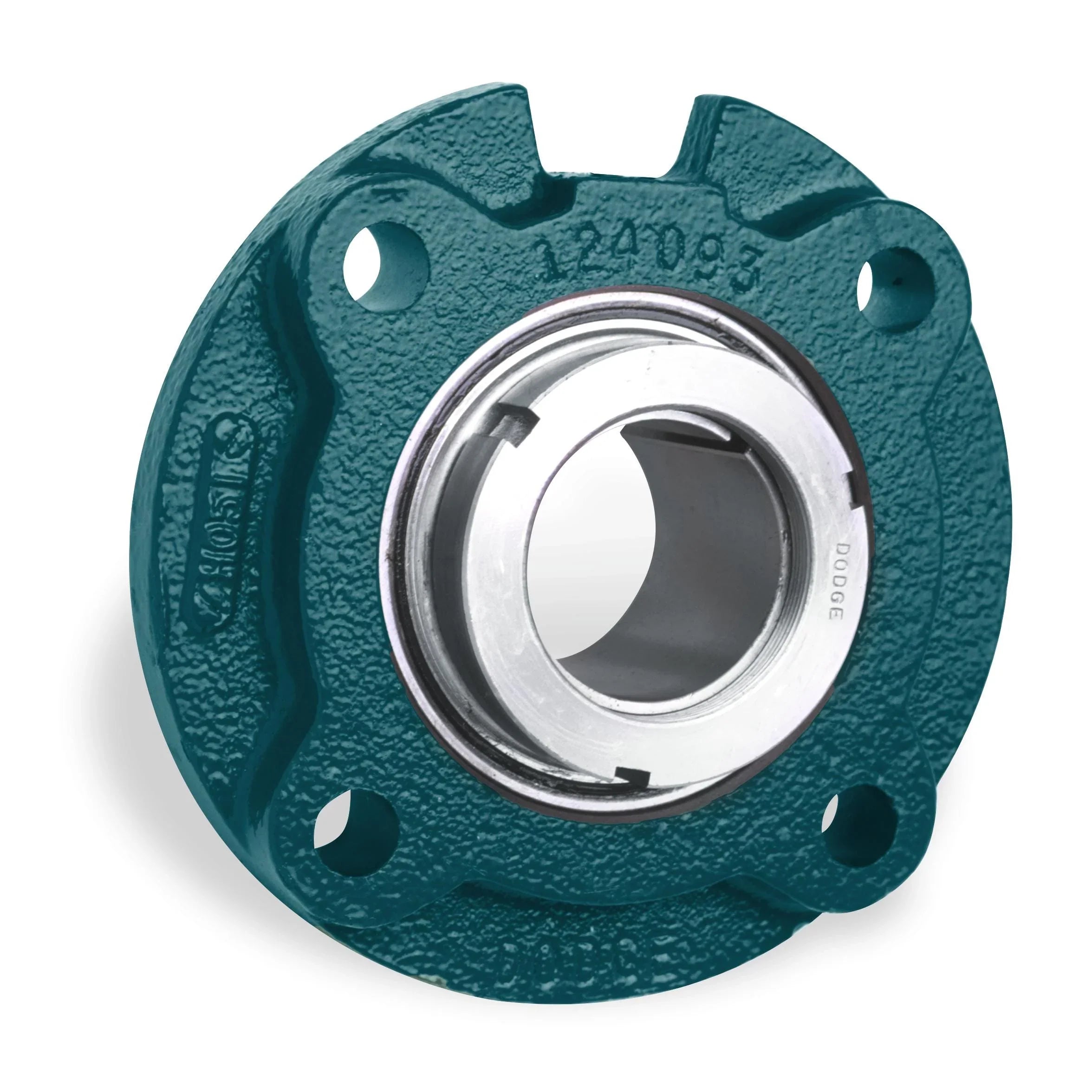

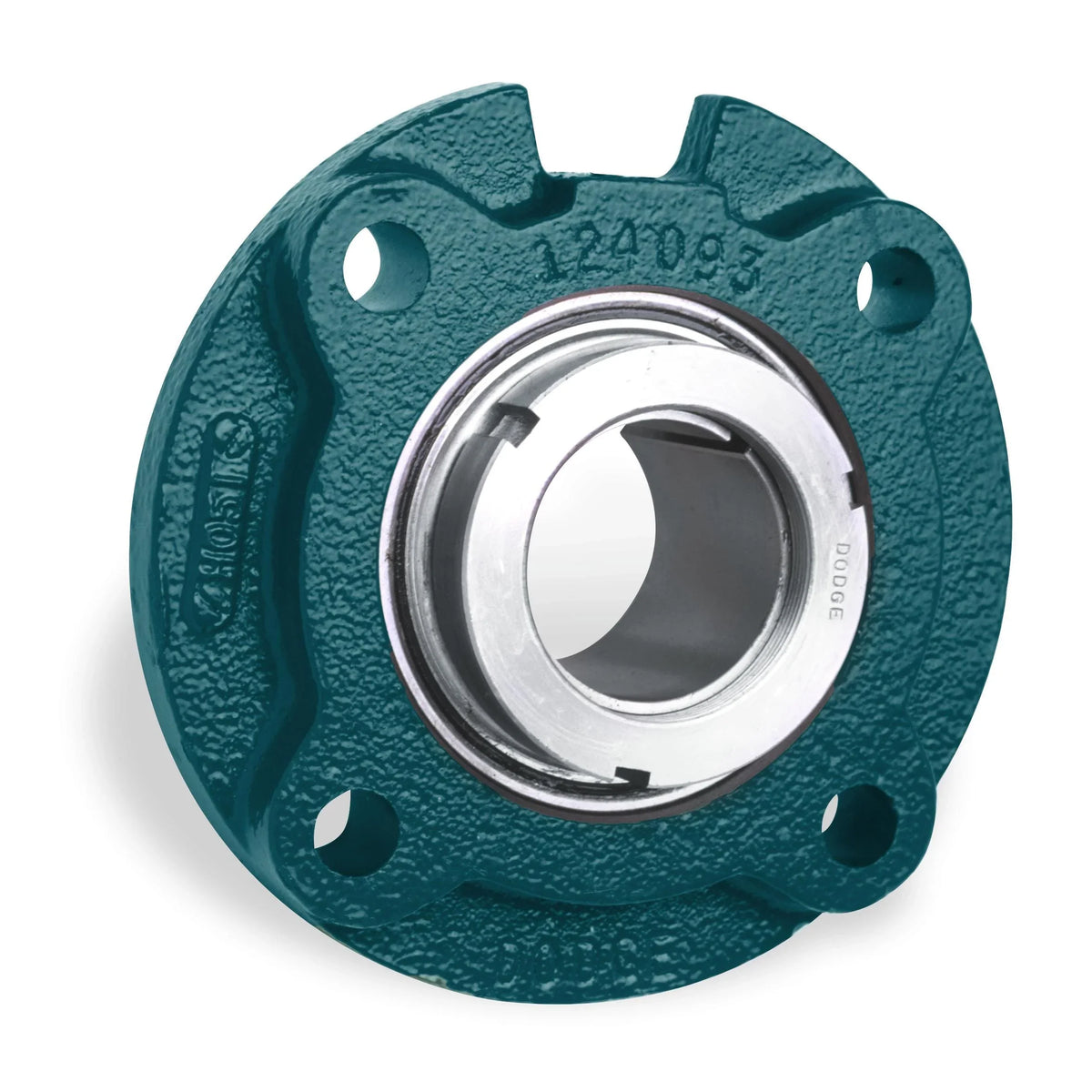

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
129760 - Dodge - FC-GTM-107
FC-GTM-107
Technical Specifications
| Ball Bearing Series | 208 Series |
| Bearing Type | Ball |
| Bolt Circle | 1.8400 |
| Bolt Circle (Unit) | INCH |
| Bore Length | 1.8400 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/adapter_mount_grip_tight/inch/fc_gti_asmtab.prj&varset={SERIES=208},{SS=1-7/16},{PN=129760},{DESCRIPTION=FC-GTM-107},{PNSL=129503},{DESCRIPTIONSL=FC-GT-08},{PNA=136543},{DESCRIPTIONA=AN-GTM-08-107-D},{W=5.1},{A=1.84},{B=5.25},{C=2.01},{D=4.38},{E=0.44},{F=7/16},{G=1.58},{H=0.89},{K=3.625/3.623},{L=2.62},{Z=1.58},{CAPS=4005},{CAPD=7332}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 5759 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Piloted Flange |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 5600 |
| Maximum Speed (Unit) | RPM |
| Pilot Depth | 0.4400 |
| Pilot Depth (Unit) | INCH |
| Pilot Diameter | 3.6250 |
| Pilot Diameter (Unit) | INCH |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 1.4375 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 3461 |
| Static Load Capacity (Unit) | POUND_FORCE |
