129755 - Dodge - FC-GT-55M
Regular price
$310.62 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.

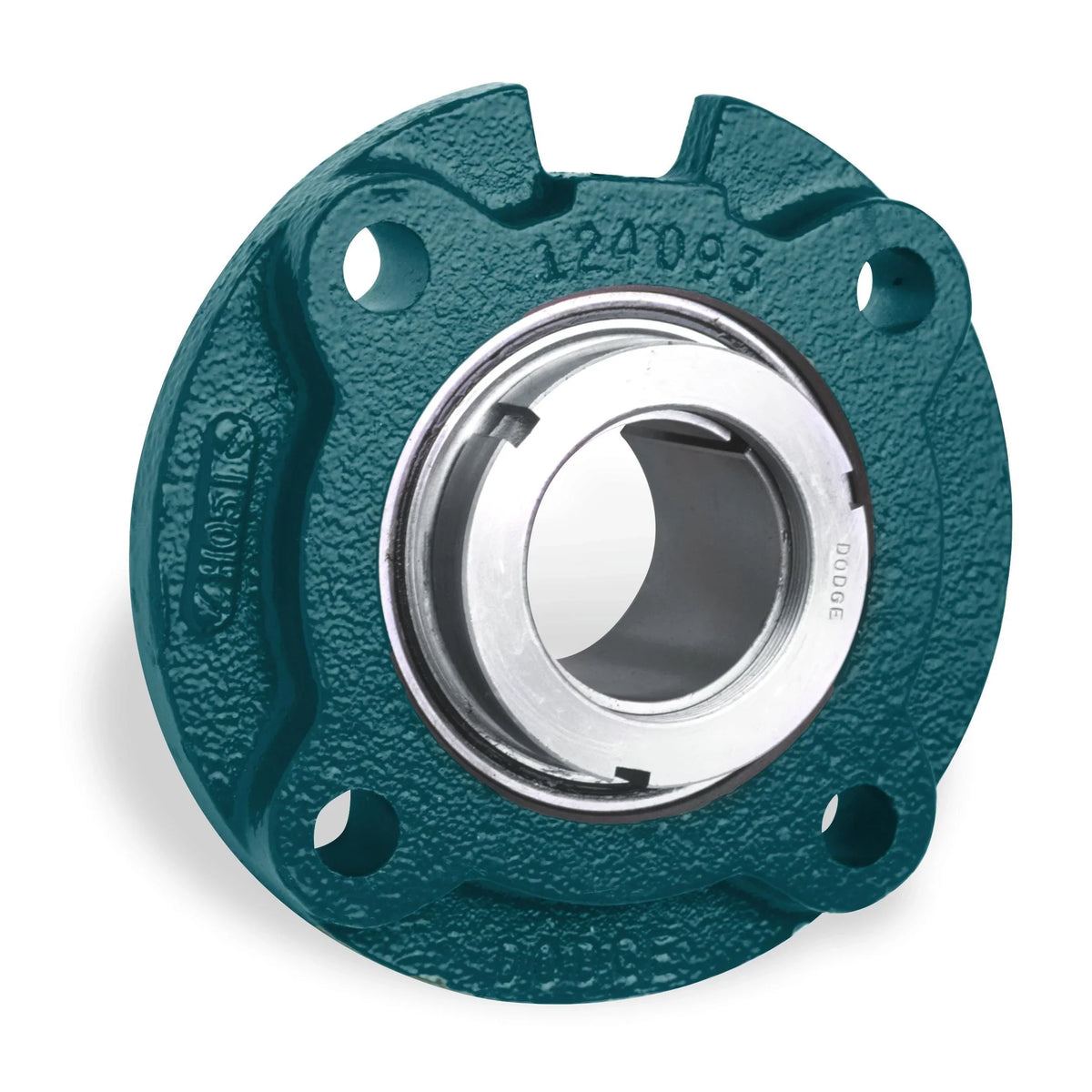

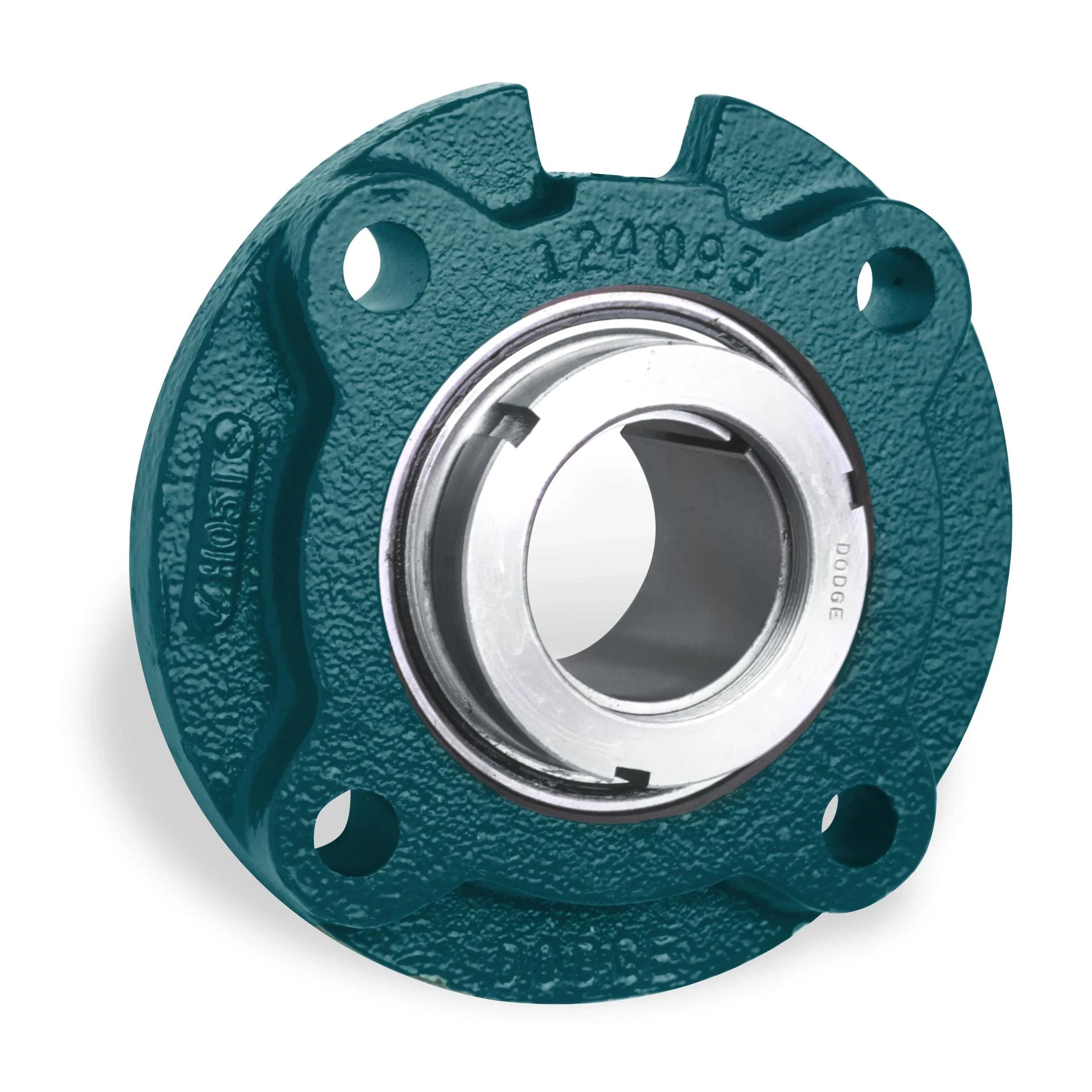

FC-GT-55M
Dodge Mounted Bearing Resources
Mounted Bearings Solution Guide (PDF)Mounted Bearings Nomenclature Chart (PDF)Mounted Bearings Catalog (PDF)| Specifications | |
|---|---|
| Ball Bearing Series | 211 Series |
| Bearing Type | Ball |
| Bolt Circle | 49.022 mm |
| Bore Length | 49.022 mm |
| Dynamic Load Capacity | 43392 N |
| Expansion Capability | Non-Expansion (Fixed) |
| Greasable | Yes |
| Grease Name | Unirex N2 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Piloted Flange |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 4500 RPM |
| Pilot Depth | 406.4508 mm |
| Pilot Diameter | 114.3 mm |
| Seal Type | Single-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 55 mm |
| Standoff Housing | No |
| Static Load Capacity | 29305 N |
| Suitable for High Temperature | No |
| Suitable For Washdown | No |
