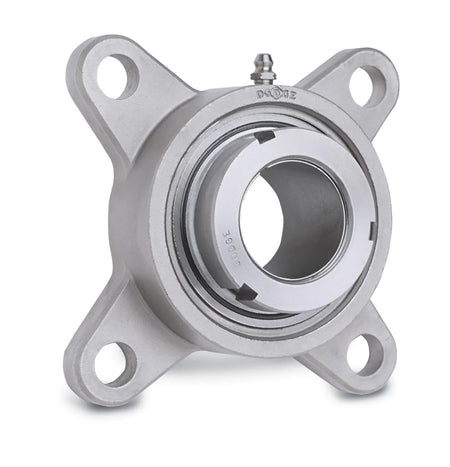

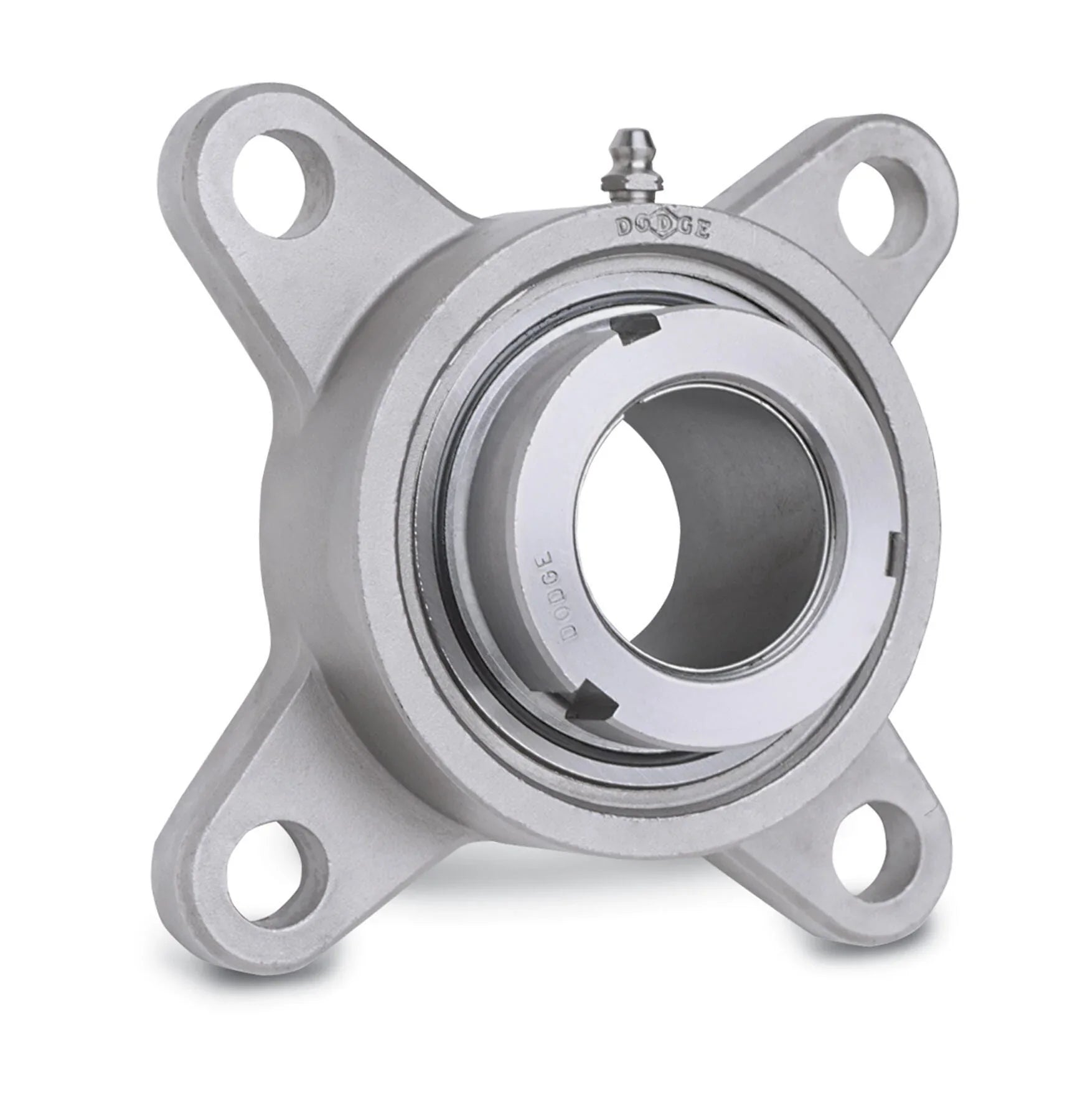

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
129727 - Dodge - F4B-GTEZ-30M-SHCR
F4B-GTEZ-30M-SHCR
Technical Specifications
| Bearing Type | Ball |
| Bolt to Bolt (Max) | 3.2400 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 3.2400 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.6100 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/washdown/ez_kleen/f4b_gtez_shcr_asmtab.prj&varset={SERIES=206},{SS=30},{PN=129727},{DESCRIPTION=F4B-GTEZ-30M-SHCR},{A=40.9},{B=105.6},{C=44.1},{D=82.6},{F=M10},{H=9.1},{J=13.9},{L=50.8},{Z=42.9}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 4368 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Housing Construction | Solid |
| Housing Material | Stainless Steel |
| Housing Type | Four-Bolt Flange (Square) |
| Insert Material | Plated Steel |
| Lubrication | Grease |
| Maximum Speed | 6000 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 30.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Static Load Capacity | 2538 |
| Static Load Capacity (Unit) | POUND_FORCE |
