129726 - Dodge - F4B-GTEZ-104S-SHCR
Regular price
$280.66 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

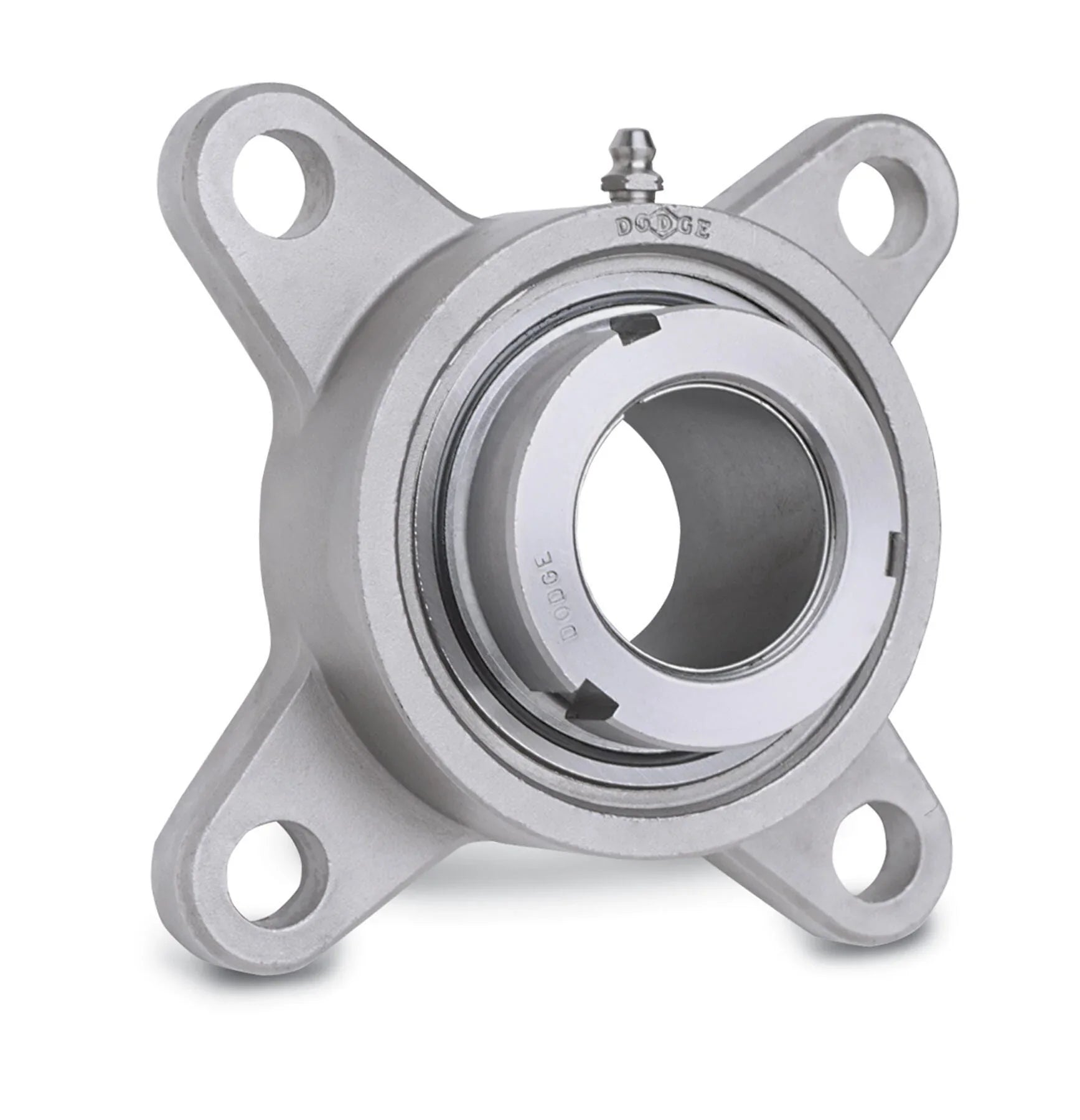

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
129726 - Dodge - F4B-GTEZ-104S-SHCR
F4B-GTEZ-104S-SHCR
Technical Specifications
| Bearing Type | Ball |
| Bolt to Bolt (Max) | 3.2400 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 3.2400 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.6100 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/washdown/ez_kleen/f4b_gtez_shci_asmtab.prj&varset={SERIES=206},{SS=1-1/4},{PN=129726},{DESCRIPTION=F4B-GTEZ-104S-SHCR},{A=1-39/64},{B=4-5/32},{C=1-47/64},{D=3-1/4},{F=3/8},{H=23/64},{J=35/64},{L=2},{Z=1-11/16}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 4368 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Housing Construction | Solid |
| Housing Material | Stainless Steel |
| Housing Type | Four-Bolt Flange (Square) |
| Insert Material | Plated Steel |
| Lubrication | Grease |
| Maximum Speed | 6000 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 1.2500 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 2538 |
| Static Load Capacity (Unit) | POUND_FORCE |
