129719 - Dodge - F4B-GTEZ-115-PCR
Regular price
$412.65 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

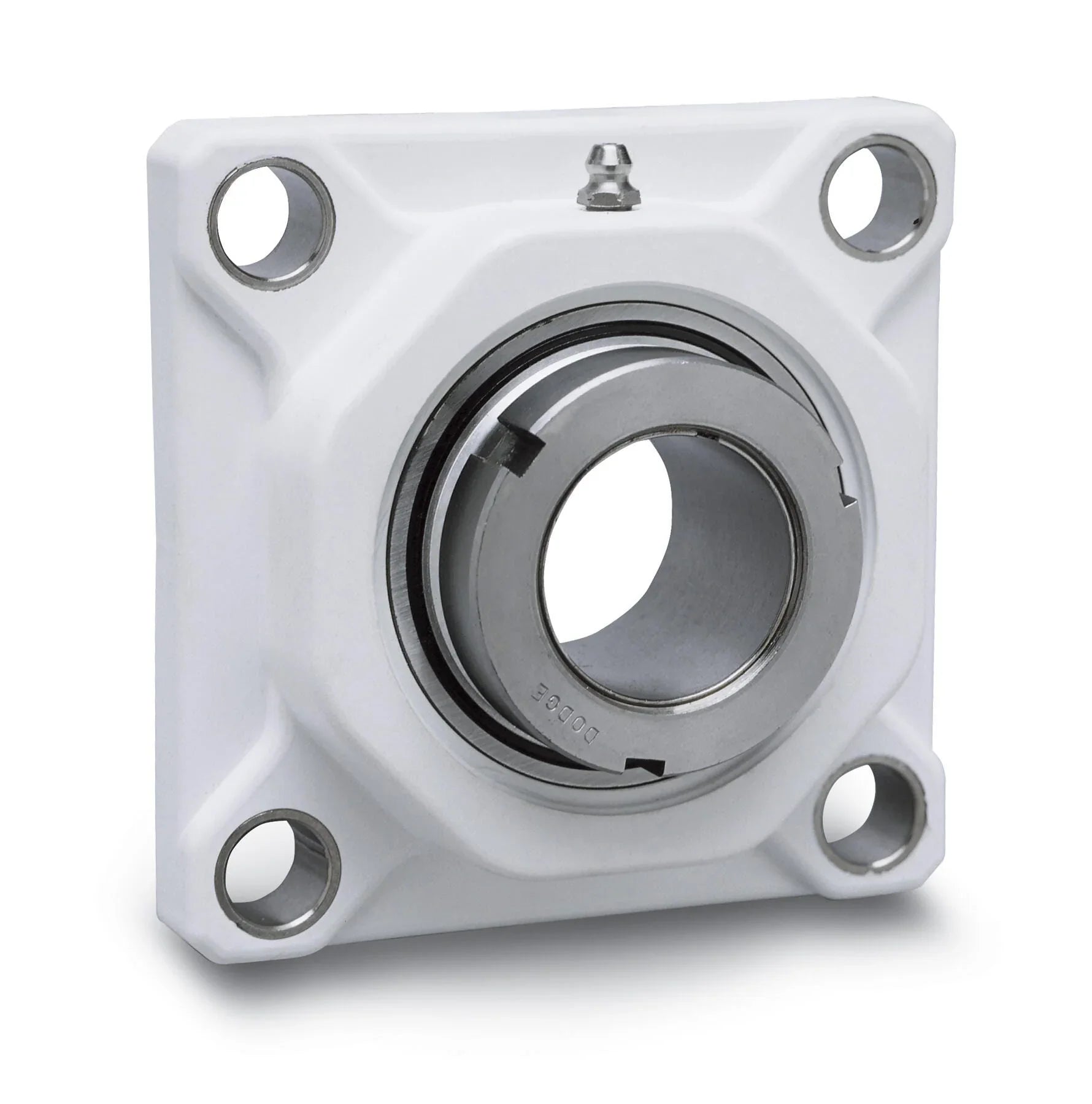

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
129719 - Dodge - F4B-GTEZ-115-PCR
F4B-GTEZ-115-PCR
Technical Specifications
| Bearing Type | Ball |
| Bolt to Bolt (Max) | 4.3700 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 4.3700 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.8600 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/washdown/ez_kleen/f4b_gtei_asmtab.prj&varset={SERIES=210},{SS=1-15/16},{PN=129719},{DESCRIPTION=F4B-GTEZ-115-PCR},{A=1-55/64},{B=5-5/8},{C=2-1/4},{D=4-3/8},{F=5/8},{H=49/64},{J=39/64},{L=2-15/16},{Z=2-7/32}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 7891 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Housing Construction | Solid |
| Housing Material | Polymer |
| Housing Type | Four-Bolt Flange (Square) |
| Insert Material | Plated Steel |
| Lubrication | Grease |
| Maximum Speed | 3840 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 1.9375 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 5213 |
| Static Load Capacity (Unit) | POUND_FORCE |
